52 23 401 Replacing cover for left or right Child seat

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear seat, (sedan) refer to 52 23 511 ADDITIONAL WORK WITH INTEGRATED CHILD SEATS or (touring) refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING) .

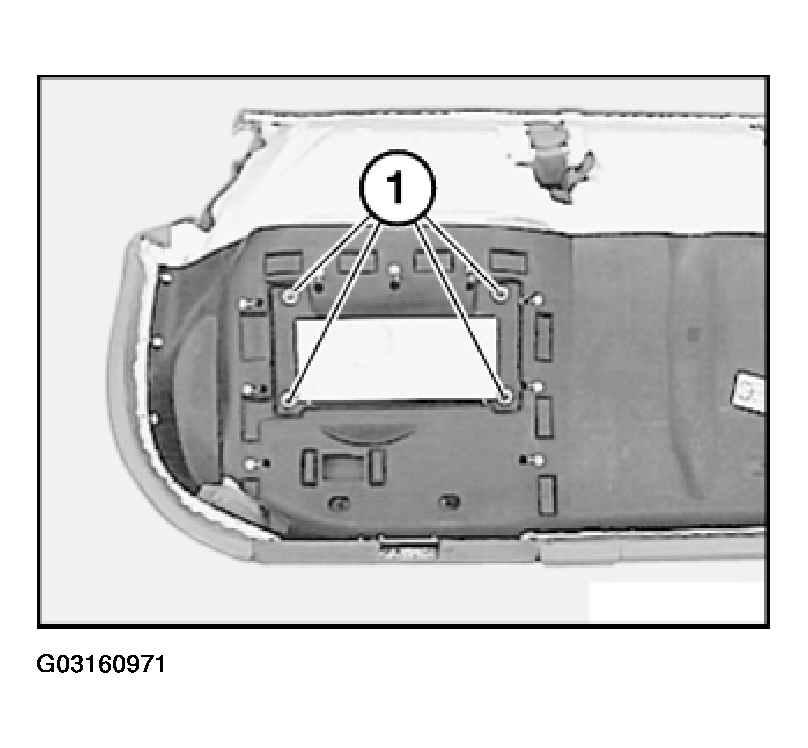

Unfasten nuts (1) and pull Child seat off rear seat.

Fig 1: Removing Child Seat From Rear Seat

G03160971

Courtesy of BMW OF NORTH AMERICA, INC.

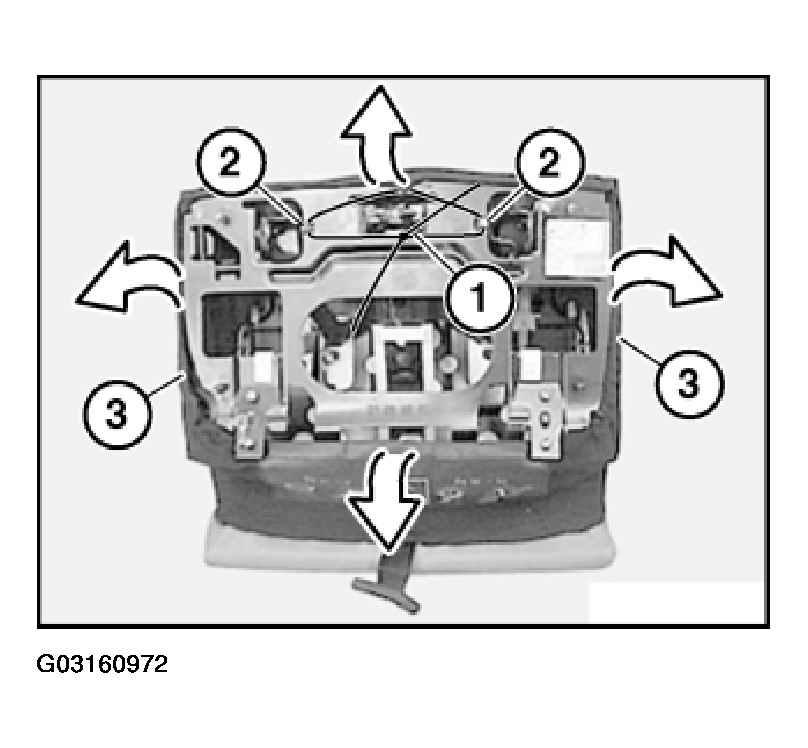

Untie steel cable (1) and lift out of lugs (2). Lift out cover (3) on all sides.

Fig 2: Disconnecting Steel Cable

G03160972

Courtesy of BMW OF NORTH AMERICA, INC.

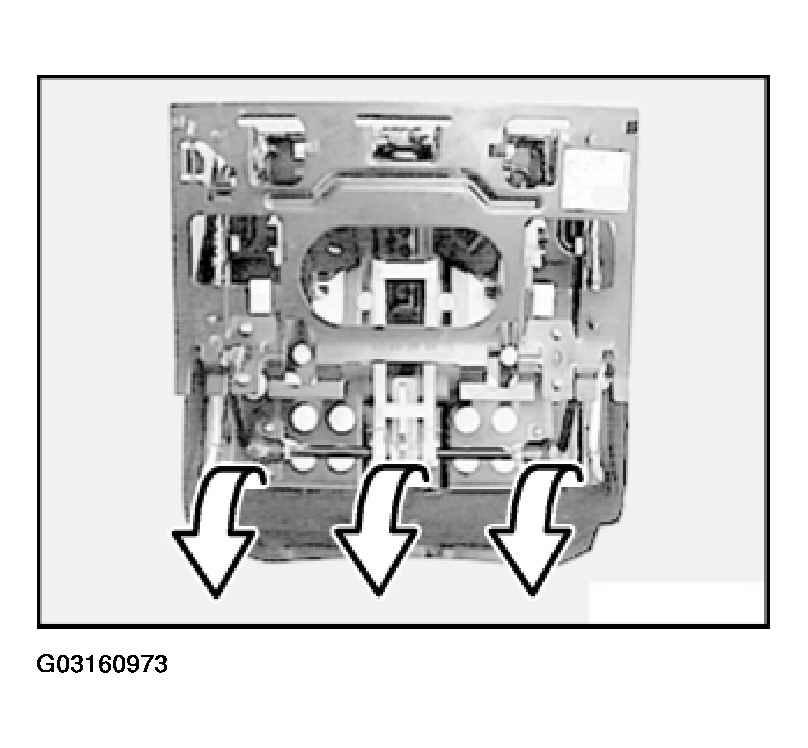

Unhook cover at front.

Fig 3: Unhooking Cover

G03160973

Courtesy of BMW OF NORTH AMERICA, INC.

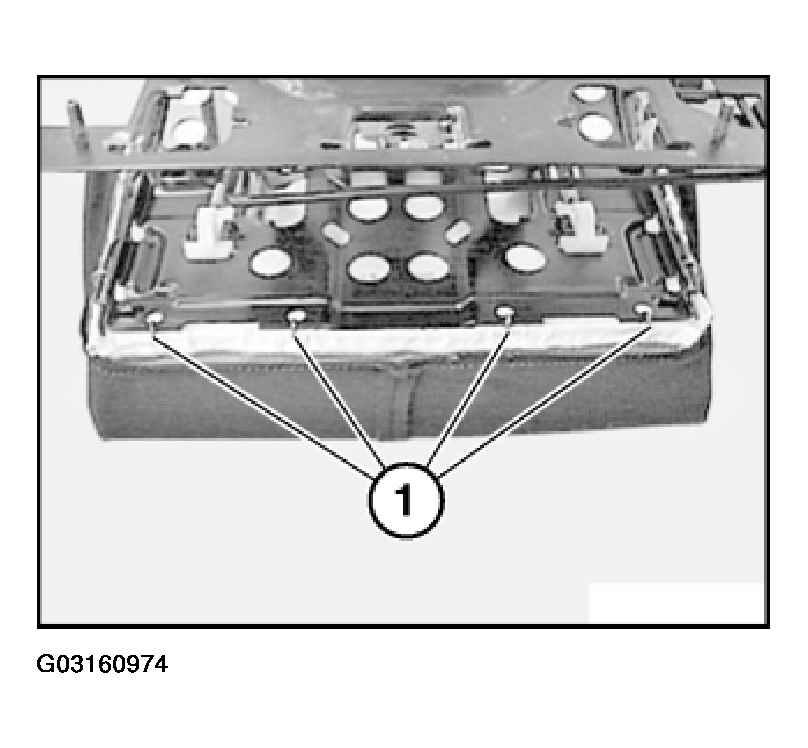

Unfasten rear clips (1).

Fig 4: Removing Rear Clips

G03160974

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new clips (1) with special tool 52 0 050.

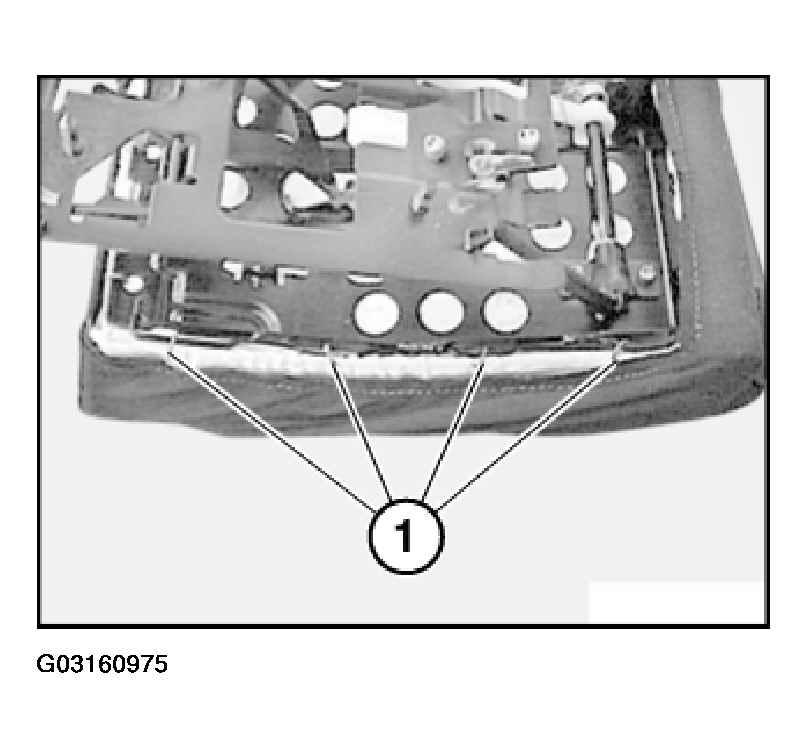

Unfasten left/right clips (1) and take cover off Child seat.

Fig 5: Removing Side Clips & Removing Child Seat Cover

G03160975

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new clips (1) with special tool 52 0 050.

Remove all trim wires from cover.

Cut new cover and insert the trim wires.
