51 37 000 Removing and installing complete power window lifter from rear left and right sides

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door window, refer to 51 34 171 REPLACING REAR LEFT OR RIGHT DOOR WINDOW

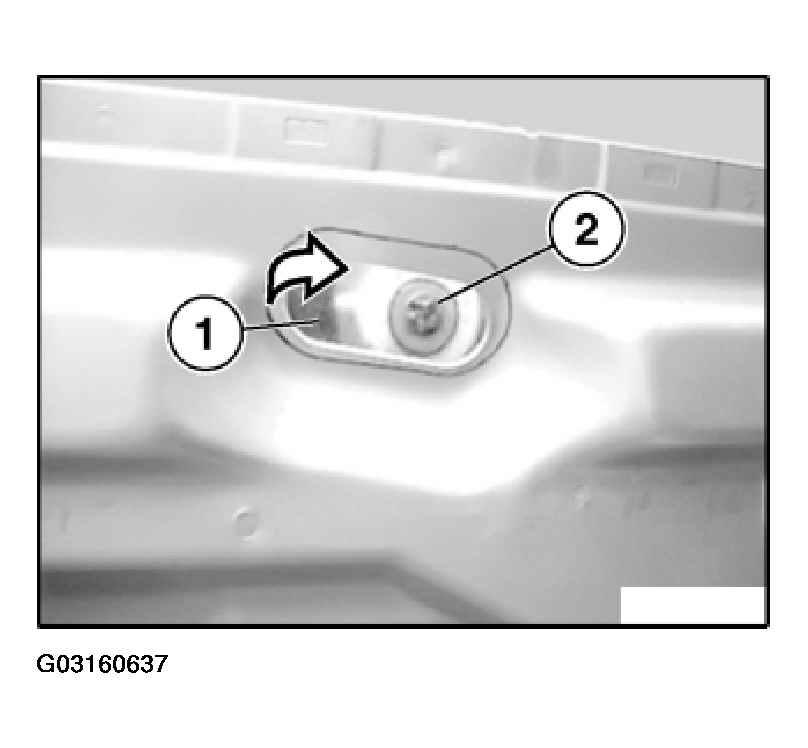

Detach sealing sheet (1) and release screw (2).

Fig 1: Removing Sealing Sheet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit new sealing sheet (1) (leakage).

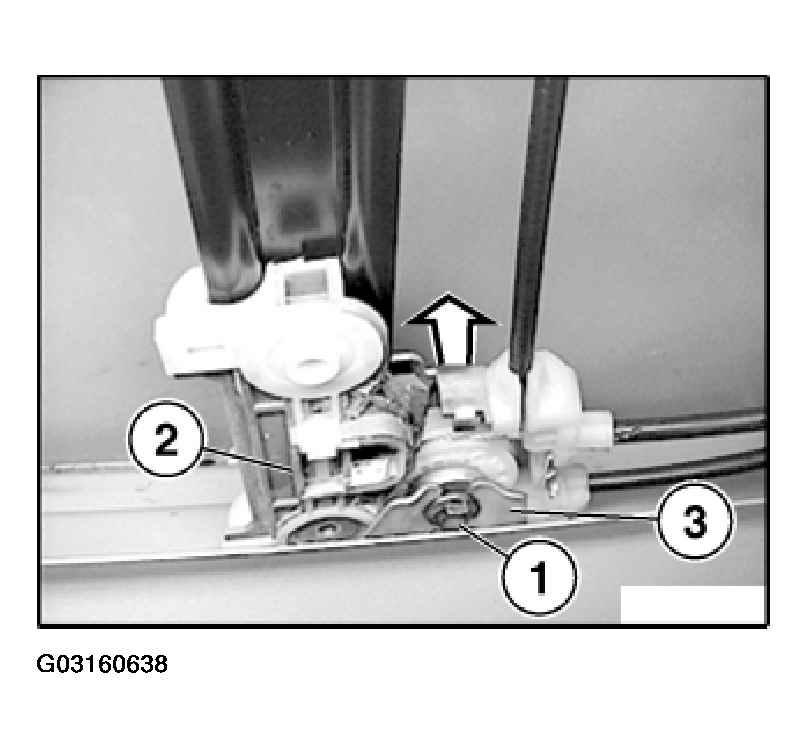

Release screw (1) and lift power window (2) out of mount (3).

Fig 2: Removing Power Window Lifter From Mount

Courtesy of BMW OF NORTH AMERICA, INC.

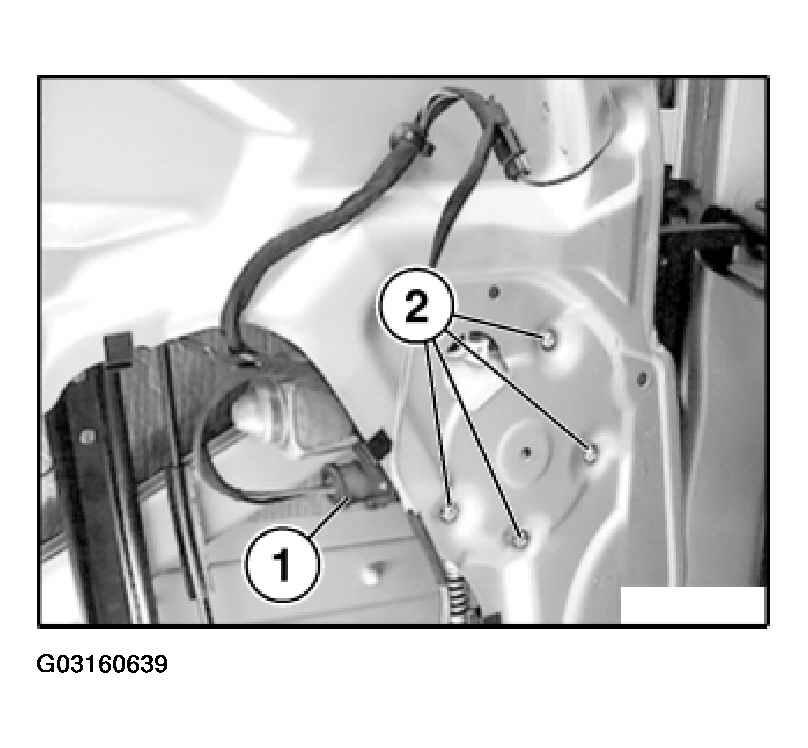

Unlock connector (1) and remove. Unfasten screws (2).

Fig 3: Removing Power Window Lifter Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

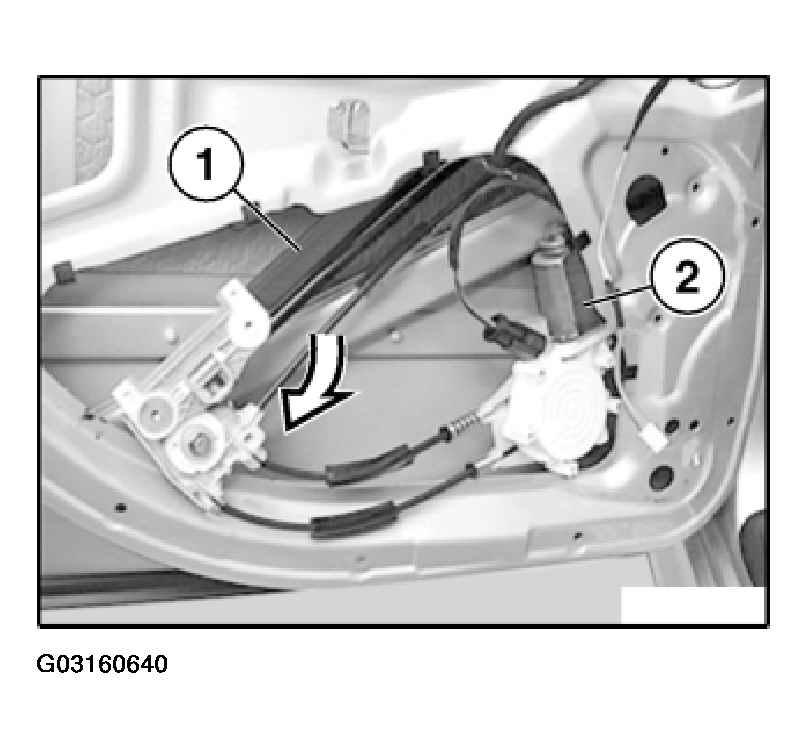

Remove power window lifter (1) with flat motor (2) from rear door.

Fig 4: Removing Power Window Lifter

Courtesy of BMW OF NORTH AMERICA, INC.
