51 42 001 Replacing left or right rear door trim

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

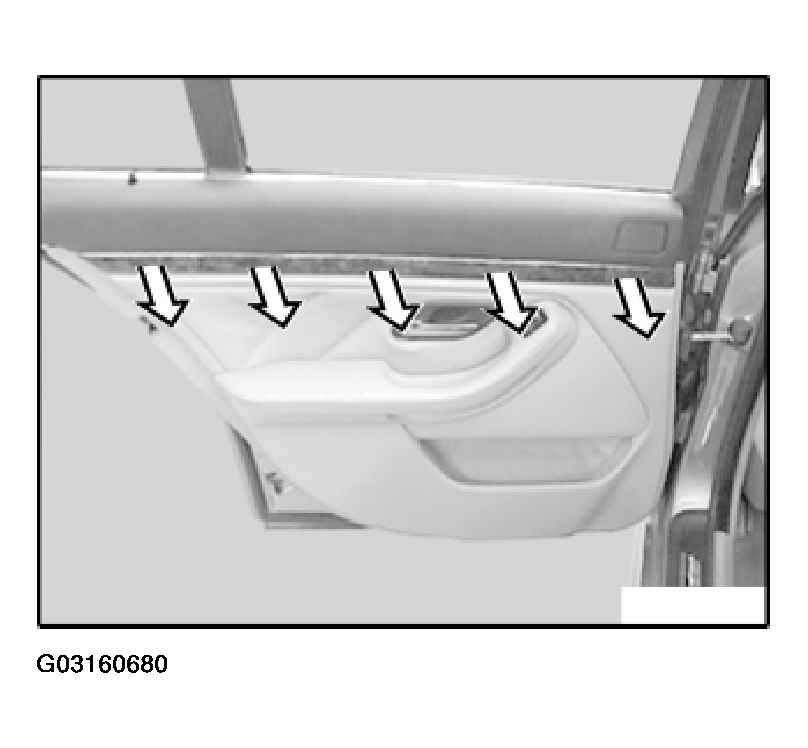

Pull wooden strip backwards to remove.

Fig 1: Removing Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

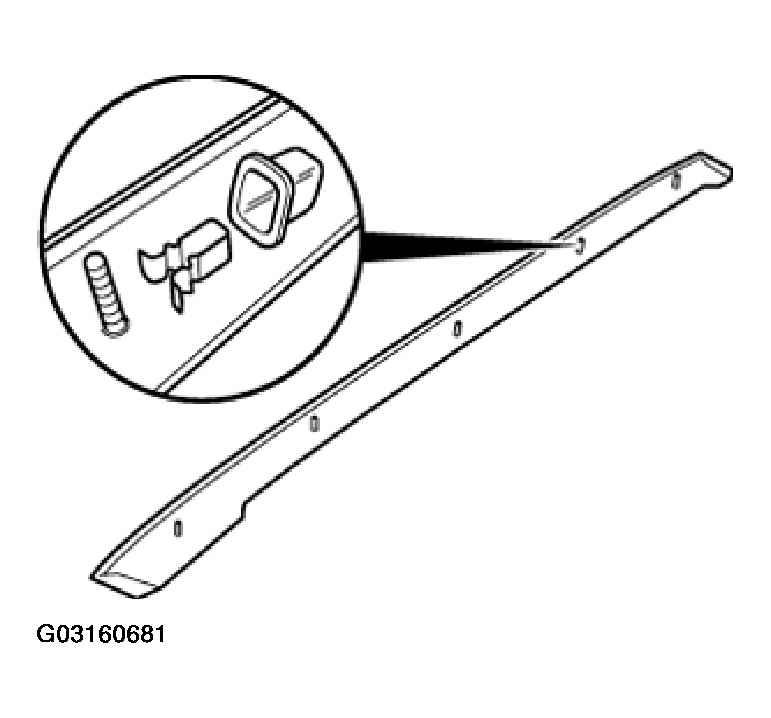

If necessary, replace damaged clips and/or grommets for wooden strip.

Fig 2: Replace Any Damaged Clips And/Or Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Version with loudspeaker:

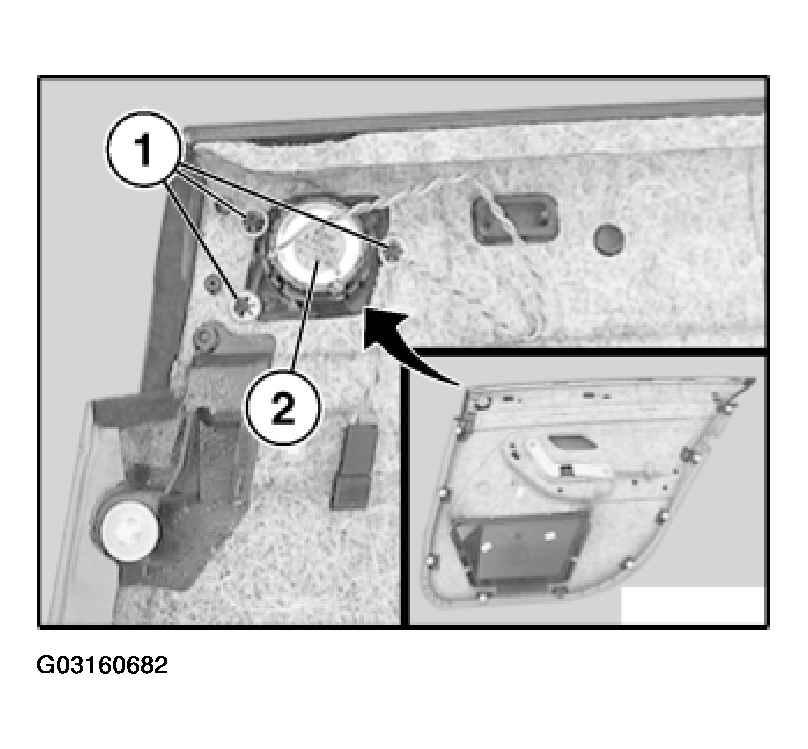

If necessary, pull off retaining disks (1) and remove loudspeaker (2).

Fig 3: Removing Loudspeaker

Courtesy of BMW OF NORTH AMERICA, INC.
