51 32 170 Removing and installing/replacing front left or right door window

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove outer window recess cover strip, refer to 51 21 300 REMOVING AND INSTALLING OR REPLACING WINDOW RECESS COVER STRIP ON OUTSIDE OF LEFT OR RIGHT FRONT DOOR .

Adjust door window, refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW .

Version with side airbag in front door:

IMPORTANT: Remove and install/replace airbag module on front left or right door, refer to RESTRAINTS article. See SIDE AIR BAG MODULE

Twist door window backwards and lift out from top.

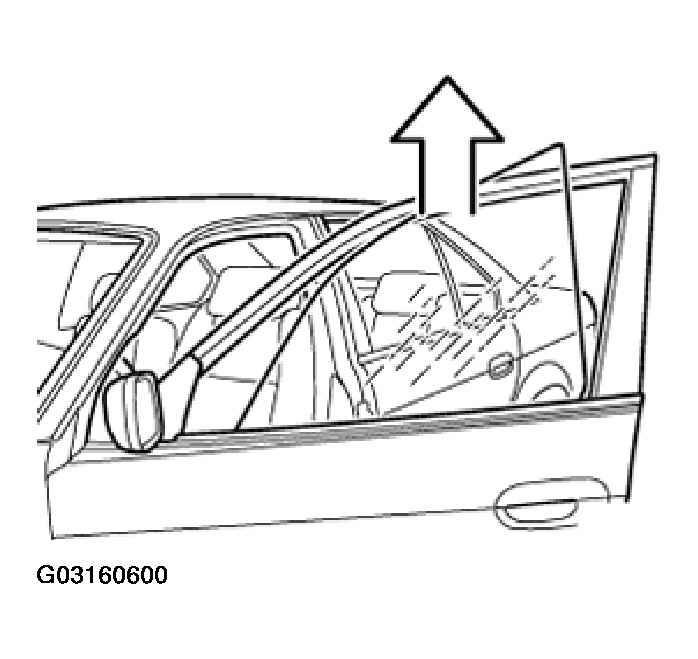

Fig 1: Removing Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjustment of the door window is also described in 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW .
