51 21 300 Removing and installing or replacing window recess cover strip on outside of left or right front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

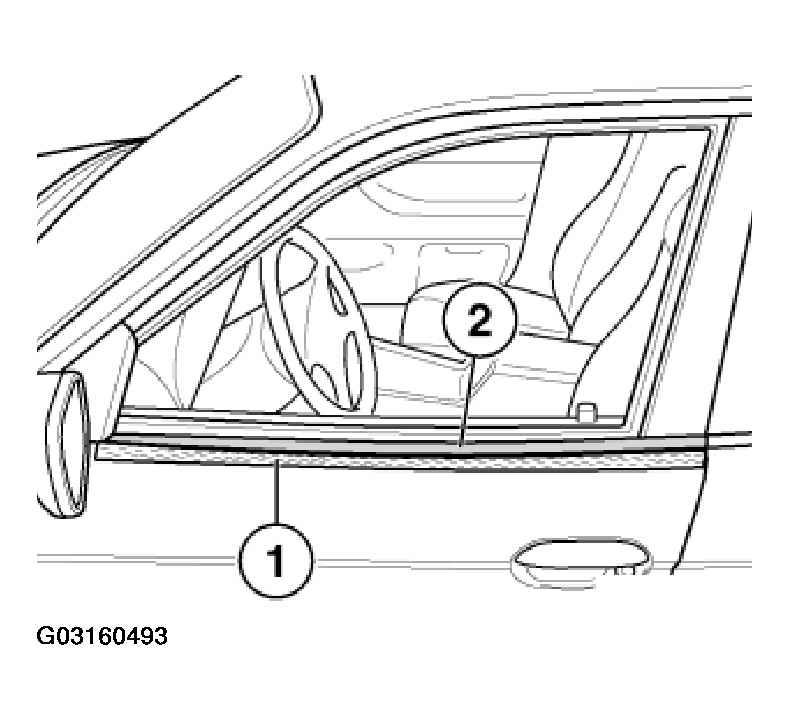

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Fig 1: Attaching Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

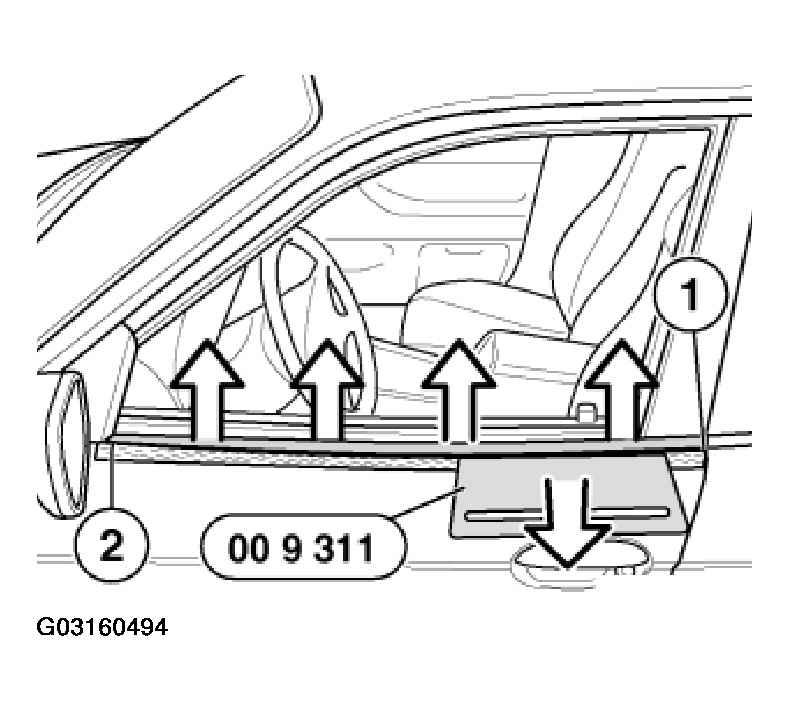

Using special tool 00 9 311, starting at back, (1) and moving to front (2), lift out window cavity cover strip.

Fig 2: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat cover strip with anti-friction agent.

Cover strip must form flush seal with rear edge of door.

Only replace:

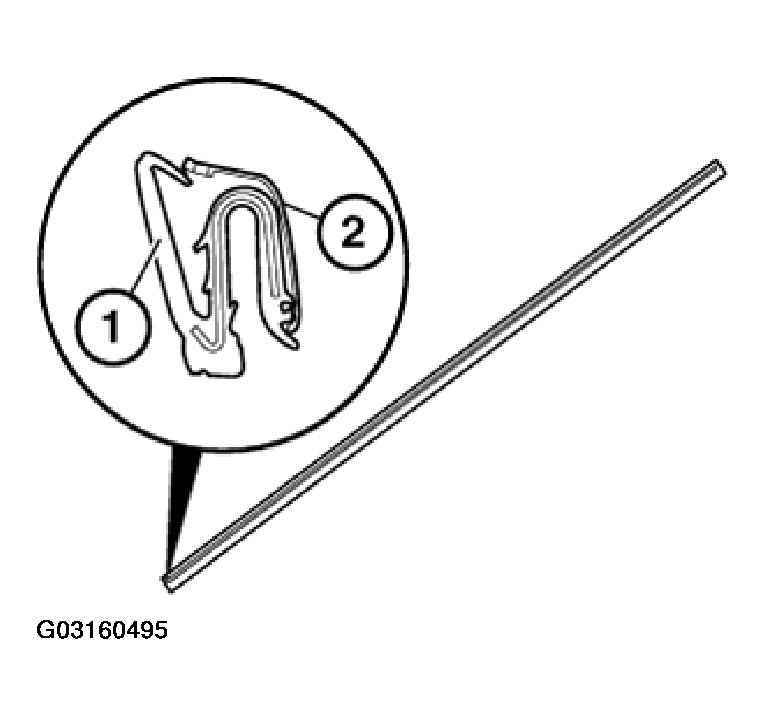

Remove gasket (1) from chrome strip (2).

Fig 3: Removing Gasket From Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
