51 33 000 Removing and installing electric window regulator in left or right front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove and install/replace airbag module on front left or right door, refer to RESTRAINTS article. See SIDE AIR BAG MODULE

Remove window in front door, refer to 51 32 170 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT DOOR WINDOW

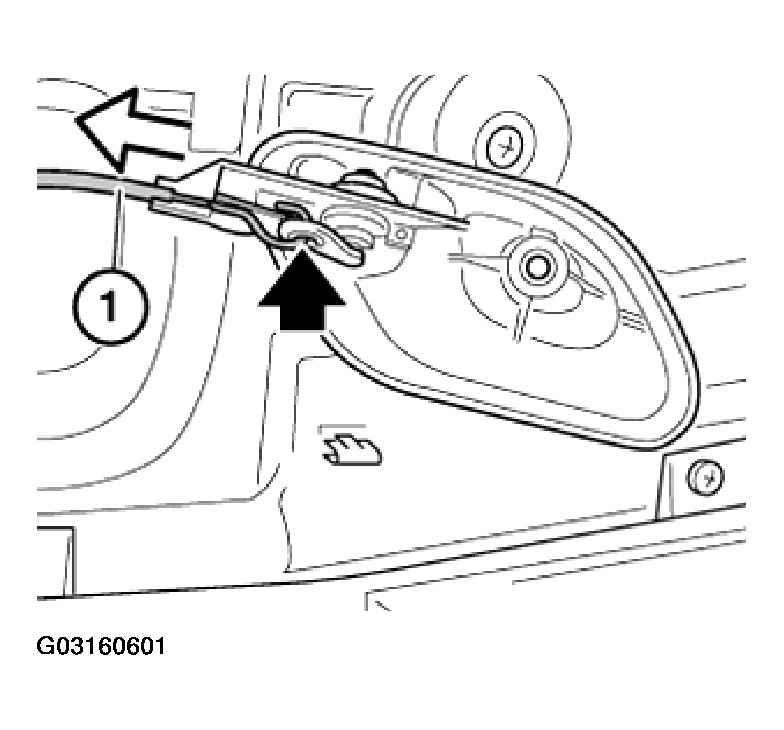

Pull Bowden cable (1) backwards, detach from door handle and remove.

Fig 1: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

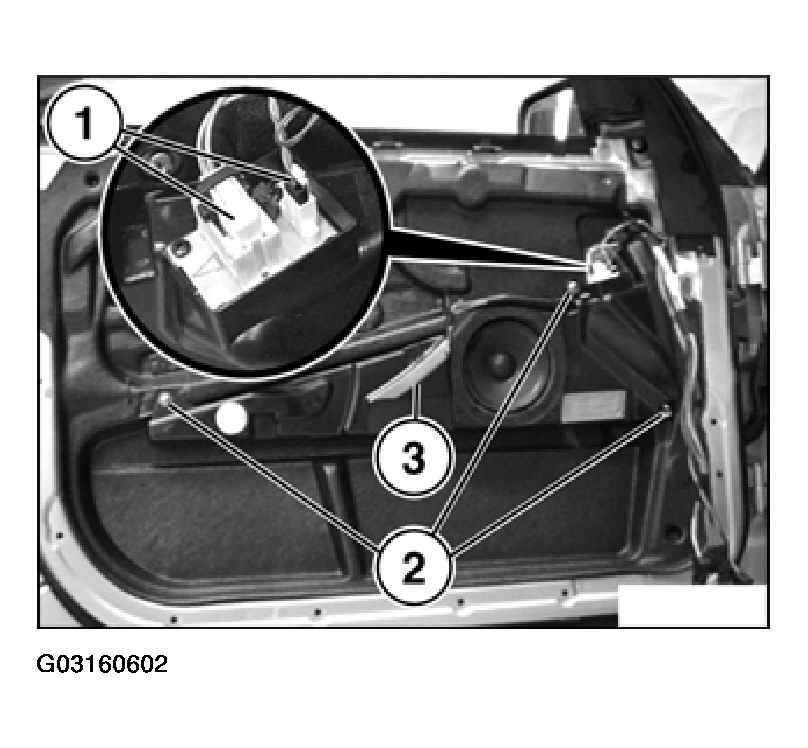

Remove connector (1).

Unfasten screws (2) and remove loudspeaker box (3).

Fig 2: Removing Loudspeaker Box

Courtesy of BMW OF NORTH AMERICA, INC.

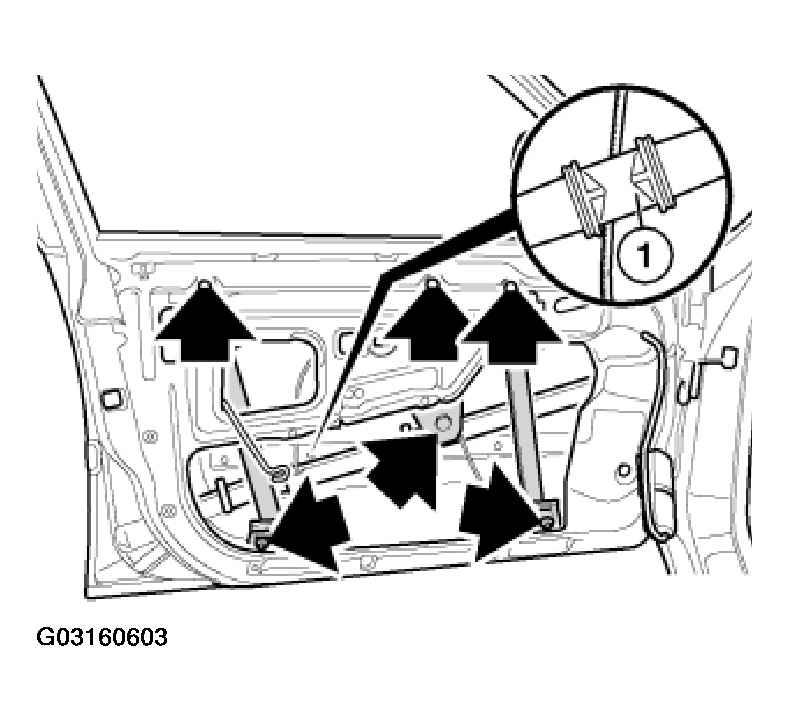

Remove connector from window regulator drive unit.

Pull off guide (1).

Unfasten screws (only loosen lower 3 screws) and remove complete cable on window regulator.

Fig 3: Removing Connector & Cable From Window Regulator Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

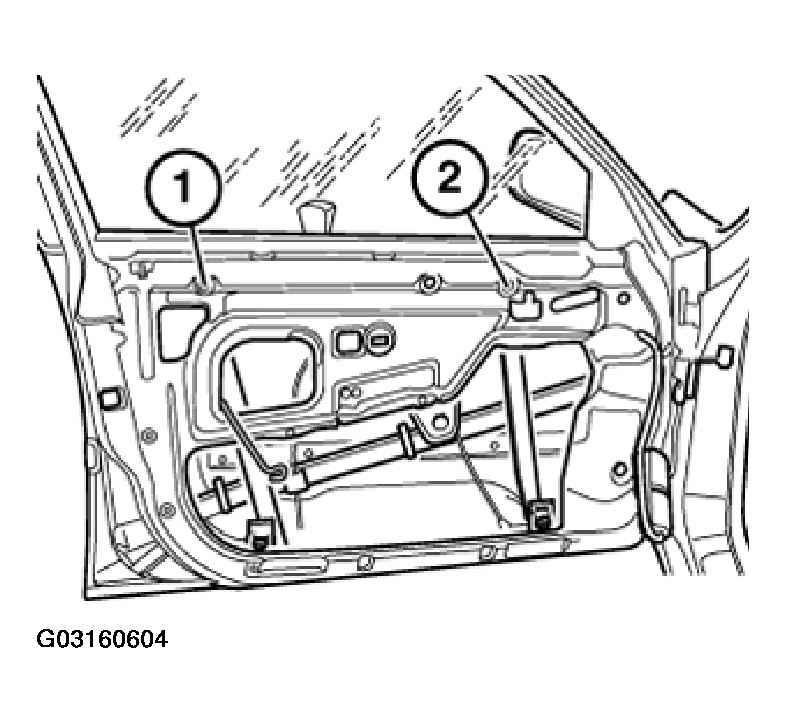

Install window regulator in locating bracket and install all screws loosely.

Tighten down screws (1) and (2). Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 4: Installing Window Regulator In Locating Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

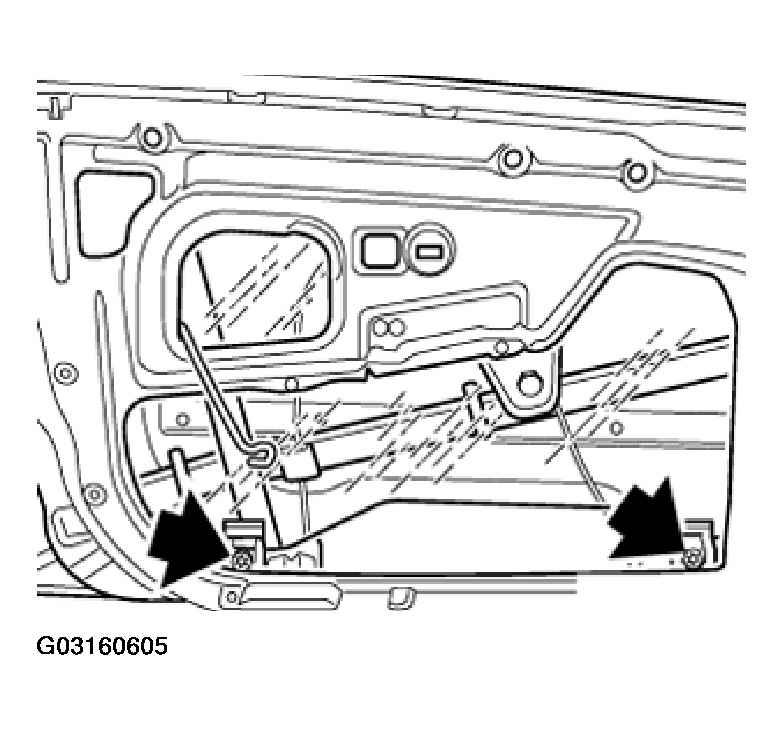

Install door window in clamps of window regulator and adjusting door window. Refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW .

Fig 5: Installing Door Window To Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

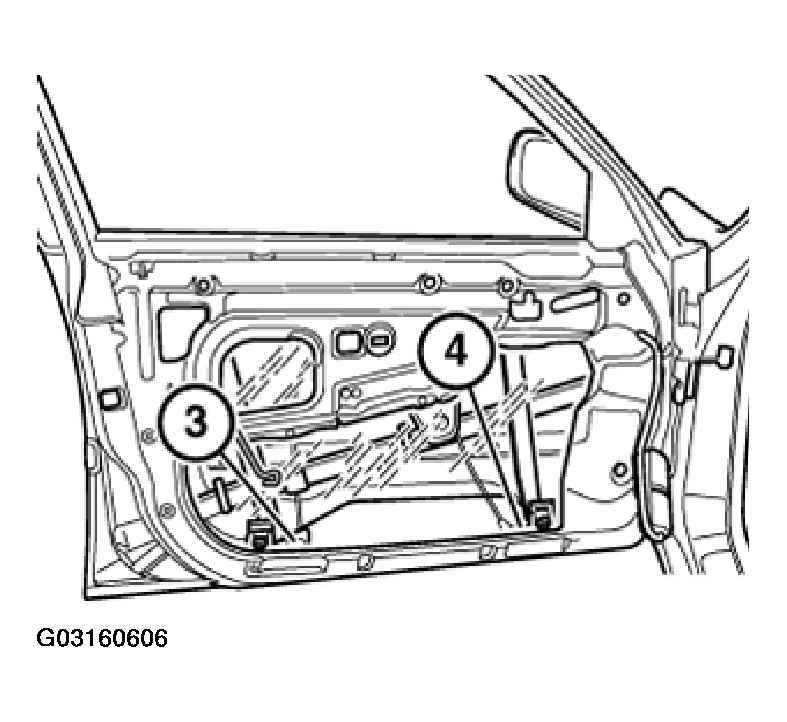

Lower door window down to stop.

Tighten down screws (3) and (4).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 6: Tightening Window Regulator Screws (3) & (4)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

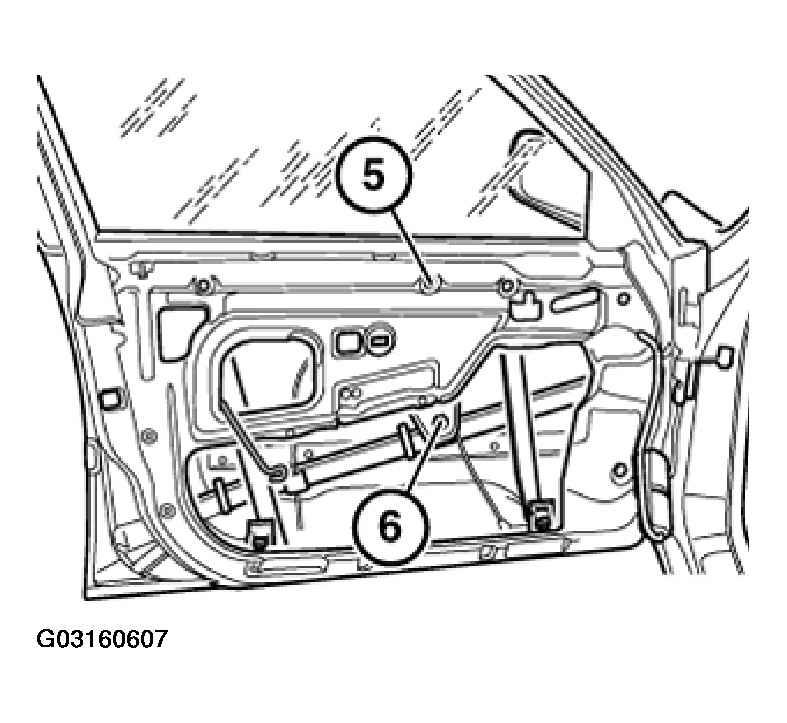

Close door window firmly.

Tighten down screws (5) and (6).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 7: Tightening Window Regulator Screws (5) & (6)

Courtesy of BMW OF NORTH AMERICA, INC.
