51 24 145 Removing and installing/replacing button for trunk lid actuation

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower trim power from trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID .

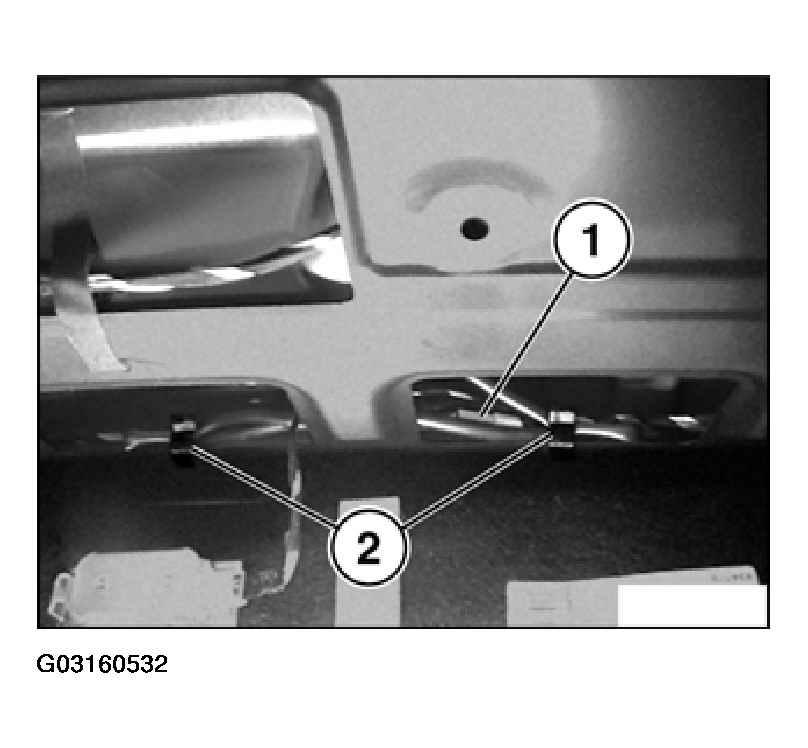

Pull out connector attachment (1) for line in cable bracket (2).

Fig 1: Pulling Out Connector Attachment For Line In Cable Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

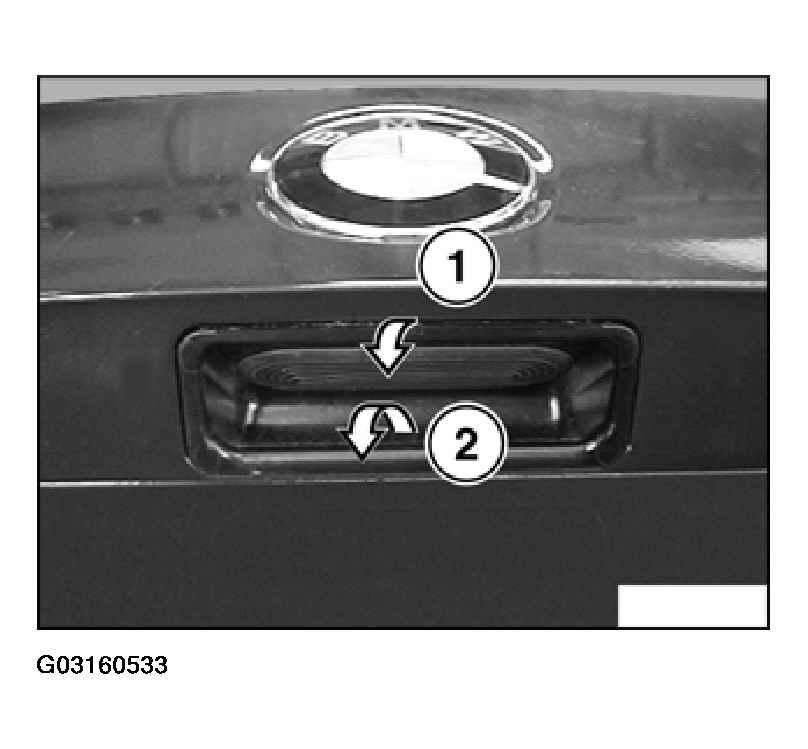

Lift out top button (1) and pull upwards (2) to remove.

Fig 2: Removing Top Button

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

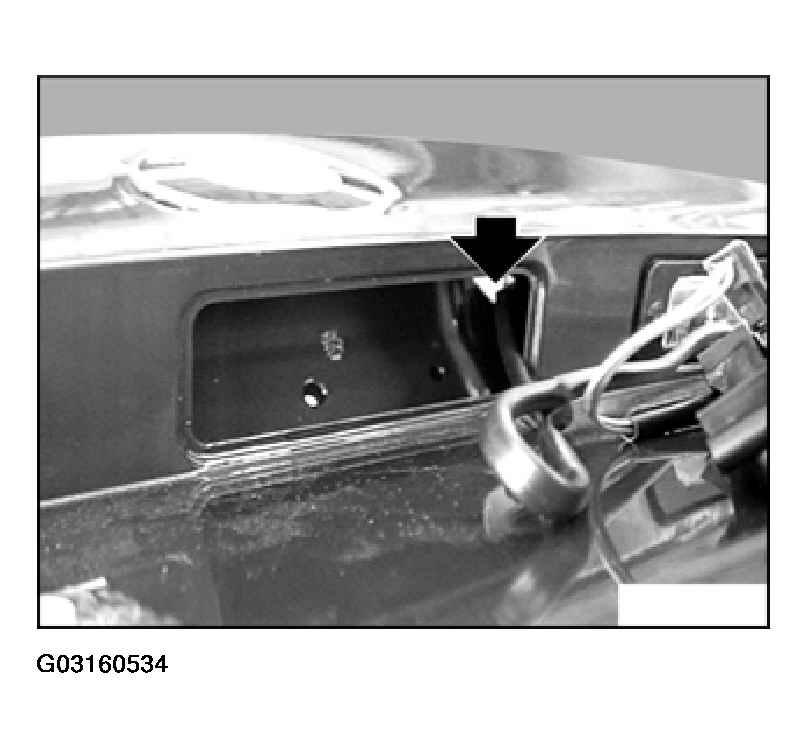

Insert lines through right bore.

Fig 3: Inserting Lines Through Right Bore

Courtesy of BMW OF NORTH AMERICA, INC.

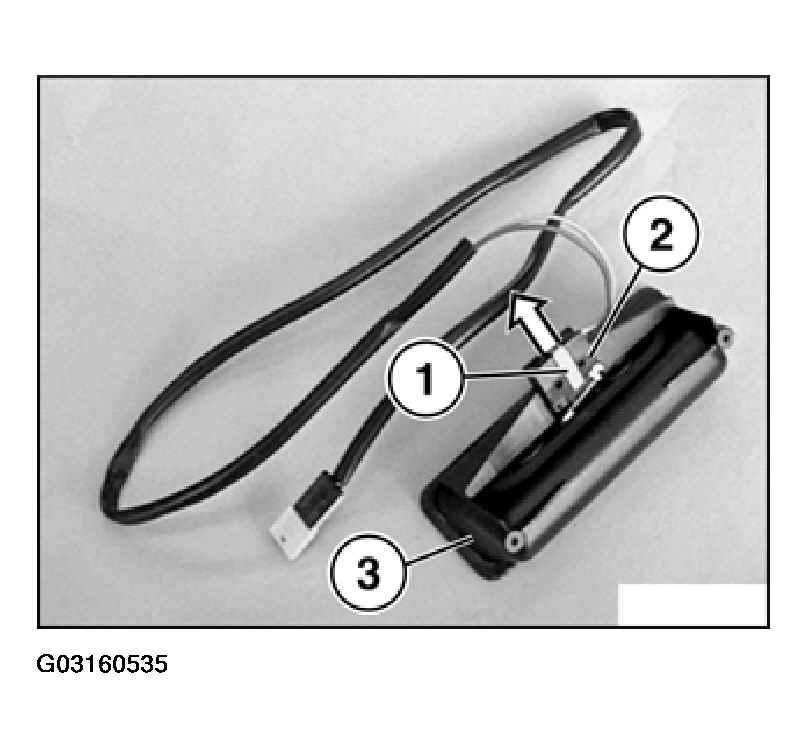

Pull off clip (1) and remove micro-switch (2). Pull off seal (3).

Fig 4: Removing Micro-Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.
