51 49 005 Removing and installing/replacing trim for lower trunk lid

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Lift out expanding rivets (1).

Lift out finisher (2) and unfasten screw.

Pull trim downwards to unclip.

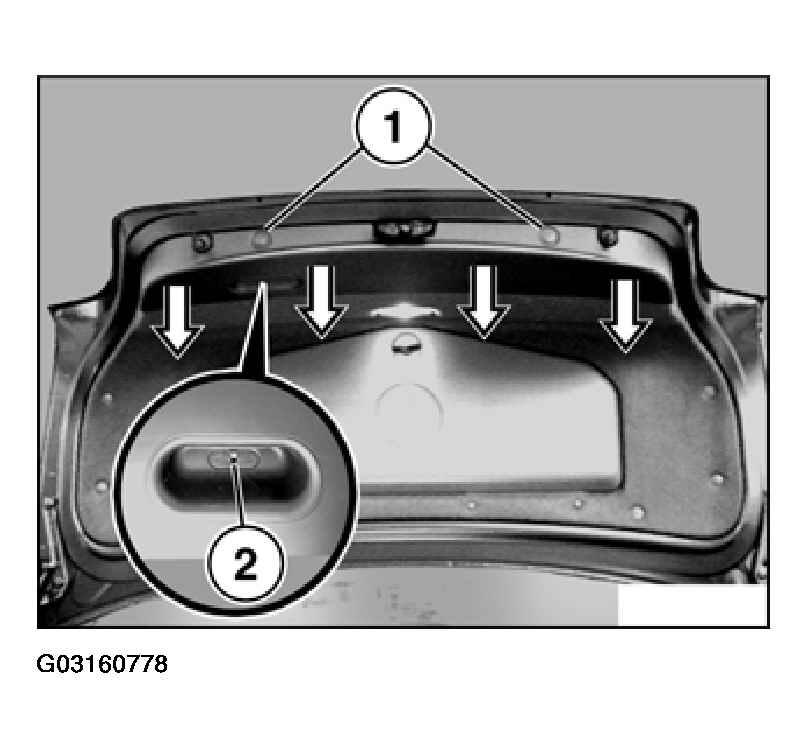

Fig 1: Removing Trim For Lower Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

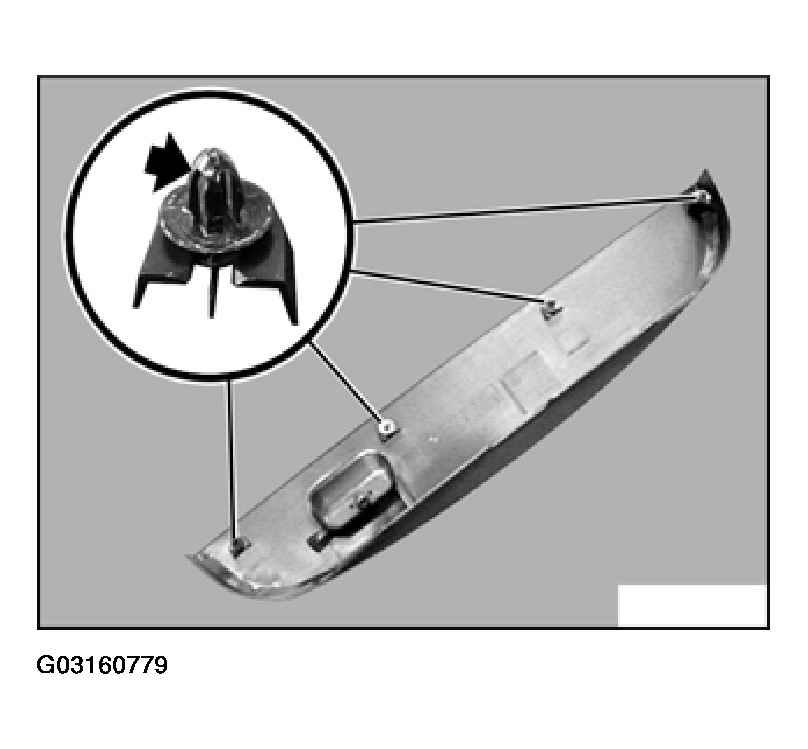

Fig 2: Replace Any Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
