51 24 100 Removing and installing/replacing trunk lid lock (upper section of trunk lid lock)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower trim power from trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID .

Lift out actuating rod (1).

Disconnect plug connections (2).

Unfasten screws and remove upper section of trunk lid lock.

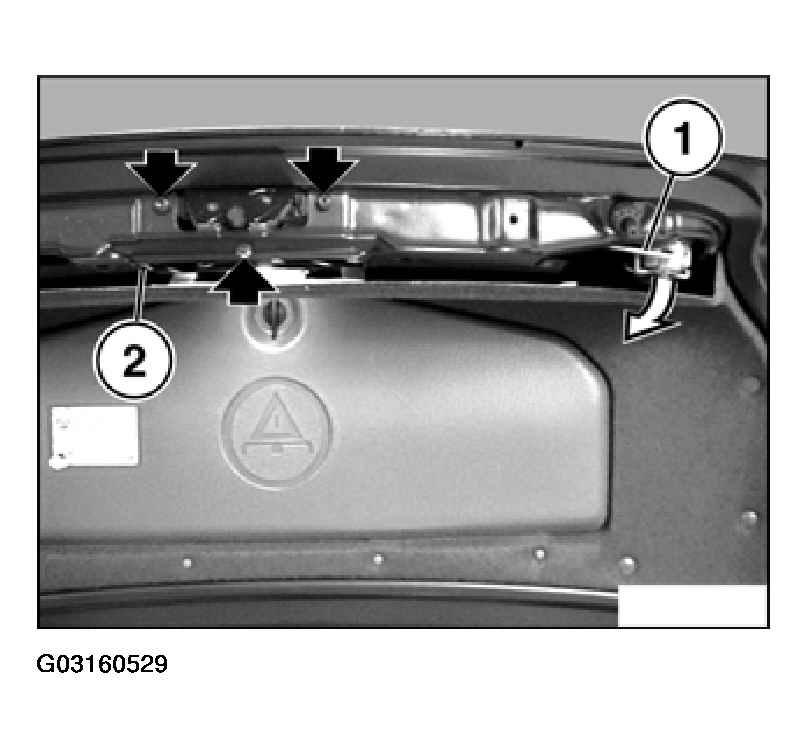

Fig 1: Removing Upper Section Of Trunk Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.

Adjust upper section of trunk lid lock as necessary.

Only replace:

Unfasten screws and remove actuator drive (1).

Lift out actuating rod (2).

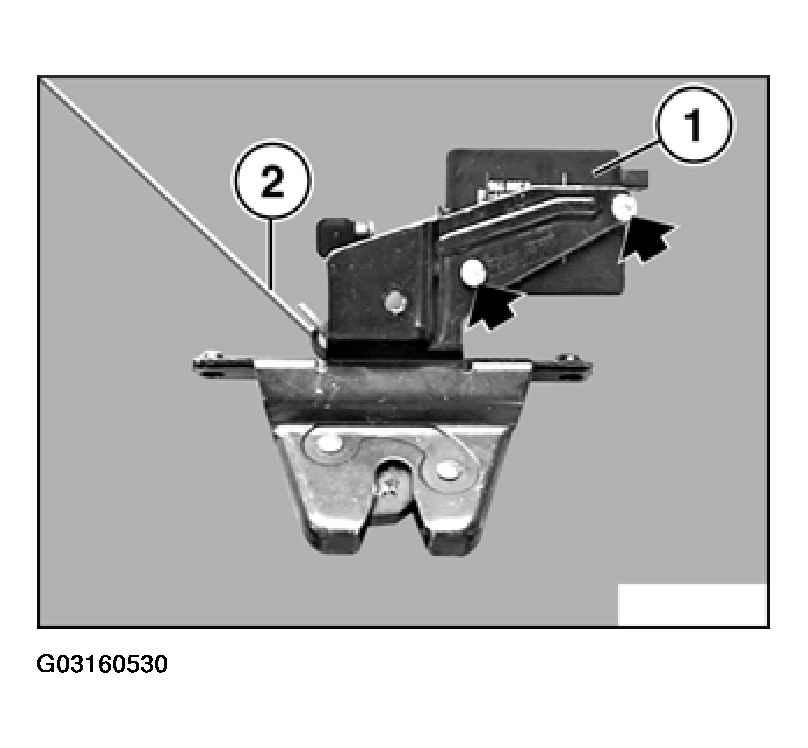

Fig 2: Removing Actuator Drive & Actuating Rod

Courtesy of BMW OF NORTH AMERICA, INC.
