51 24 050 Removing and installing/replacing lock (locking cylinder) for trunk lid set

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for bottom of trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID .

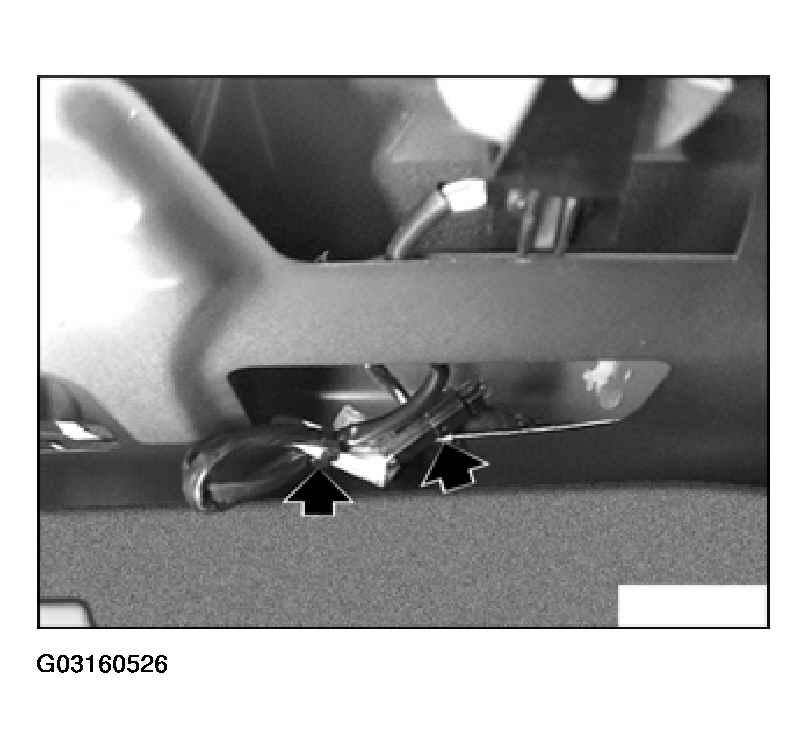

Unfasten cable tie and disconnect plug connection.

Fig 1: Unfastening Cable And Disconnect Trunk Locking Cylinder Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

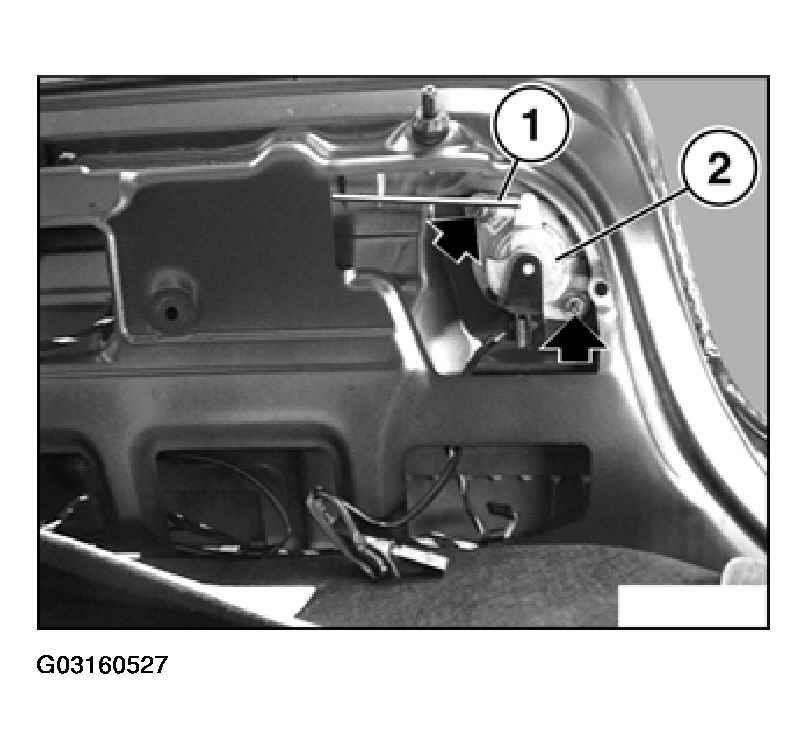

Lift out actuating rod (1).

Unfasten nut and remove connection (2).

Fig 2: Removing Trunk Locking Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check that actuating rod (1) is correctly seated.

Locking section (2) must be fitted to center of body aperture.

Installation:

Perform function check with trunk lid open.

Only replace:

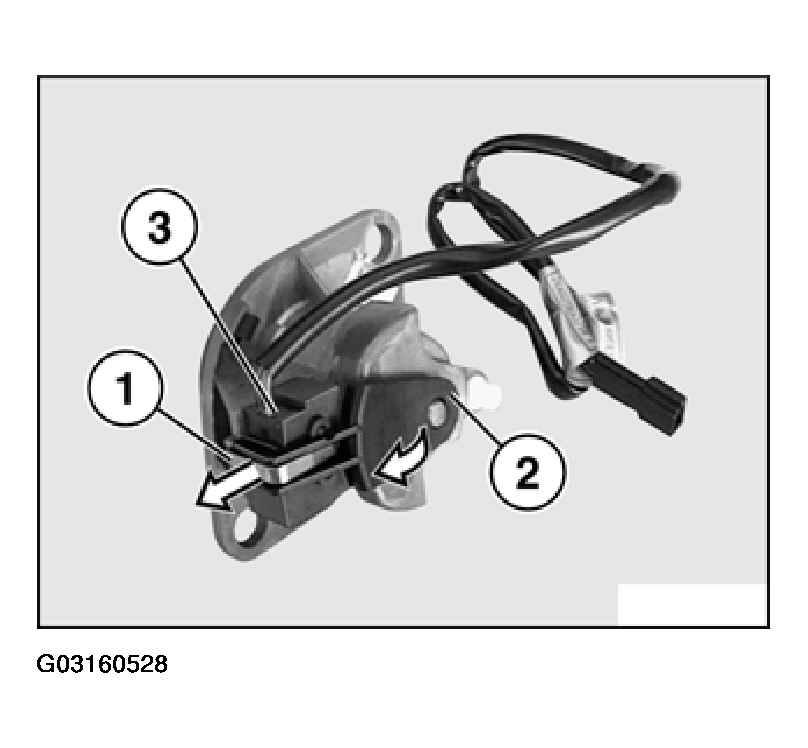

Remove clip (1) lift out bracket (2) and remove micro-switch (3).

Fig 3: Removing Micro-Switch

Courtesy of BMW OF NORTH AMERICA, INC.
