51 49 000 Removing and installing/replacing trim for trunk lid (top)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for bottom of trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID .

Lift off cover caps (1) and loosen screws.

Open tool box, lift out catch band and lift tool box upwards to remove.

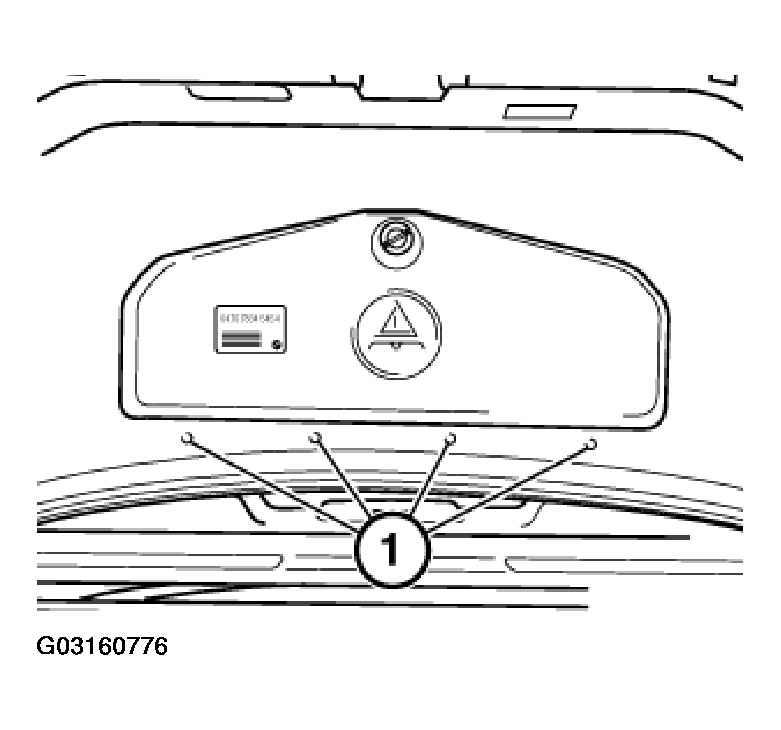

Fig 1: Removing Tool Box Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out luggage compartment light (1).

Unfasten clips (2) and remove trim for trunk lid.

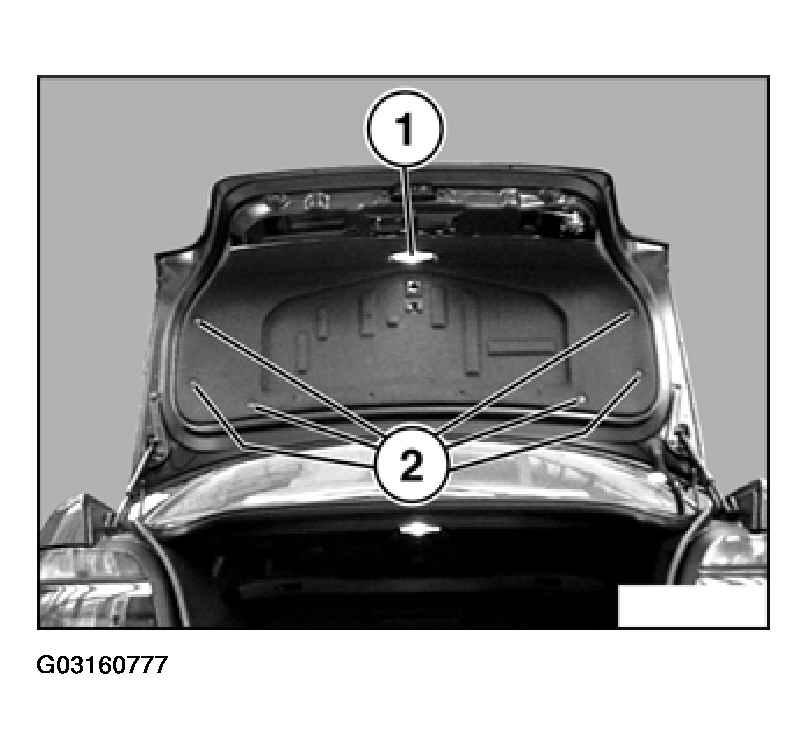

Fig 2: Removing Trim For Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.
