51 22 351 Replacing window cavity gasket on inner left or right rear door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install window cavity trim on inside of rear door, refer to 51 22 330 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON INSIDE REAR DOOR .

Pull window cavity gasket (1) off window cavity cover strip (2).

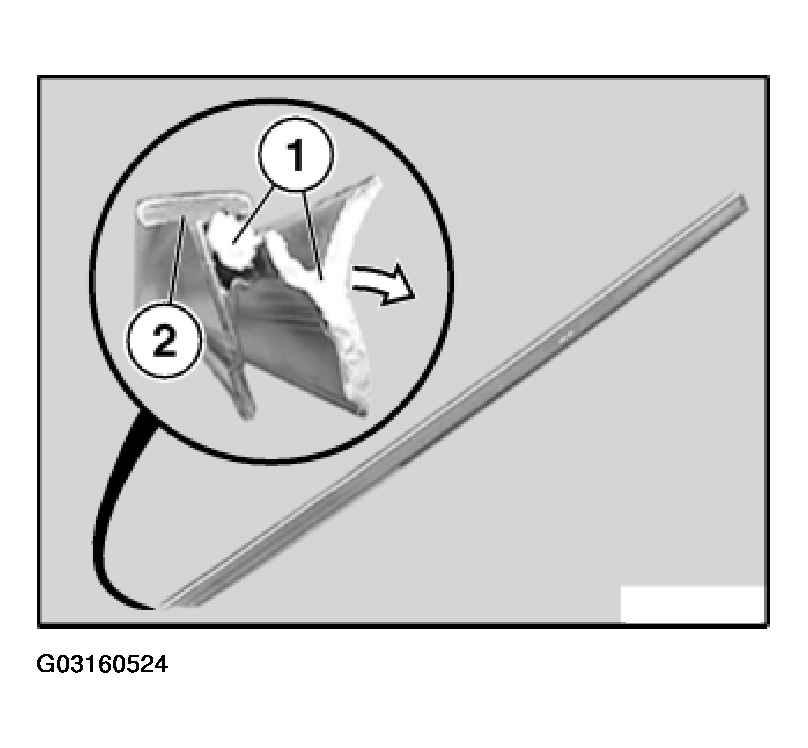

Fig 1: Removing Inner Window Cavity Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity seal (1) for assembly with rubber protection coating agent.
