51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Beginning from front, raise clips with special tool 00 9 321 (folding leg).

Pull window cavity trim (beginning at front) up out of clips.

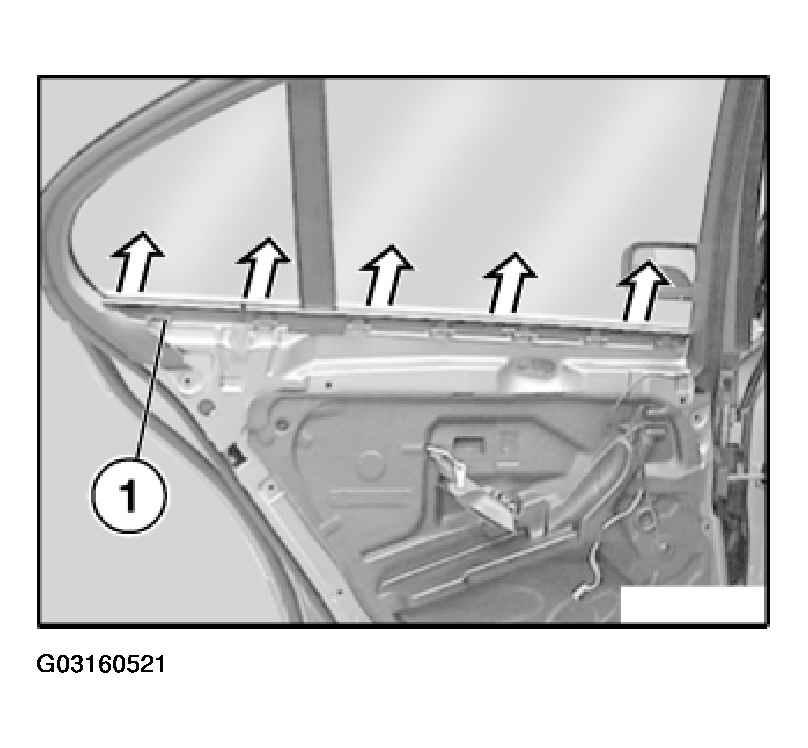

Fig 1: Removing Window Cavity Cover Strip On Inside Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The rear clip (1) cannot be removed due to windshield adhesive.

If necessary, remove clips (1) and attach to inner door panel.

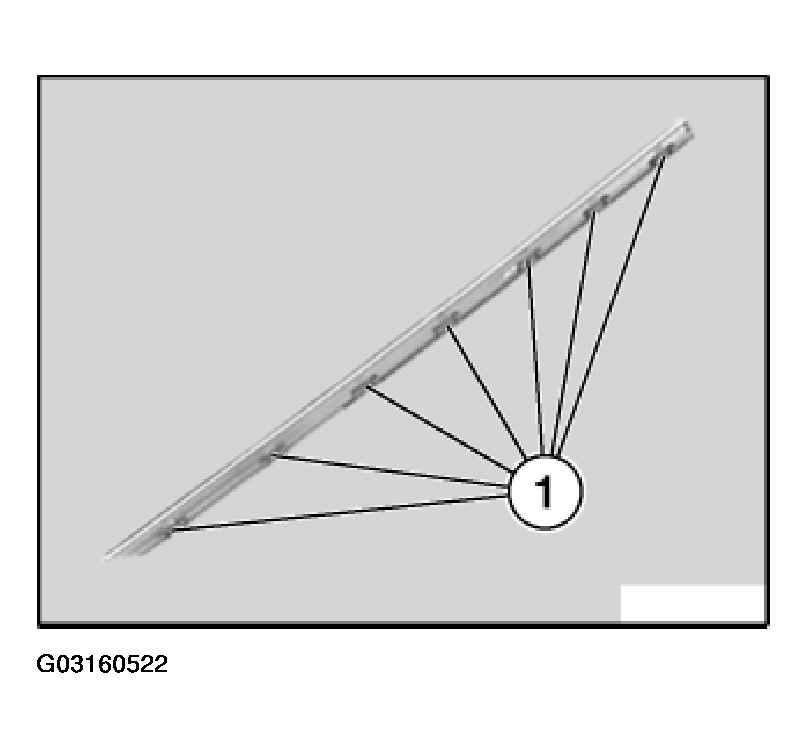

Fig 2: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove faulty clips (1) from inner door panel (2) and replace.

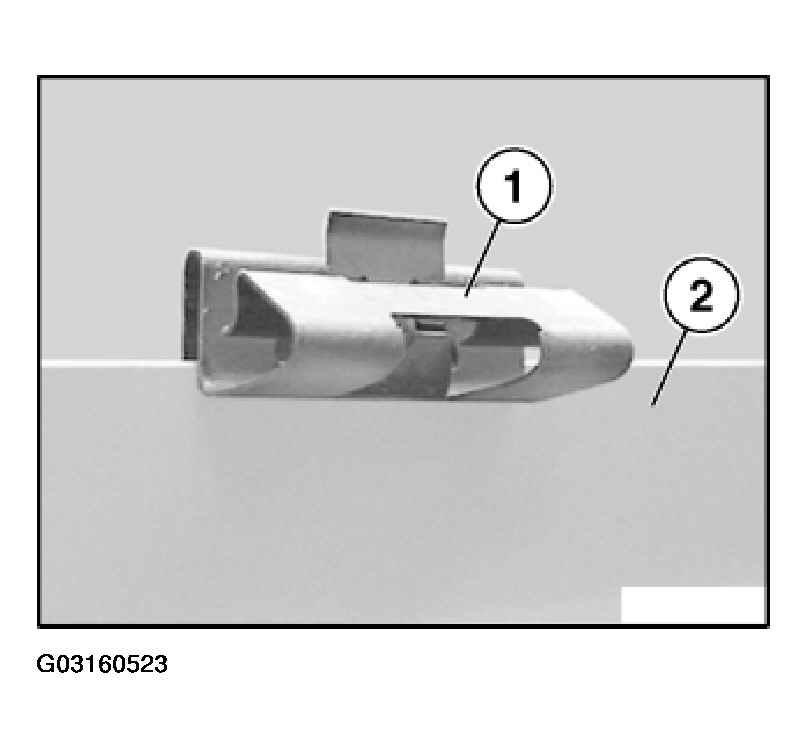

Fig 3: Replace Any Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.
