51 12 435 Replacing left or right body molding from sides of rear bumper

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove center body molding from rear bumper, refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER

Version without Park Distance Control (PDC):

First unclip back of body molding (1), then side (2) with special tool 00 9 321 (folding strut) and pull backwards at an angle to remove.

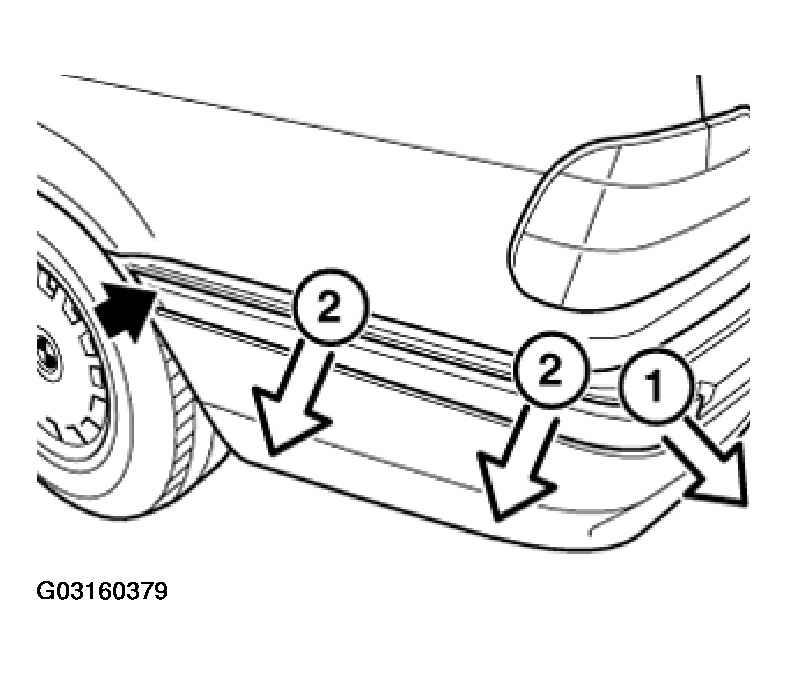

Fig 1: Removing Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert body molding at front, then clip into place.

Version with Park Distance Control (PDC):

Unclip body molding, unfasten ultrasonic converter and remove.

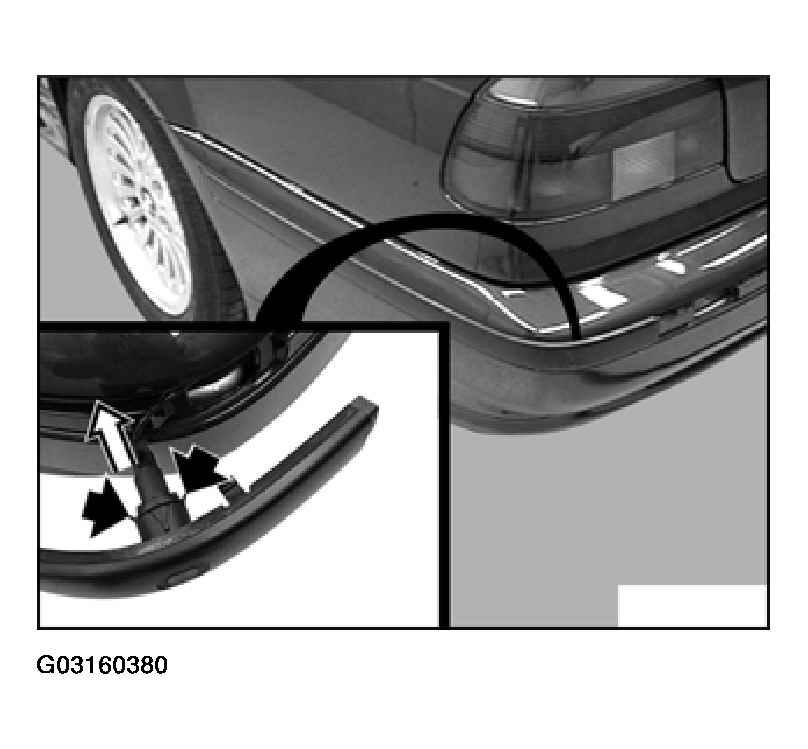

Fig 2: Removing Body Molding (With PDC)

Courtesy of BMW OF NORTH AMERICA, INC.

Lift chrome strip (1) out of clips (2) in body molding and remove.

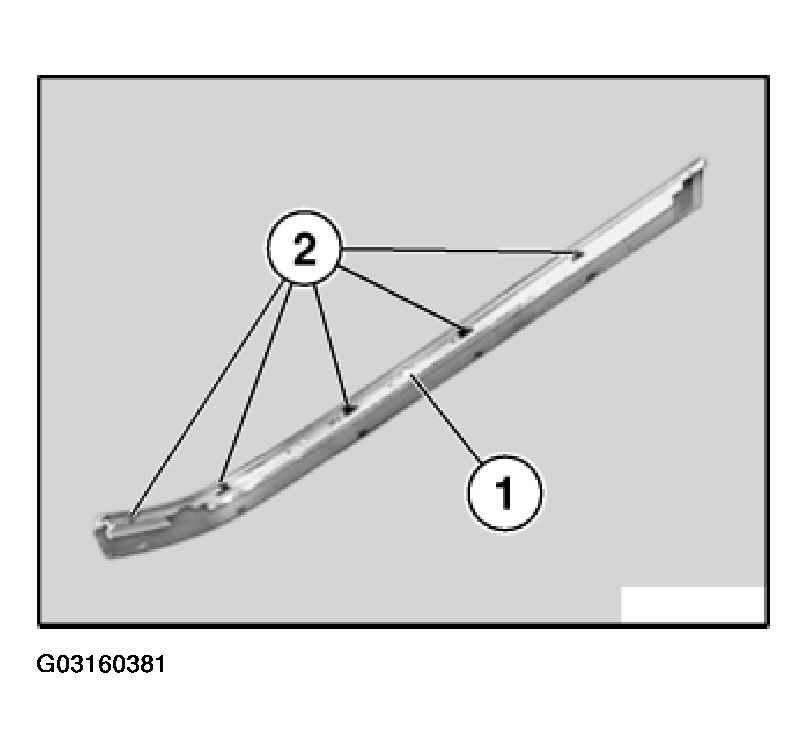

Fig 3: Removing Chrome Strips From Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.
