51 12 432 Replacing central body molding on rear bumper

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Version without Park Distance Control (PDC):

Unclip and remove body molding with special tool 00 9 321 (folding strut).

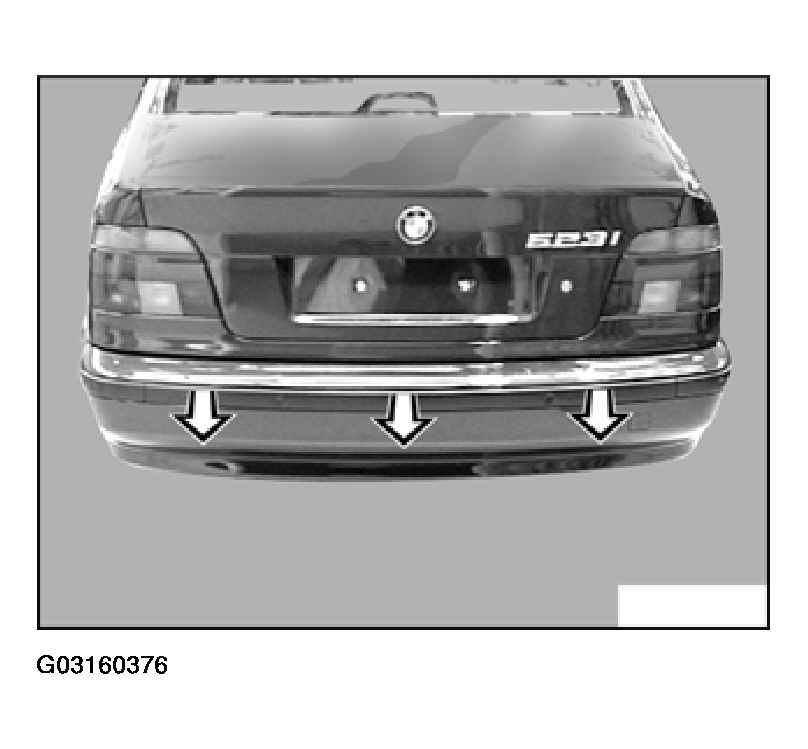

Fig 1: Removing Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

Unclip body molding, unfasten ultrasonic converter and remove.

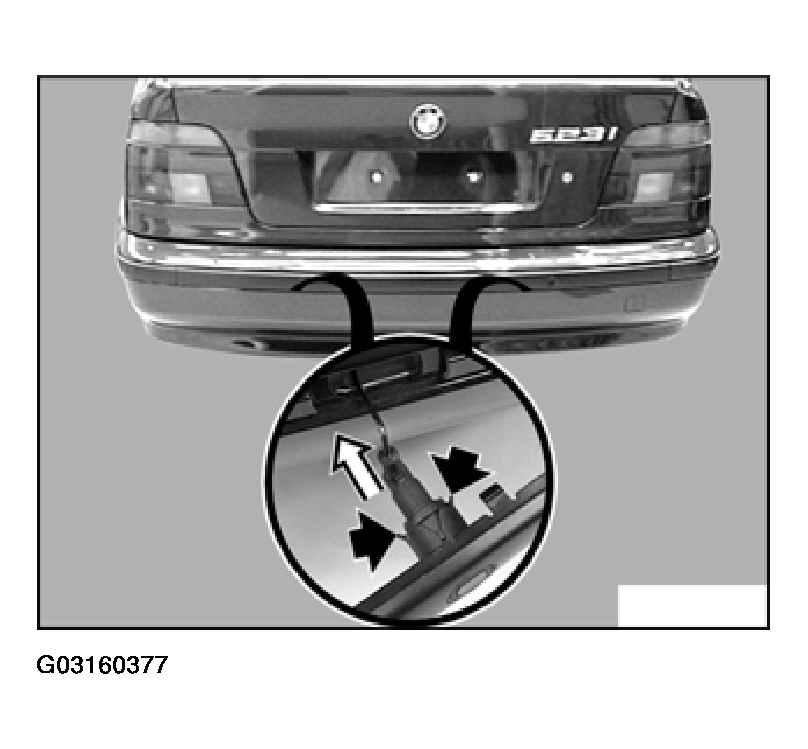

Fig 2: Uncliping Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Lift chrome strip (1) out of clips (2) in body molding and remove.

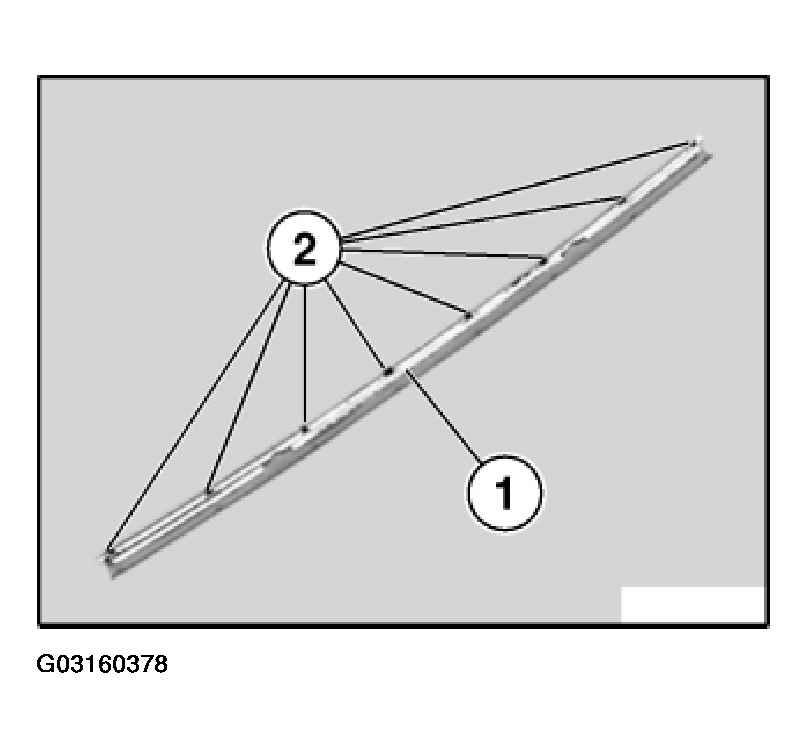

Fig 3: Lifting Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
