51 12 001 Replacing rear bumper

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

Remove protective strip for bumper at rear center, refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER .

Remove plastic insert (1).

Version with PDC:

If necessary, feed out cable(s) and ultrasonic converter(s) from bumper.

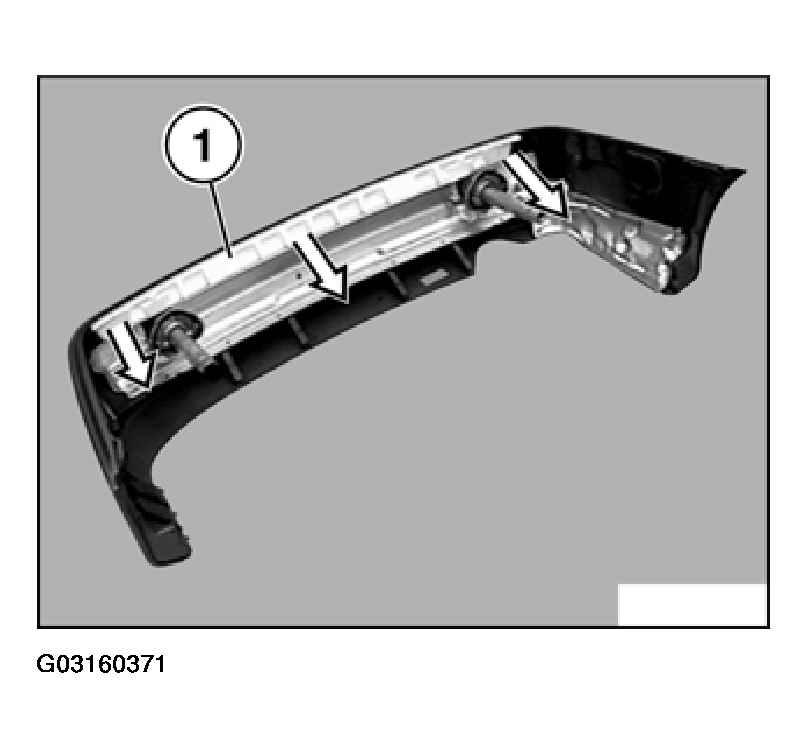

Fig 1: Removing Plastic Insert

Courtesy of BMW OF NORTH AMERICA, INC.

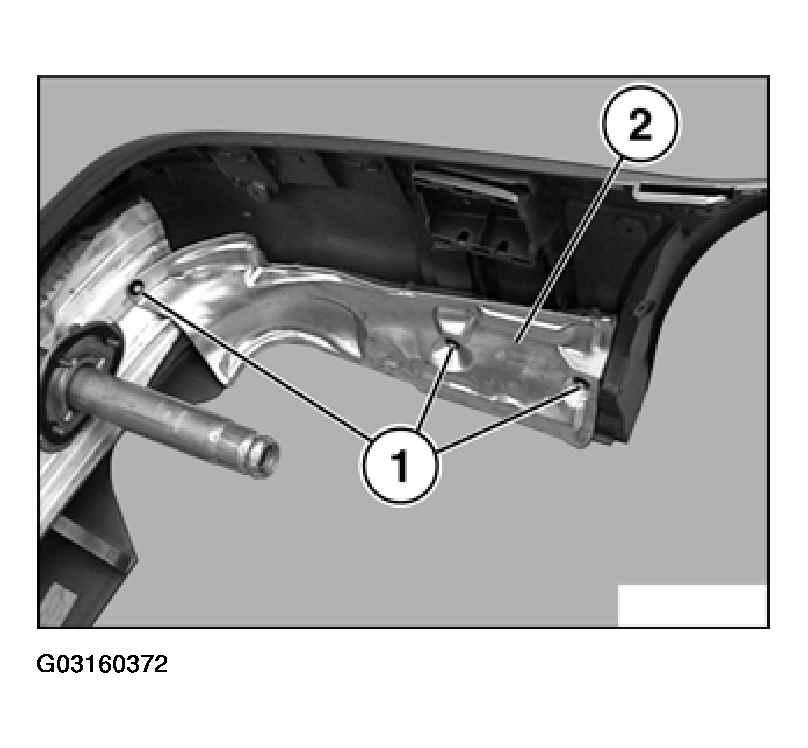

Unfasten expanding rivets (1) and remove heat shield (2).

Fig 2: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

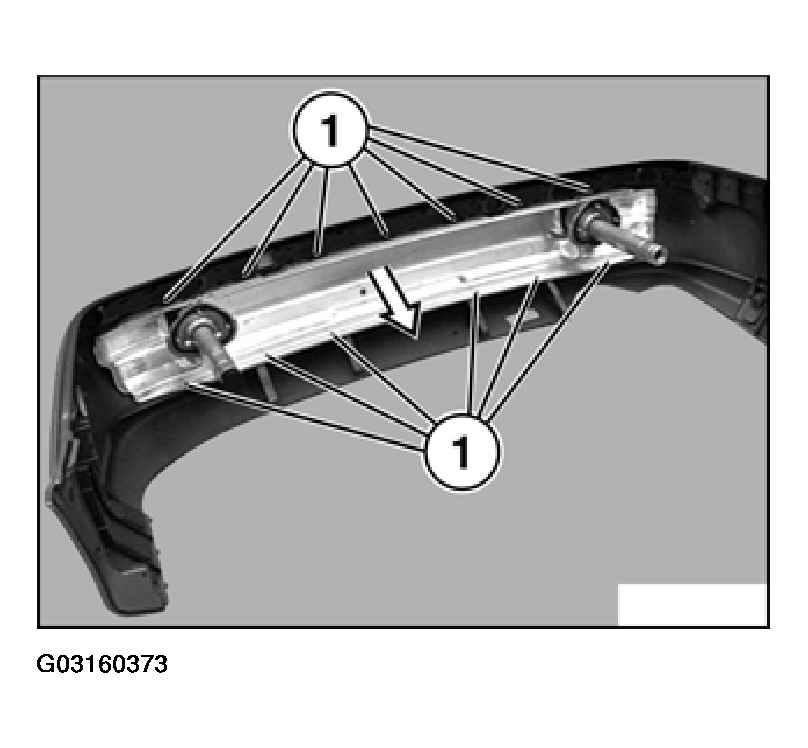

Unfasten expanding rivets (1) and remove center section of bumper (support beam).

Fig 3: Removing Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Place clips in water for a while.

Only for replacing rear bumper trim (51 12 157) and replacing rear bumper (51 12 001):

Remove rubbing strip for bumper at rear side left and right.

NOTE: The work for replacing rear bumper trim ("51 12 157)" ends here.

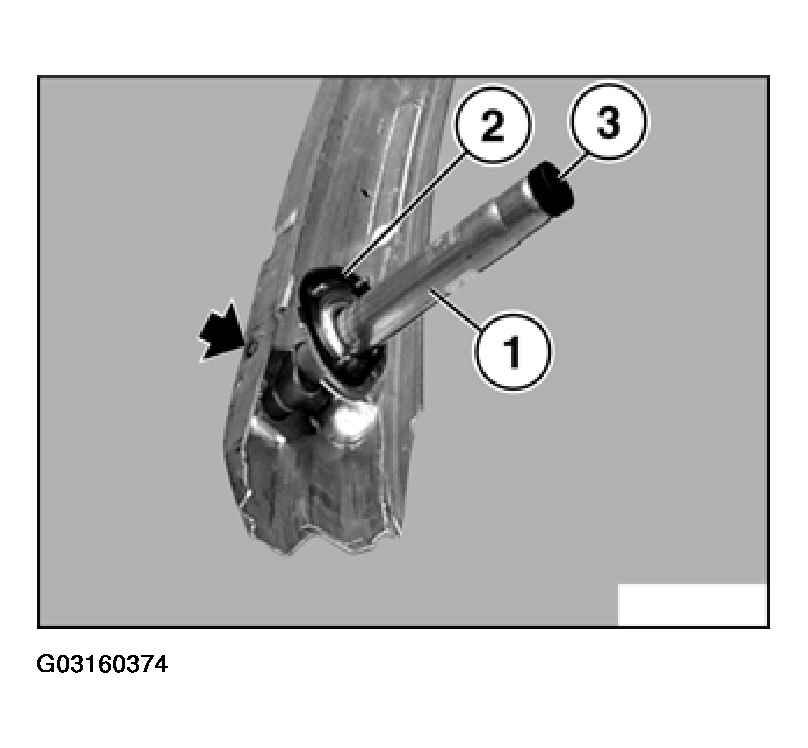

Unfasten screw and remove left/right shock absorber (1).

Fig 4: Removing Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, fit new seal (2) on shock absorber (1).

In addition on right side:

If necessary, fit new cover (3) on shock absorber (1).

Installation :

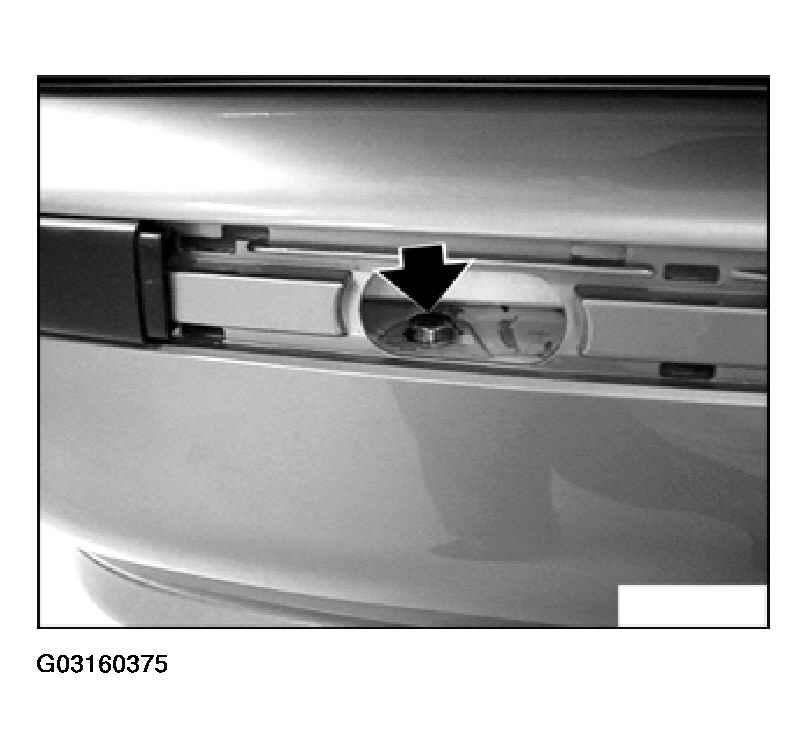

After installing bumper, firmly tighten screw on shock absorber, left/right sides.

Tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 5-SERIES .
