51 43 251 Removing and installing or replacing trim from rear left or right roof pillar

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

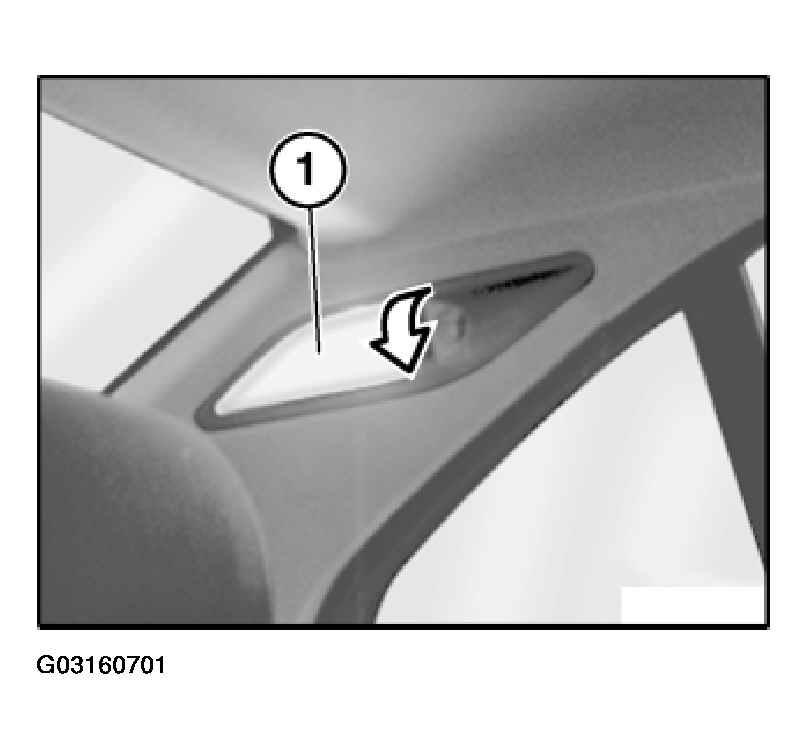

Lift interior light out from side of C pillar trim panel.

Fig 1: Removing Interior Light Out From C Pillar Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

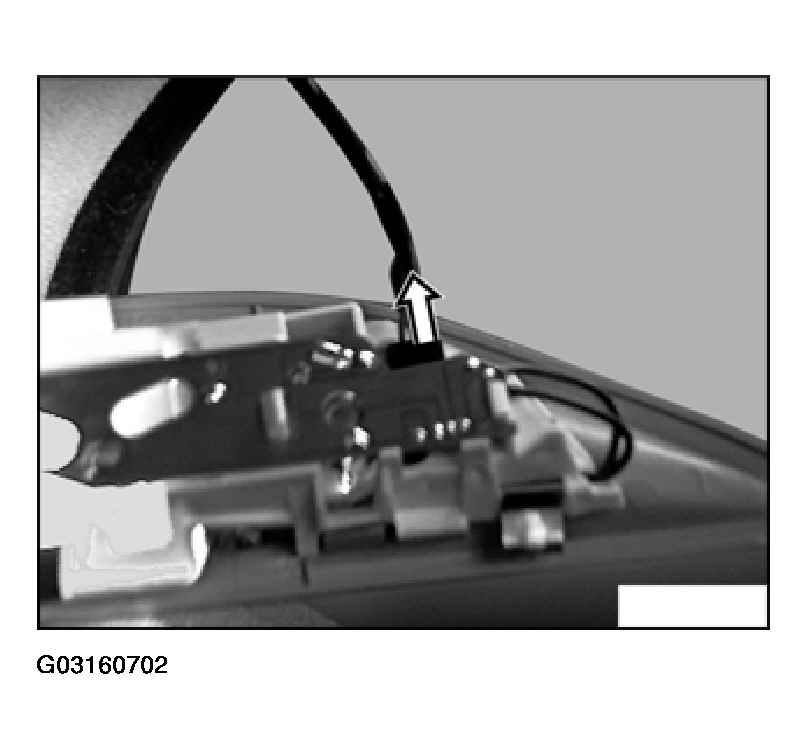

Pull off connectors.

Fig 2: Removing Interior Light Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

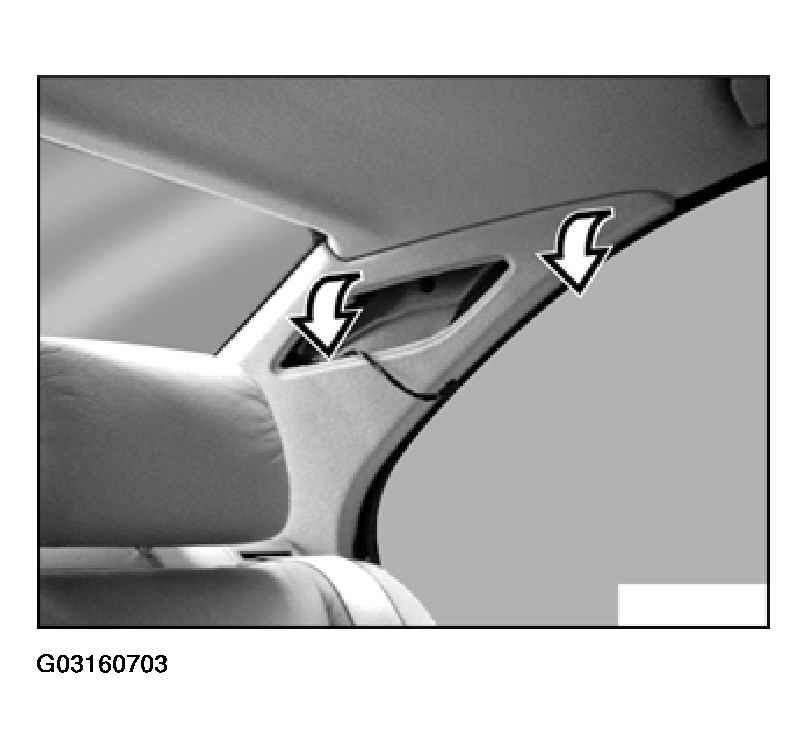

Pull trim upwards to unclip then inwards and upwards to remove.

Fig 3: Removing C Pillar Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

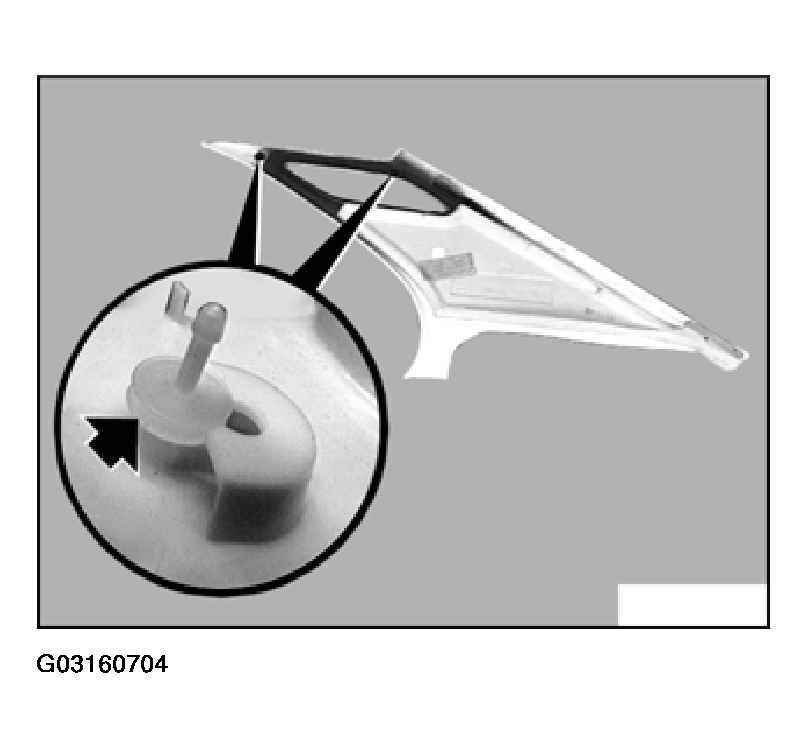

If necessary, replace damaged clips.

Fig 4: Replace Any Defective Or Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Remove insulating mat and cement to new trim panel.
