51 16 215 Removing and installing/replacing center armrest sliding unit

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove fresh air grill, refer to 64 22 190 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL IN REAR OF CAR .

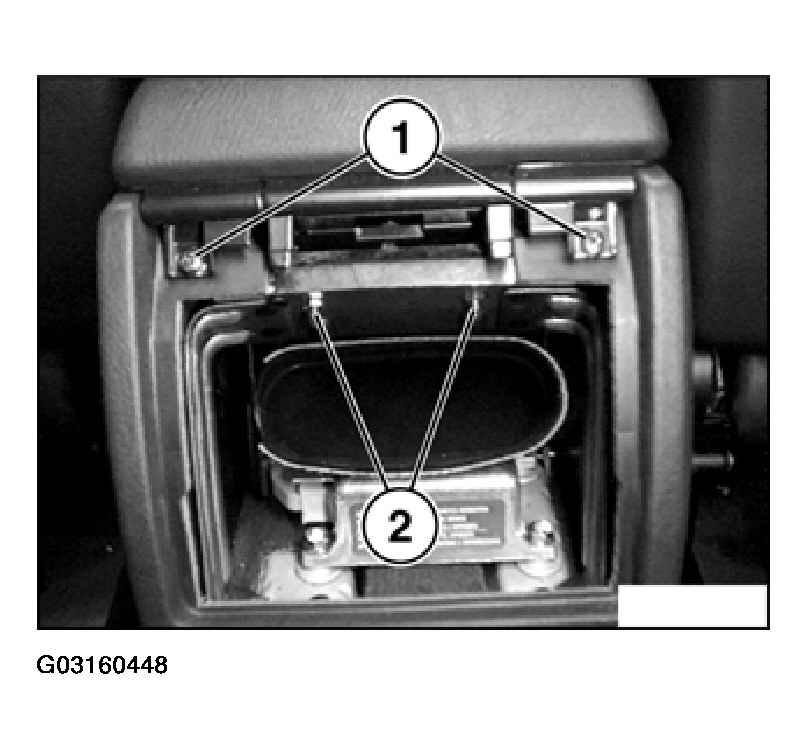

Release screws (1) and nuts (2).

Fig 1: Removing Center Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

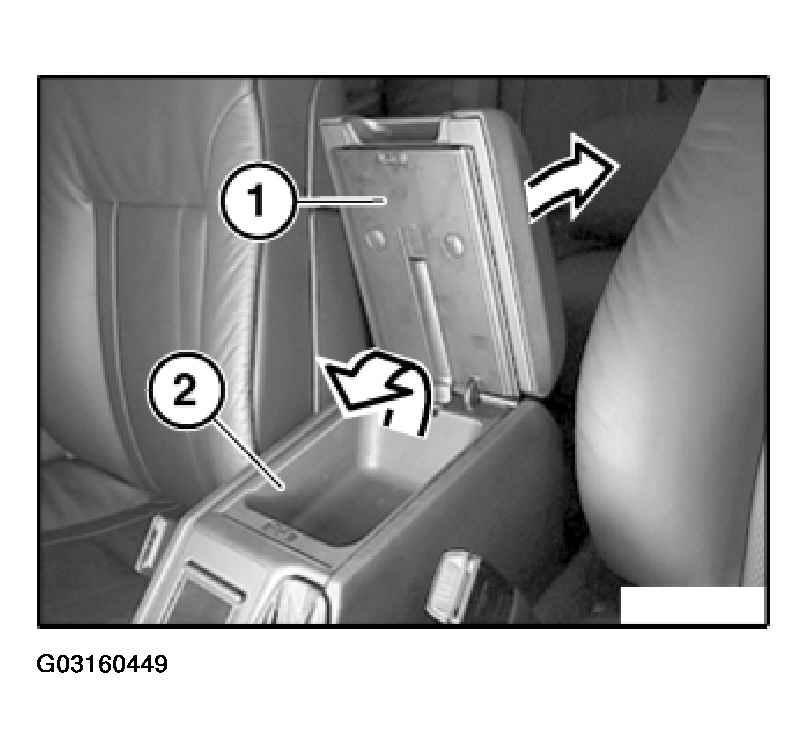

Open center armrest (1) and remove storage tray (2) at same time.

Fig 2: Removing Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
