51 16 201 Replacing oddments tray

Removing center console, refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY .

Version with can holder:

If necessary open both can holders (1) slightly.

Unfasten screws (2), lift can holder to one side and remove.

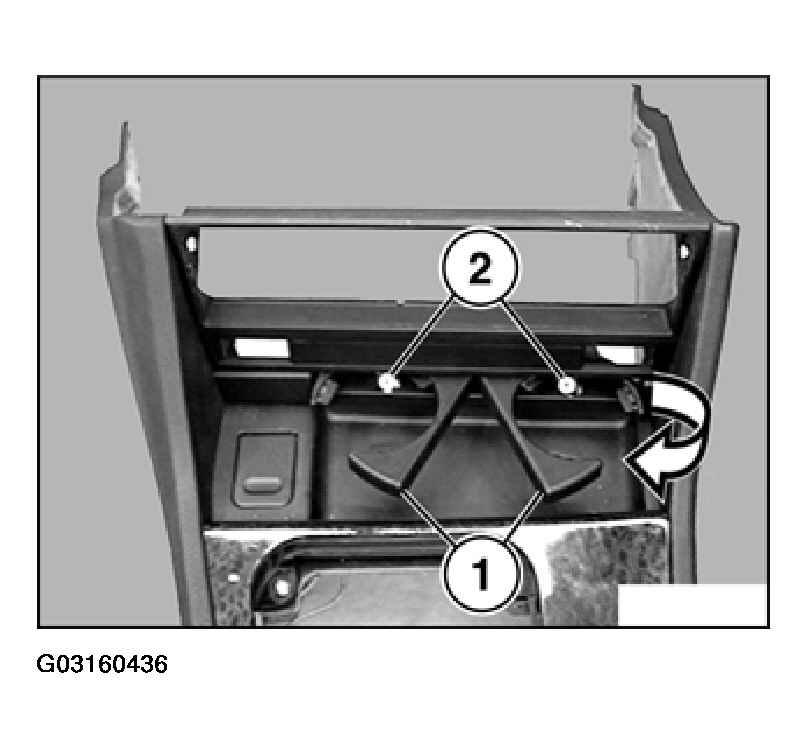

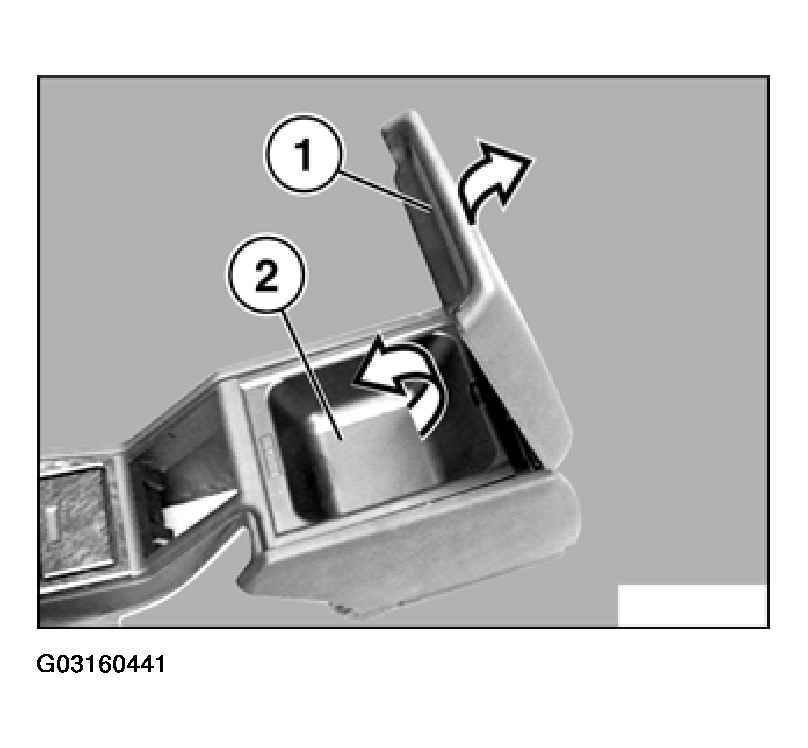

Fig 1: Removing Can Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove frame (2) for heater controls.

Fig 2: Removing Heater Controls Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1).

Unfasten connector (2), remove and lift off oddments tray (3) with cigar lighter.

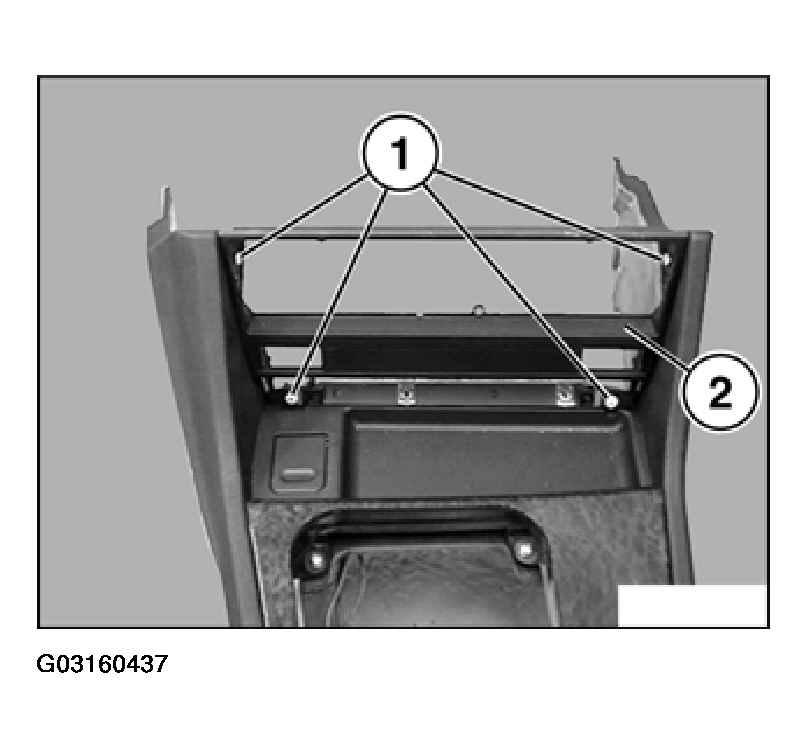

Fig 3: Removing Oddments Tray With Cigar Lighter

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip insert in oddments tray and remove.

Fig 4: Removing Insert In Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and nuts (2).

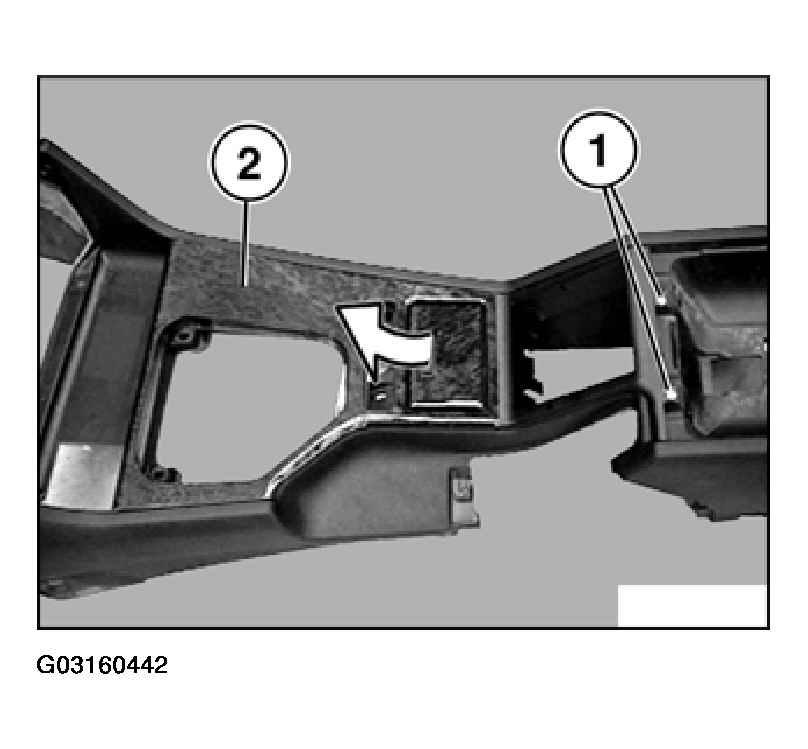

Fig 5: Remove Screws As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

Open cover (1) and remove oddments tray (2) (rear).

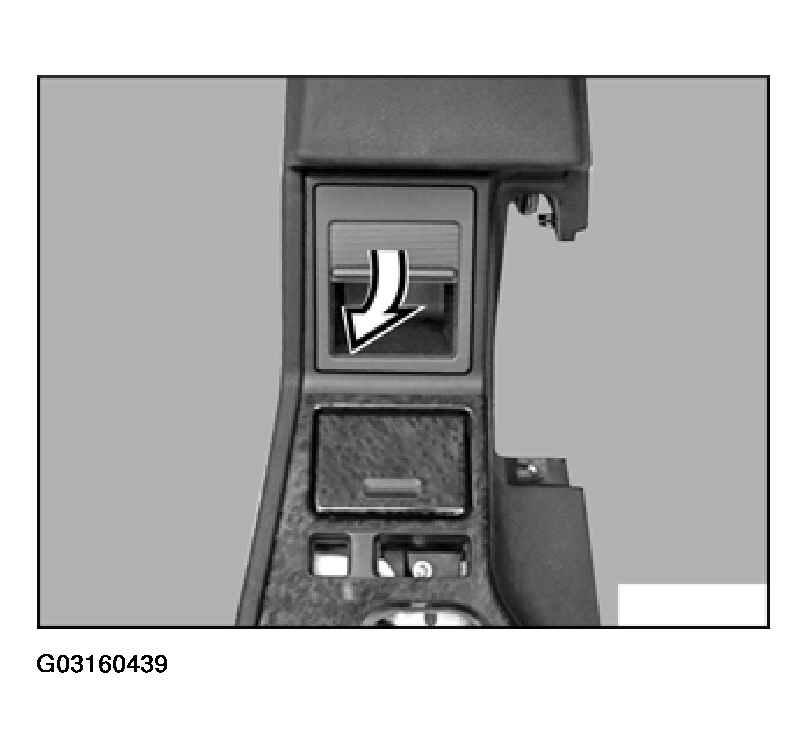

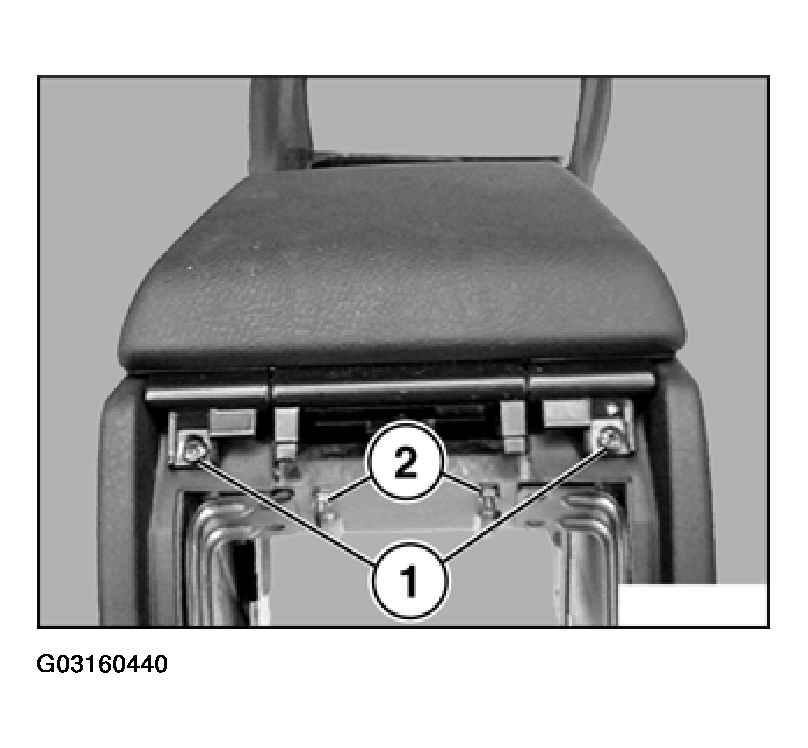

Fig 6: Removing Rear Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove insert (2) from center console.

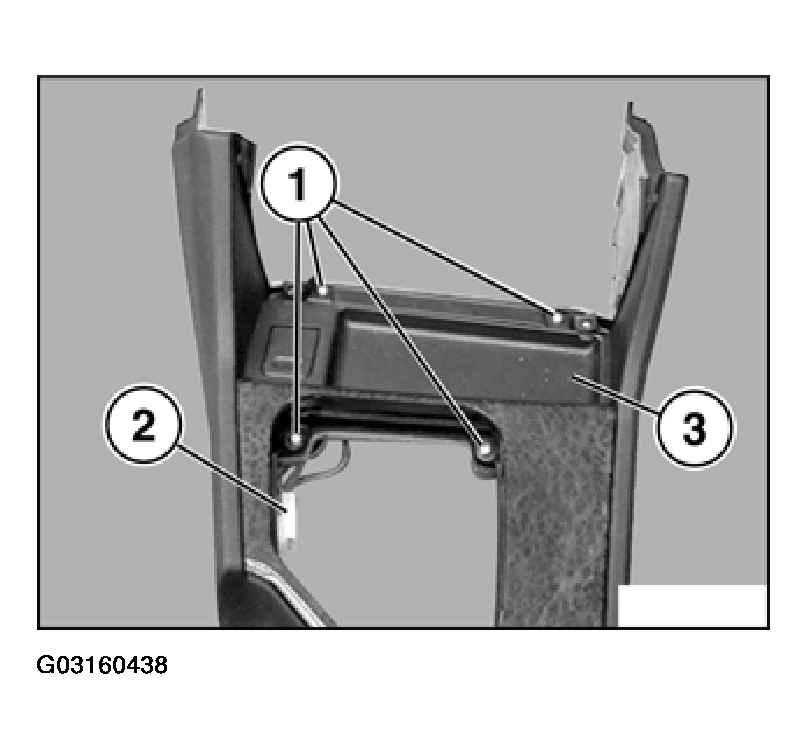

Fig 7: Removing Insert From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove rear bracket. Unfasten screws (2) and remove front bracket.

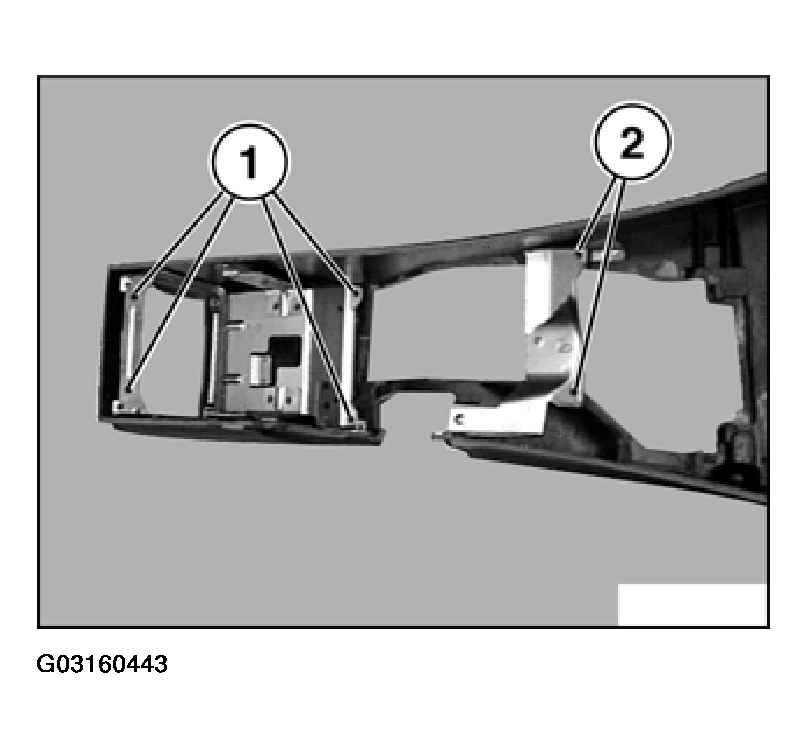

Fig 8: Removing Front & Rear Brackets
