51 16 000 Removing and installing mirror on left or right front door
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

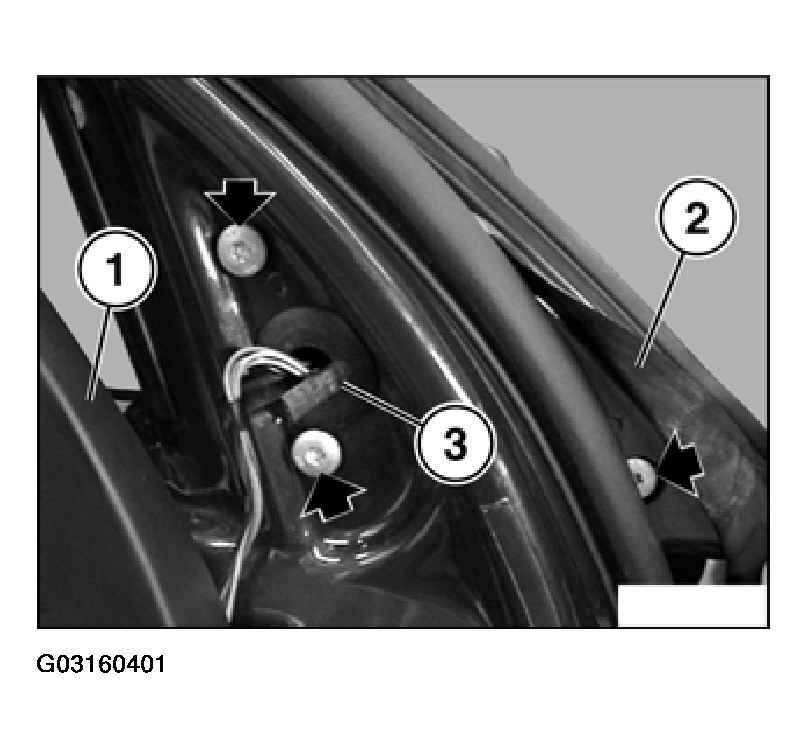

Lift finisher (1) (finger-jam protection) slightly, press gasket (2) out to one side and unfasten screws. Pull through cable for rear-view mirror with grommet (3) and remove rear-view mirror.
Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
Check function.
