51 45 051 Replace trim for upper section of instrument panel

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for upper section of instrument panel,

refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL

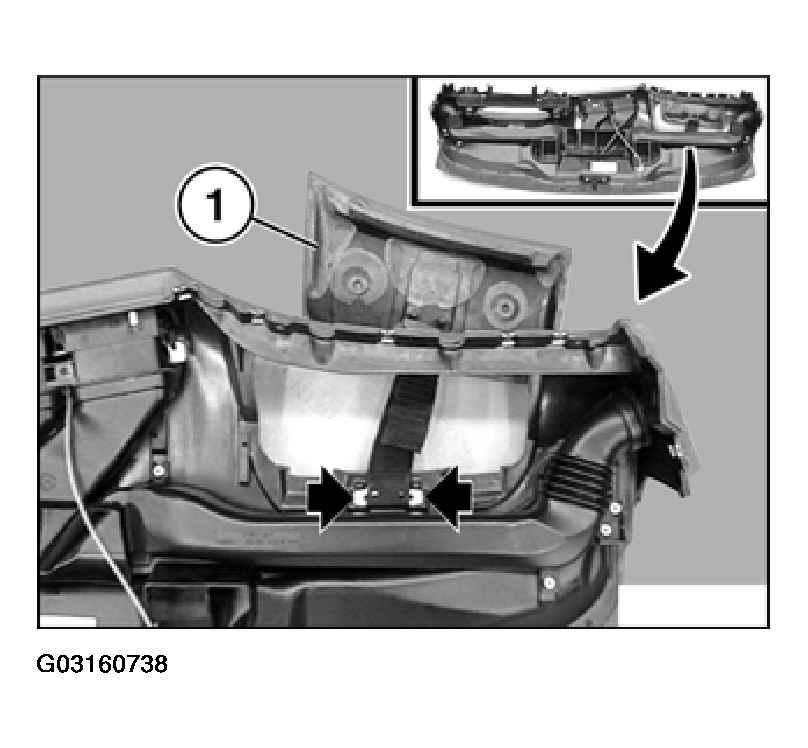

Unfasten screws and remove cover (1) for passenger airbag.

Fig 1: Removing Cover For Passenger Airbag

G03160738

Courtesy of BMW OF NORTH AMERICA, INC.

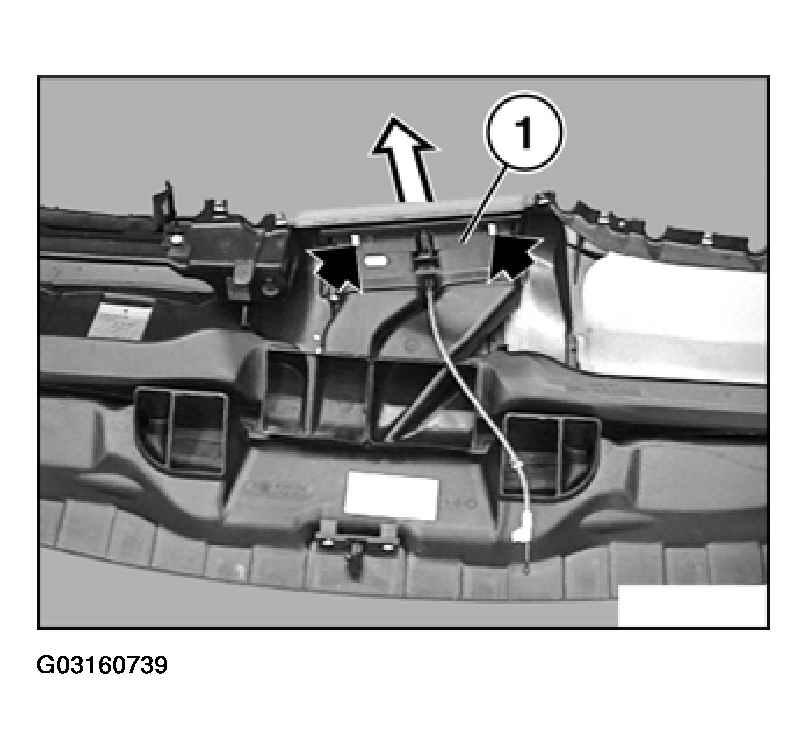

Depress interlock and remove fresh air grill (1) (center).

Fig 2: Removing Fresh Air Grill (Center)

G03160739

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove rubber gaiter for steering column from instrument panel (1).

Fig 3: Removing Rubber Gaiter For Steering Column From Instrument Panel

G03160740

Courtesy of BMW OF NORTH AMERICA, INC.

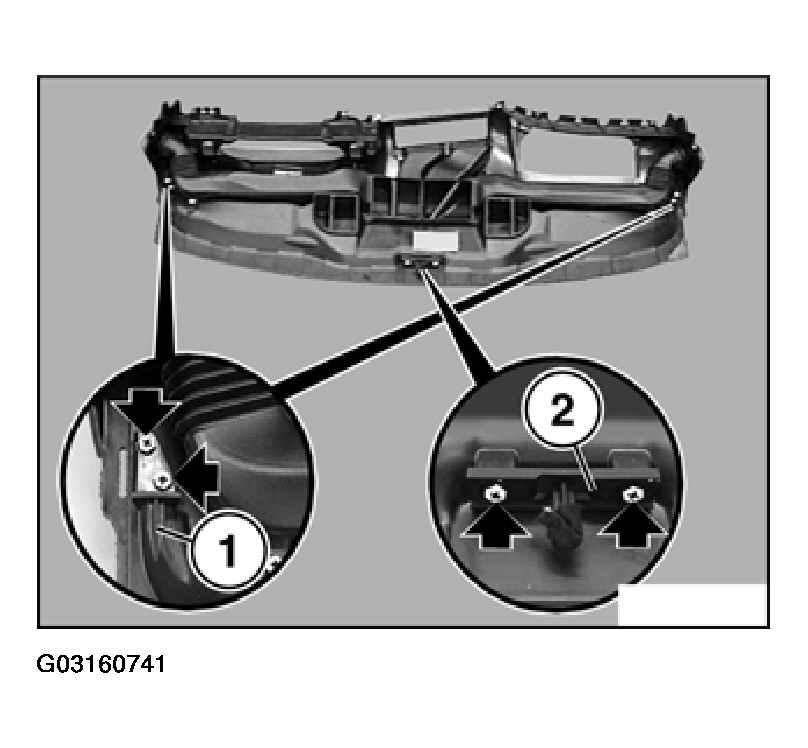

Unfasten screws and remove outer (1) and center (2) brackets.

Fig 4: Removing Brackets

G03160741

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts.

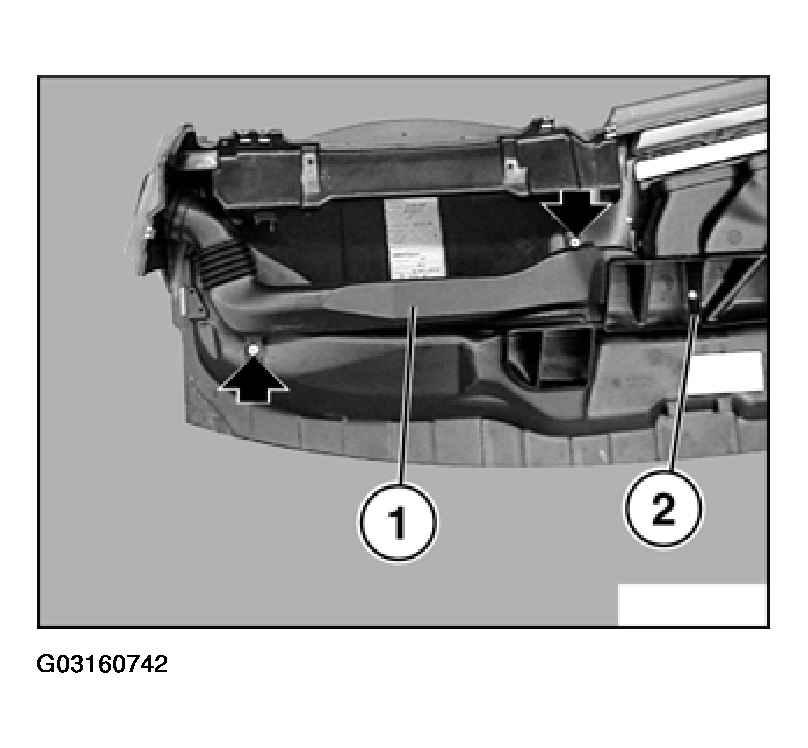

Detach and remove left air duct (1) in center (2).

Fig 5: Removing Left Air Duct

G03160742

Courtesy of BMW OF NORTH AMERICA, INC.

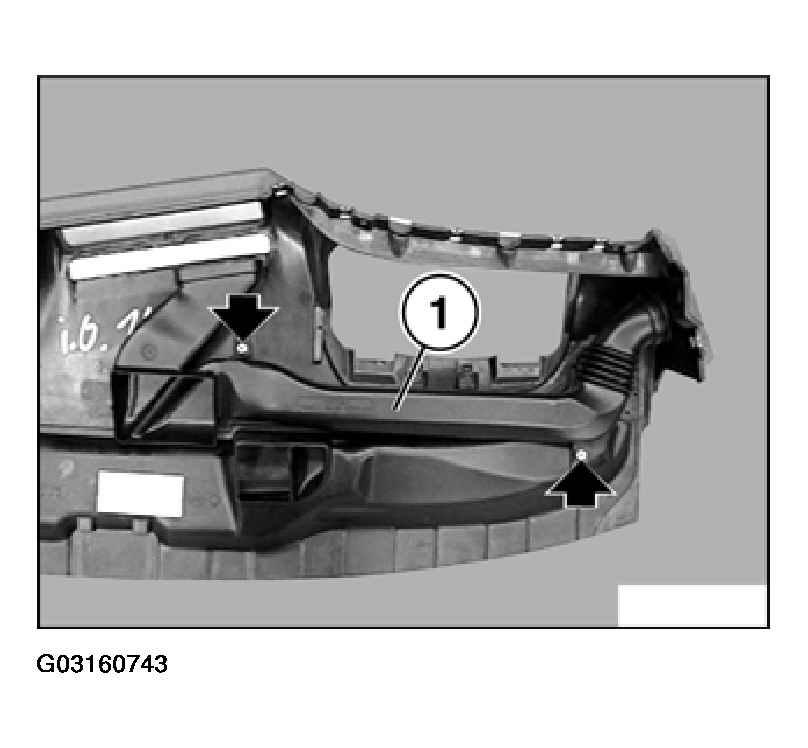

Unfasten screws and remove right air duct (1).

Fig 6: Removing Right Air Duct

G03160743

Courtesy of BMW OF NORTH AMERICA, INC.

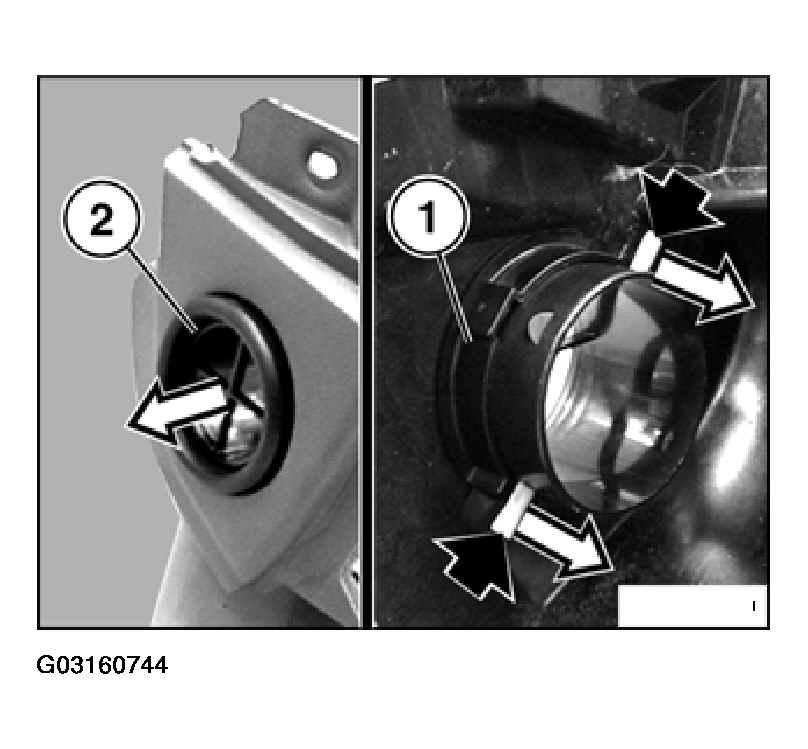

Press down detent and remove bracket (1).

Pull grill for left/right air duct (2) outwards to remove.

Fig 7: Removing Grill For Left/Right Air Duct

G03160744

Courtesy of BMW OF NORTH AMERICA, INC.

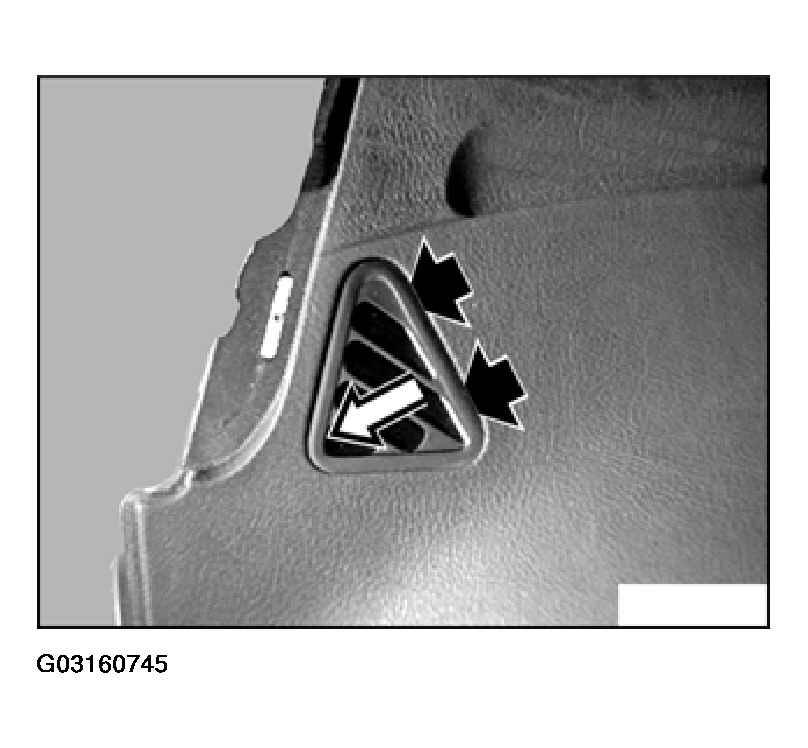

Lift out grill for top left/ right air duct.

Fig 8: Removing Grill For Top Left/Right Air Duct

G03160745

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

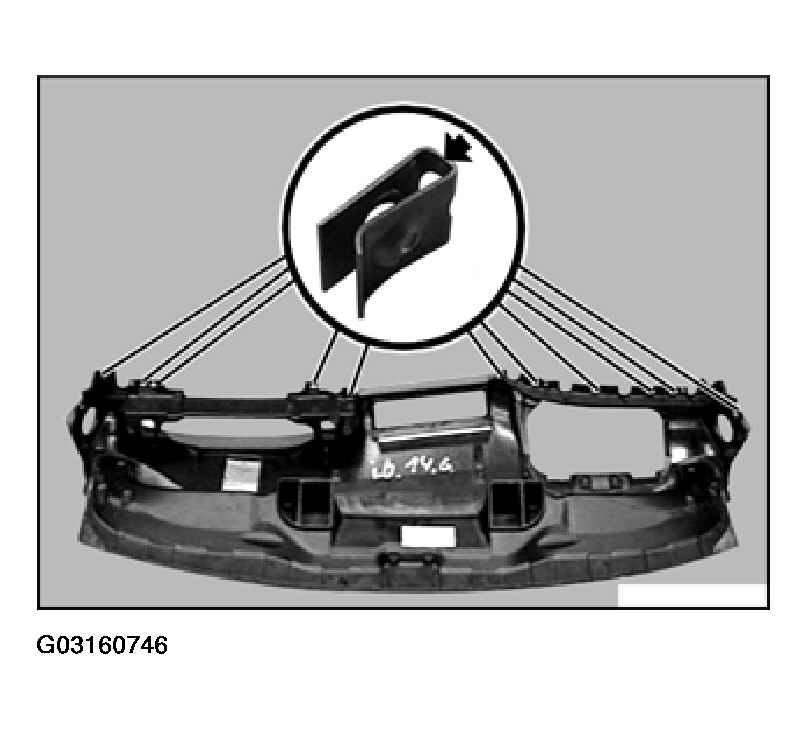

Remove all clips and slide onto new trim for upper section of instrument panel.

Fig 9: Removing All Clips And Transfer To New Upper Section Of Instrument Panel

G03160746

Courtesy of BMW OF NORTH AMERICA, INC.
