51 21 351 Replacing window recess cover on left or right front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install window cavity trim on inside of front door, refer to 51 21 330 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON INNER FRONT DOOR .

Pull window cavity gasket (1) off window cavity cover strip (2).

Installation:

Coat window cavity seal (1) for assembly with rubber protection coating agent.

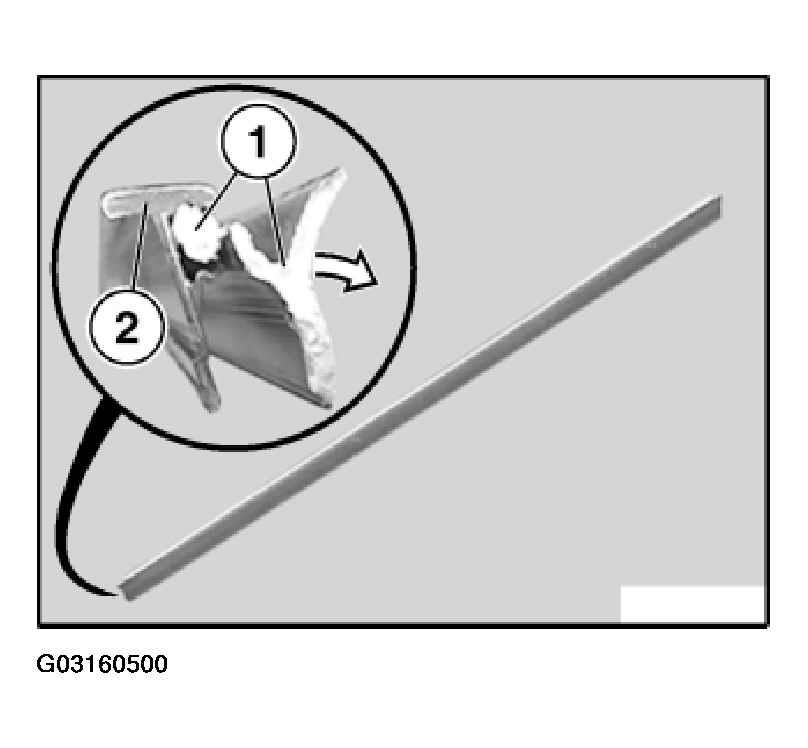

Fig 1: Replacing Cavity Gasket
G03160500Courtesy of BMW OF NORTH AMERICA, INC.
