51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Beginning from rear, raise clips (1) with special tool 00 9 321 (folding leg).

Press cover strip (2) upwards out of clips.

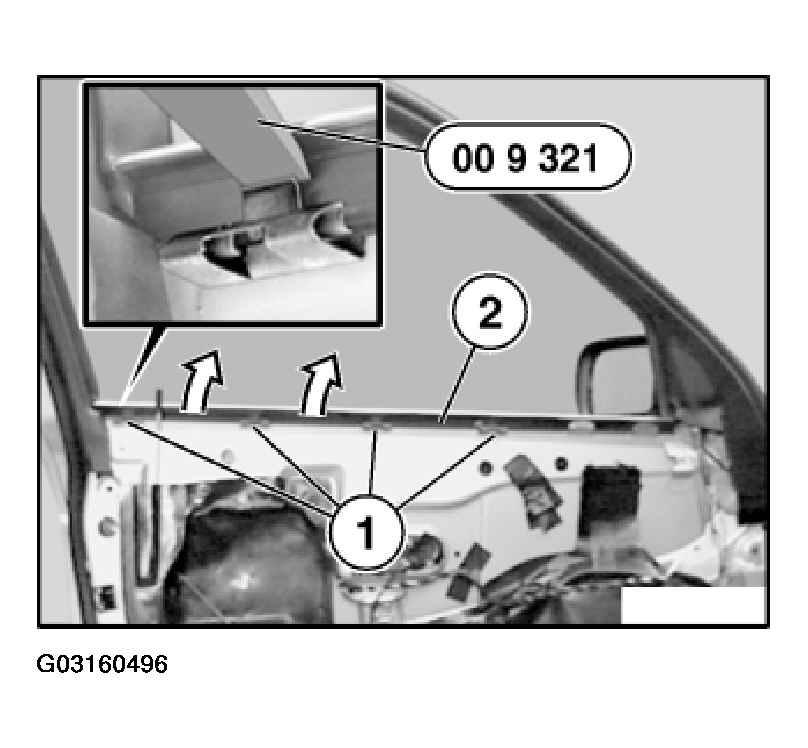

Fig 1: Raise Inner Window Cavity Cover Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover strip (1) past window frame towards rear.

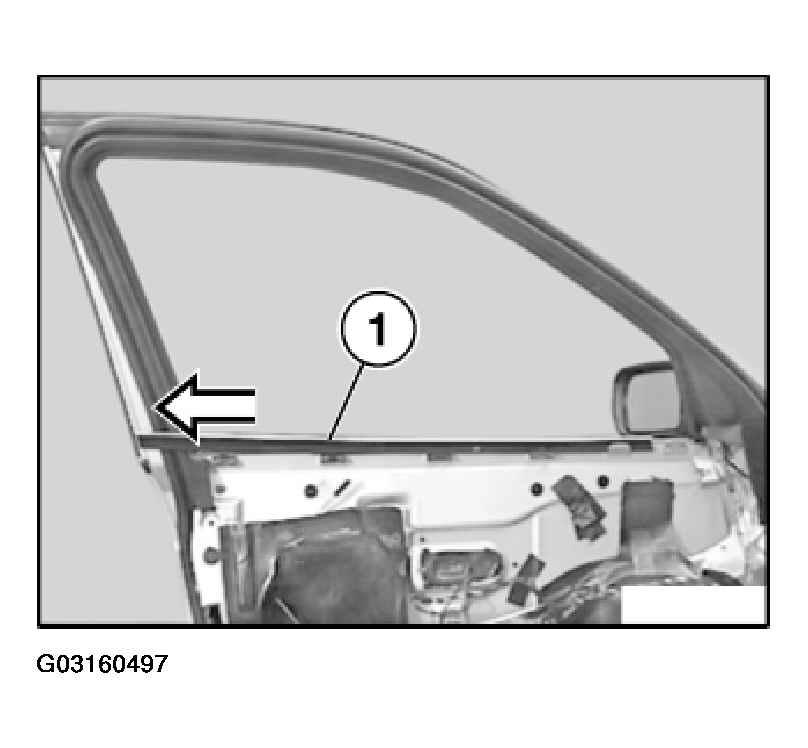

Fig 2: Removing Inner Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove faulty clips (1) from inner door panel (2) and replace.

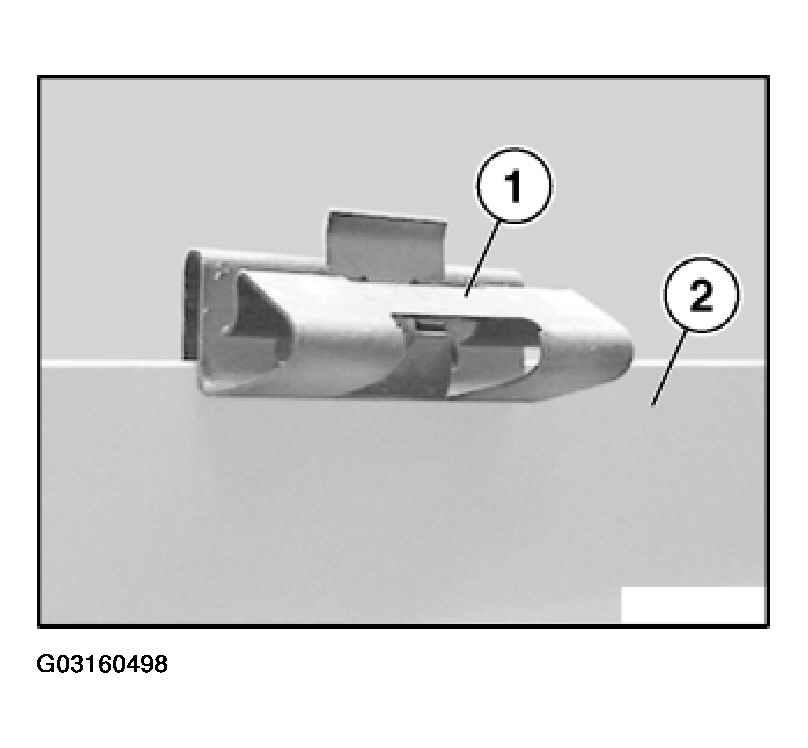

Fig 3: Replace Any Faulty Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove front left or right door trim, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Coat cover strip with rubber protection coating agent.

Begin with assembly at front (1).

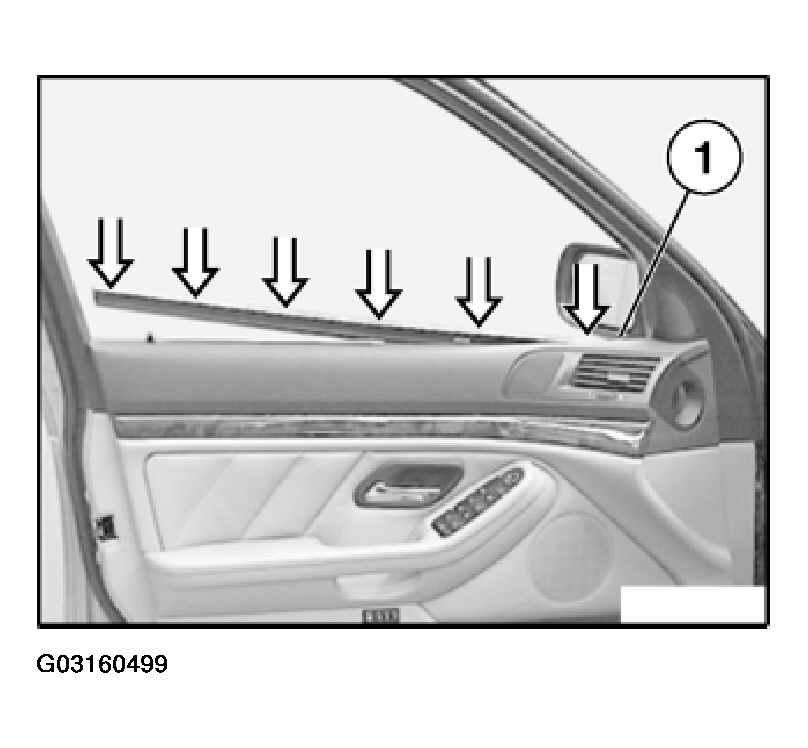

Fig 4: Installing Inner Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
