51 21 225 Removing and installing/replacing inside door handle in left or right front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Version up to 03/01 (Bowden cable with hook):

Pull Bowden cable (1) towards rear and unhook from door opener.

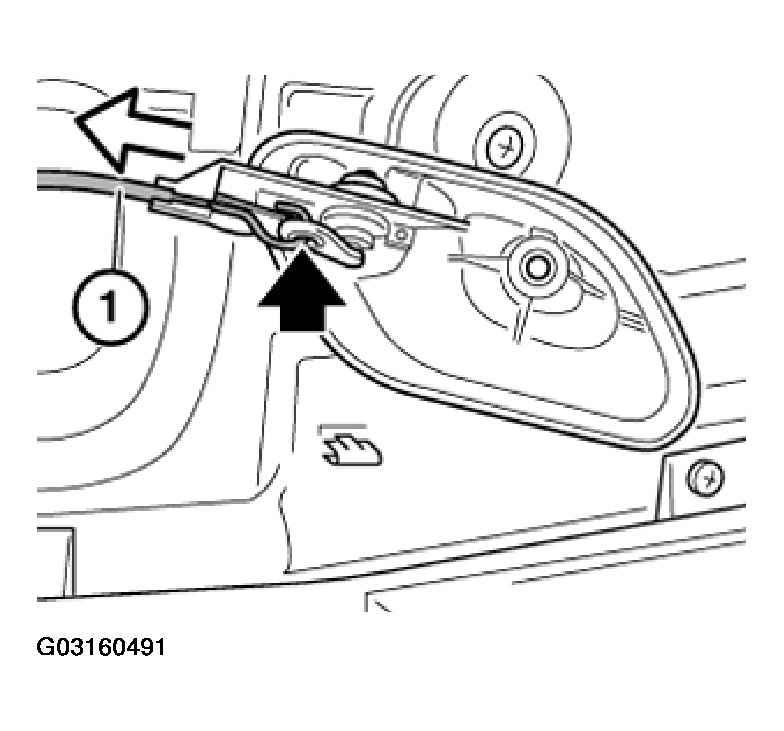

Fig 1: Replacing Front Inside Door Handle (Version Up To 03/01)

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 03/01 (Bowden cable with clip):

Unlock Bowden cable and unhook:

Tighten unlocking lever (1)
Lever out lock (2)
Detach Bowden cable (3) towards rear/top
Adhesive tape (4) is only required for series production assembly

Installation :

For installation, press unlocking lever (1) completely onto door opener (5).

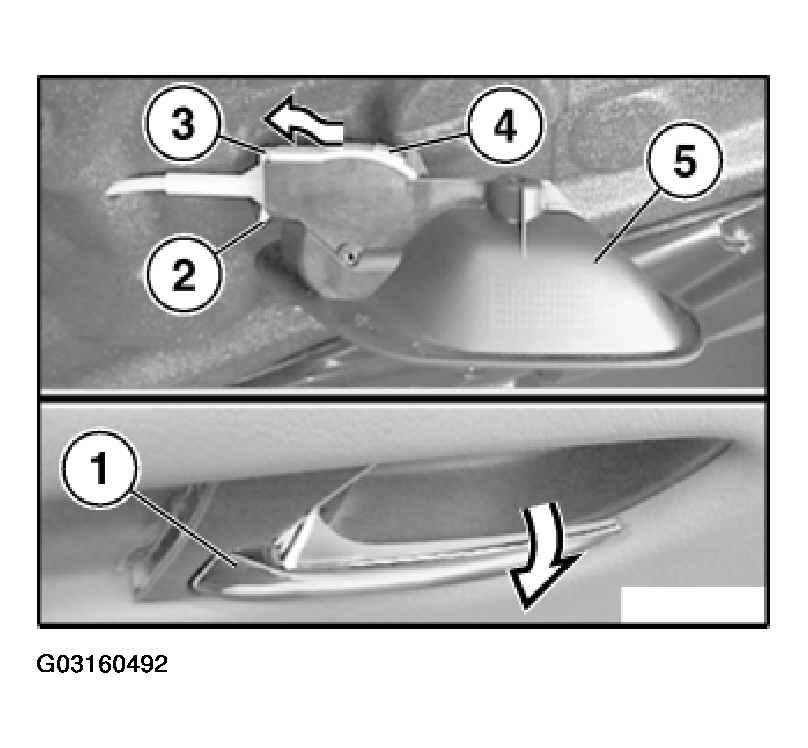

Fig 2: Replacing Front Inside Door Handle (Version from 03/01)

Courtesy of BMW OF NORTH AMERICA, INC.
