51 21 130 Removing and installing or replacing lock on left or right front door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary with lock cylinder

Remove door lock, refer to 51 21 090 REMOVING AND INSTALLING/REPLACING DOOR LOCK ON LEFT OR RIGHT FRONT DOOR

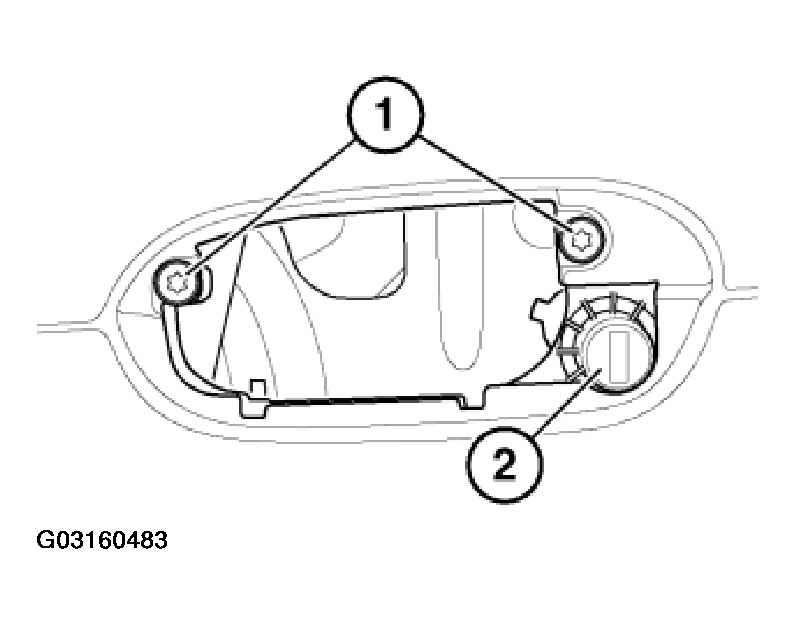

Unfasten screws (1) and remove locking unit (2) (carrier for outside door handle).

Fig 1: Removing Locking Unit (2) Carrier For Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

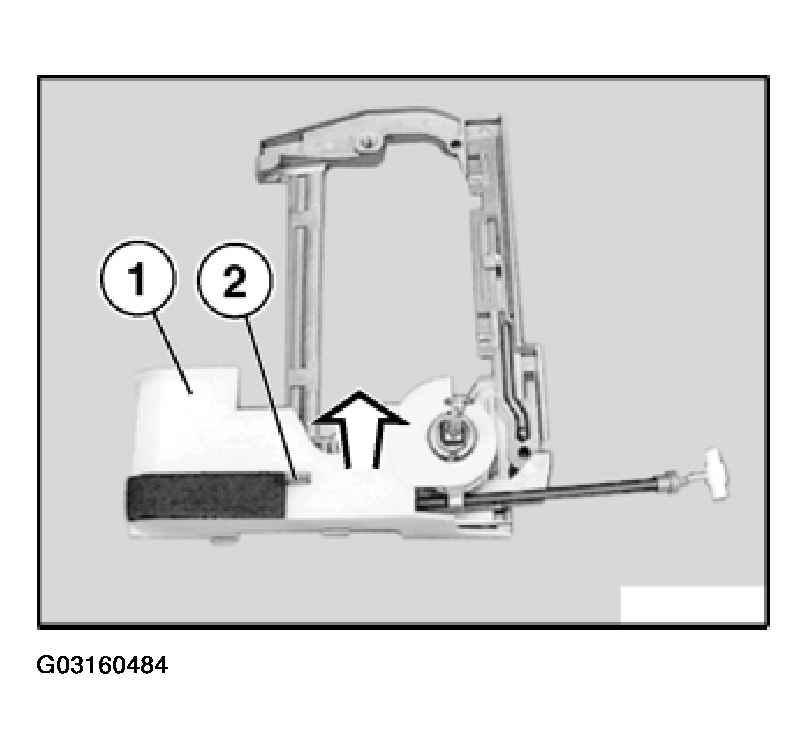

Unlock cover (1) with screwdriver through aperture (2) and remove.

Fig 2: Unlocking Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

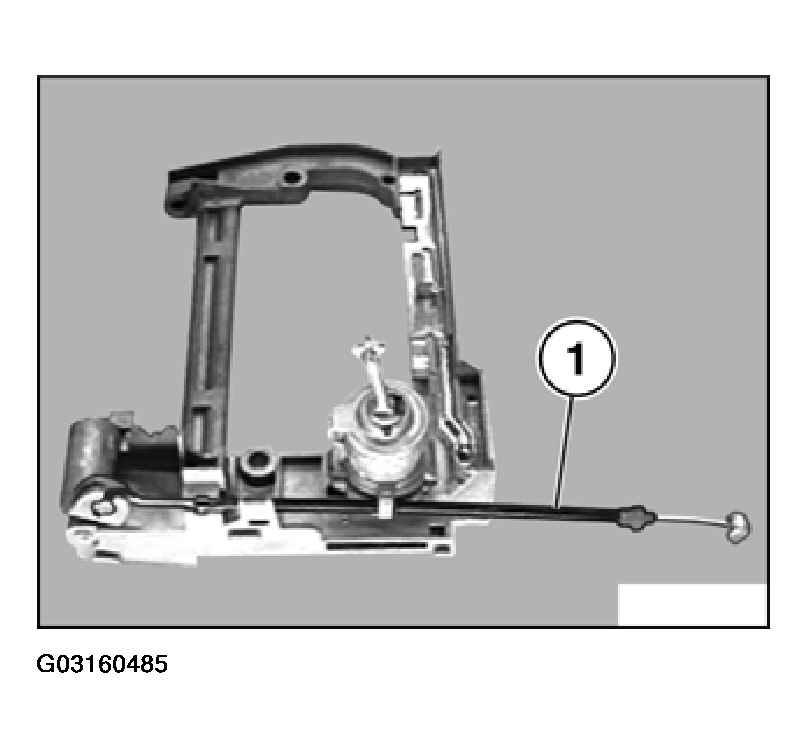

Disconnect Bowden cable (1) from locking unit.

Fig 3: Disconnecting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
