51 11 792 Replacing shock absorber for front left bumper

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Bumper removed, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

Unfasten screws and pull air guide (1) for intake filter housing outwards to remove.

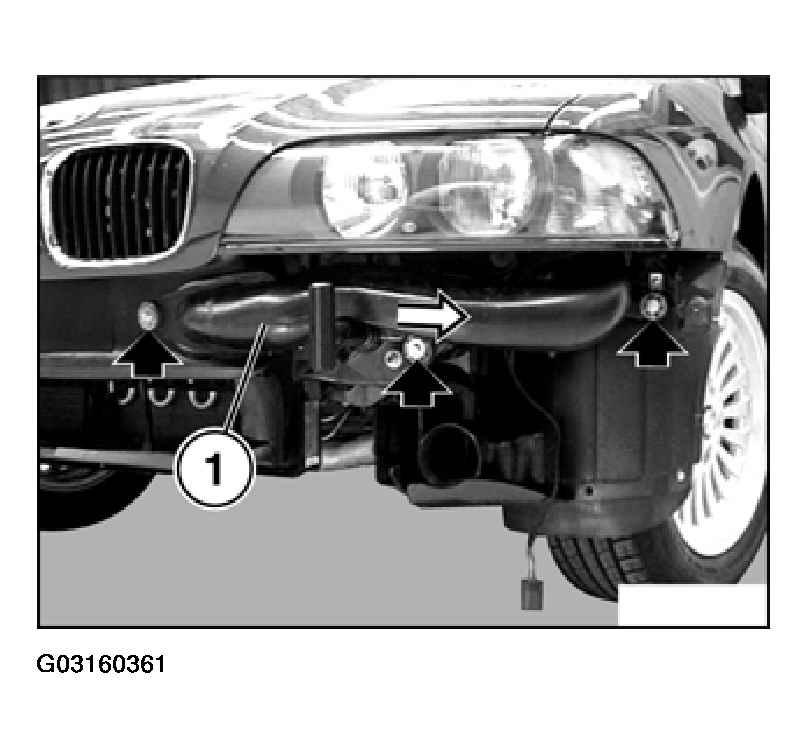

Fig 1: Removing Pull Air Guide For Intake Filter

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove left shock absorber (1).

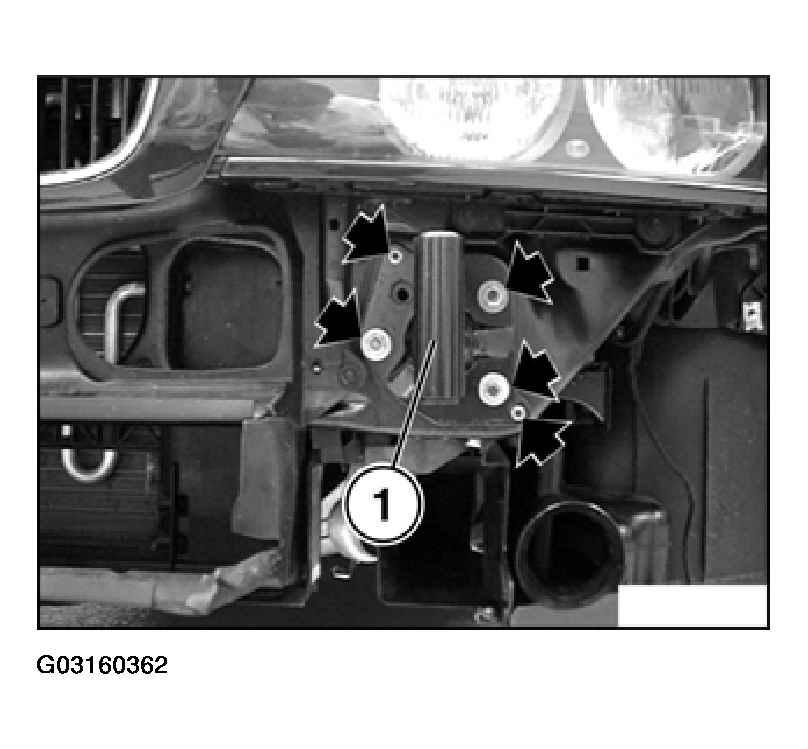

Fig 2: Removing Left Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
