51 11 701 Replacing left or right bracket for front bumper

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Bumper removed, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

Installation:

If necessary, mark position of bracket on body.

Unfasten screws from wheel arch and remove bracket (1).

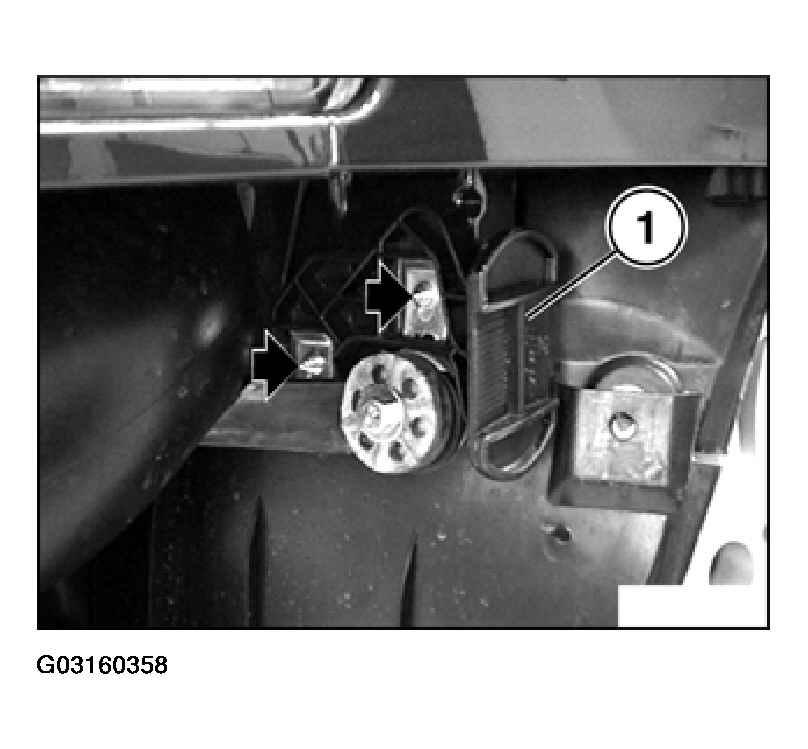

Fig 1: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When exchanging bracket, adjust dimensions (A) and (B).

Dimension (B) is measured vertically downwards at distance (C) from side panel.

approx. 18 mm
approx. 32 mm
approx. 115 mm

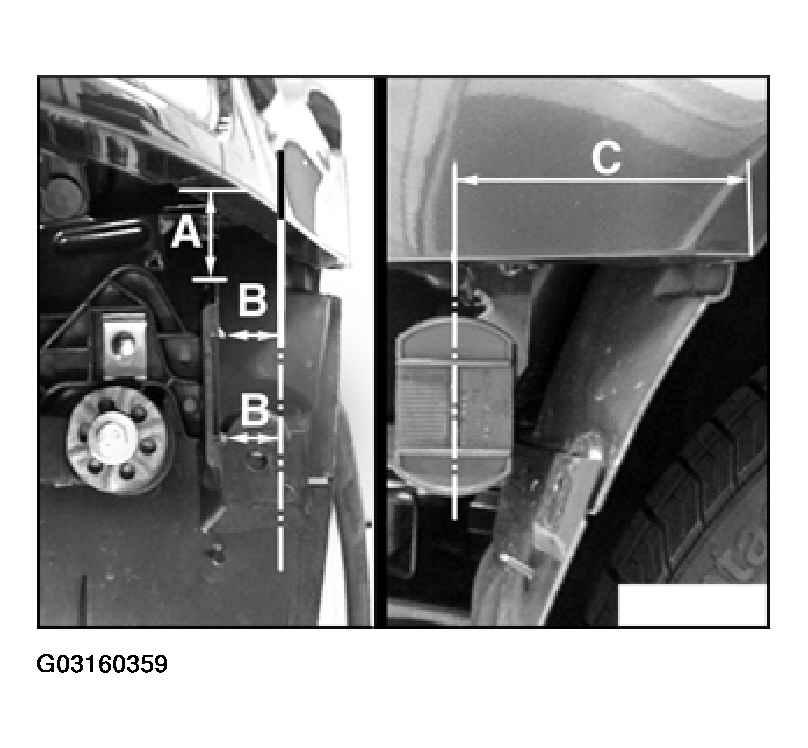

Fig 2: Adjusting Bracket
Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Gap (A) should be uniform down full length between bumper and aperture in body.

Dimension (A) = 5 +/- 1 mm

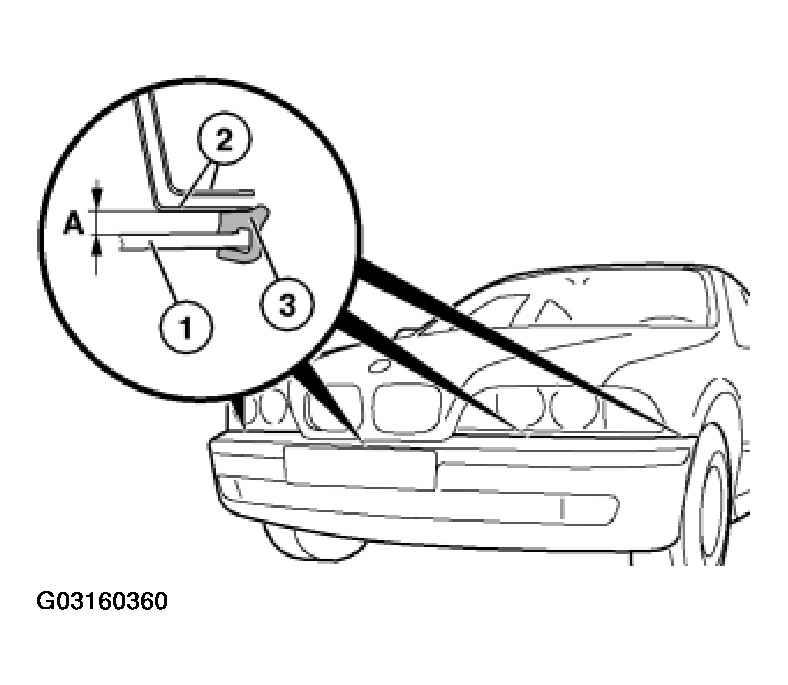

Fig 3: Identifying Bumper Gap

Courtesy of BMW OF NORTH AMERICA, INC.
