51 47 030 Removing and installing/replacing the rear (inside) left or right entrance cover strip

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat, refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) or REAR SEAT (THROUGH-LOADING) .

Unscrew screw.

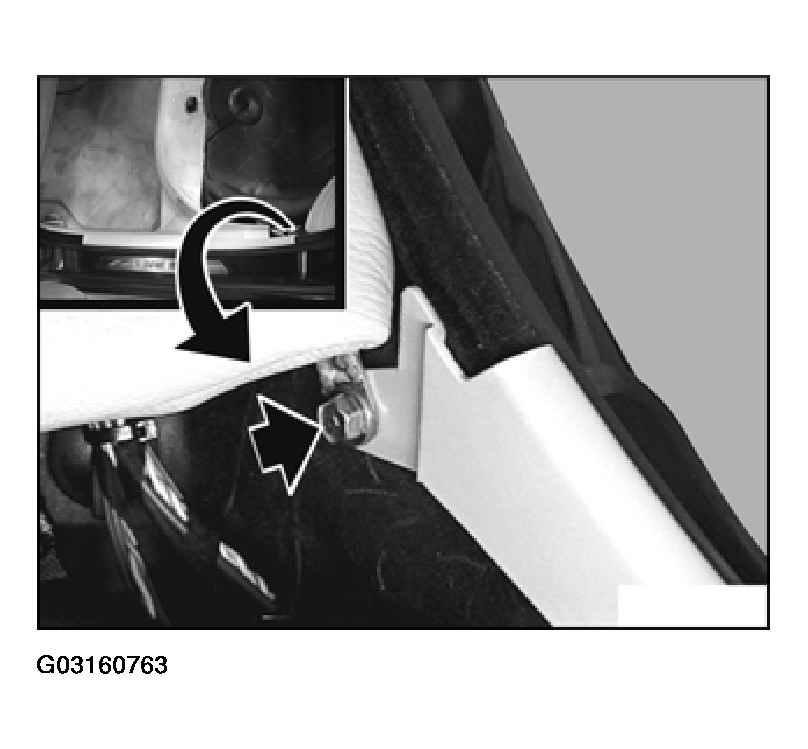

Fig 1: Removing Rear Seat Screw (Arrow)

Courtesy of BMW OF NORTH AMERICA, INC.

Slide rocker panel strip backwards out of clips and remove.

Lever clips with pliers (head of pliers surface-ground) out of base plate.

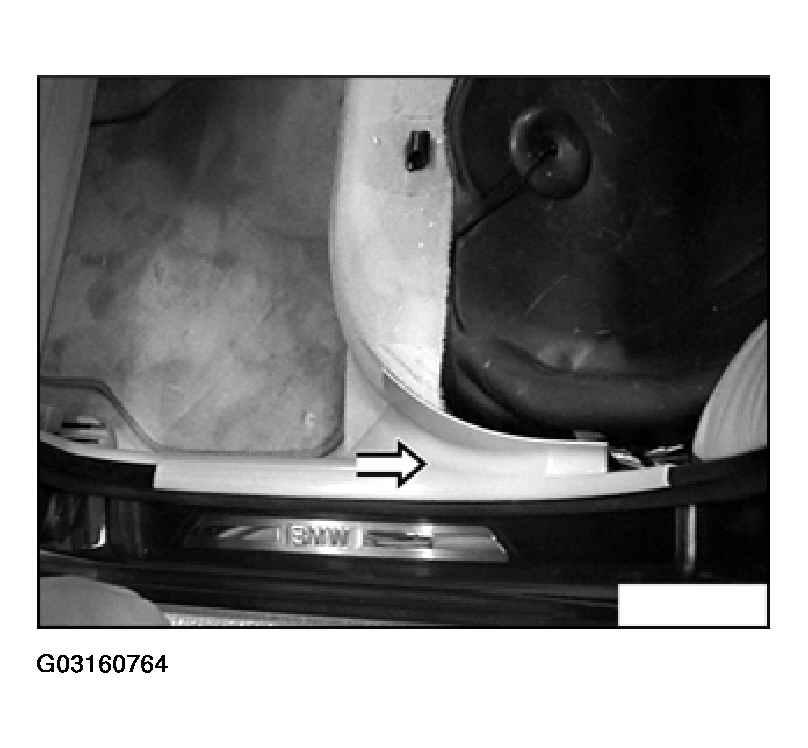

Fig 2: Removing Rear Inside Rocker Panel Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

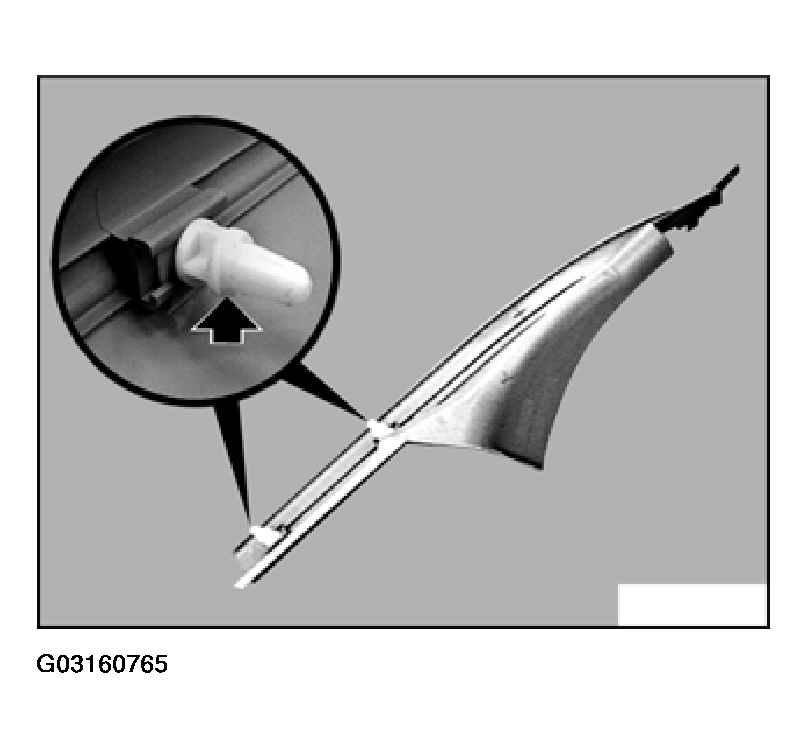

Fig 3: Replace Any Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
