36 11 520 Removing and installing/replacing RDC control module

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

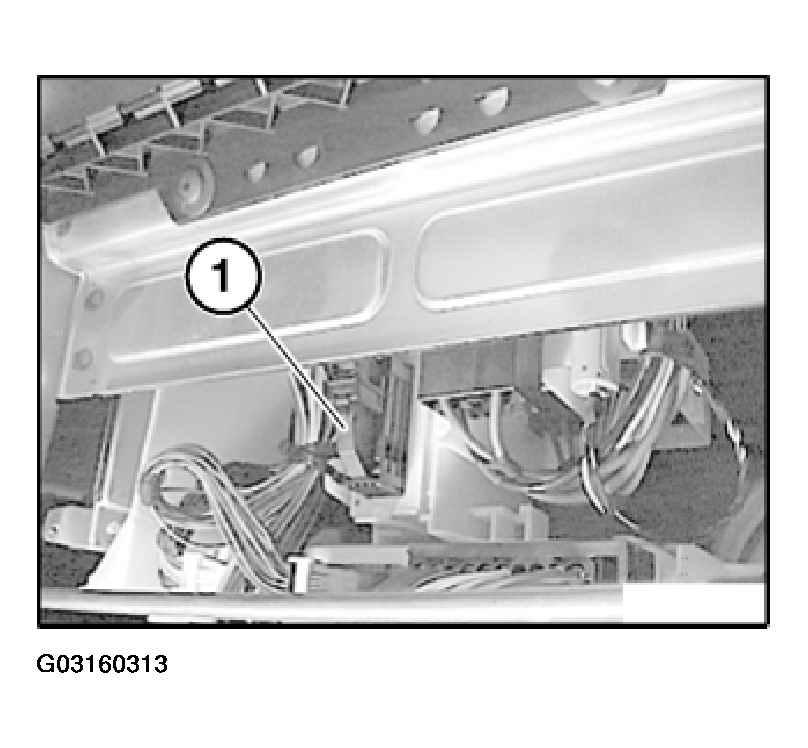

Unfasten plug connection (1) and disconnect.

Fig 1: Disconnecting RDC Control Module Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

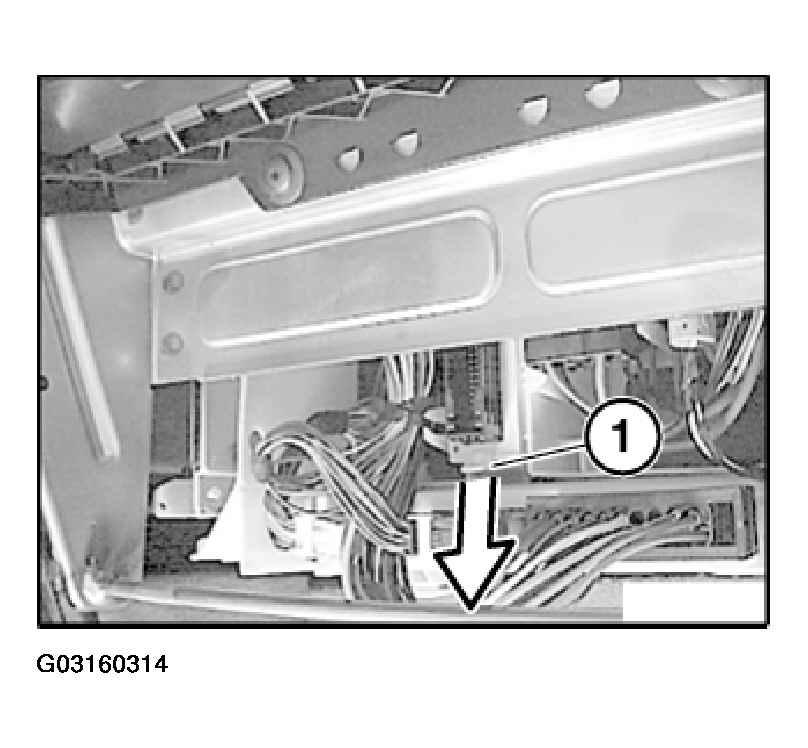

Press lock (1) downwards.

Fig 2: Pressing Lock Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

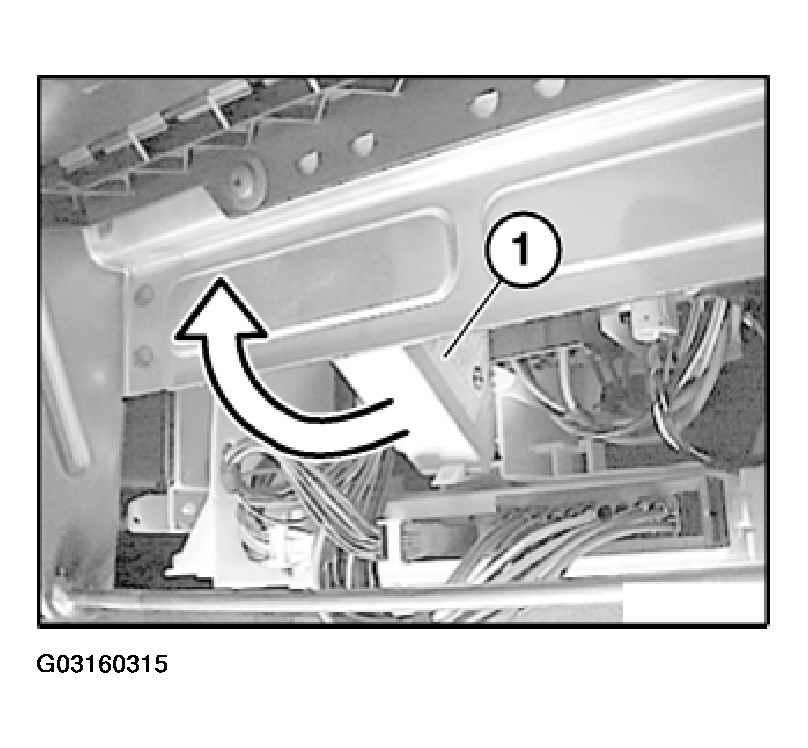

Tilt RDC control module (1) upwards, turn through 90°and remove vertically towards bottom.

Fig 3: Removing RDC Control Module

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not damage control module carrier.
