67 11 555 Removing and installing/replacing servodrive for tank filler flap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear wheel arch cover, right. Refer to 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER .

Loosen screws (1).

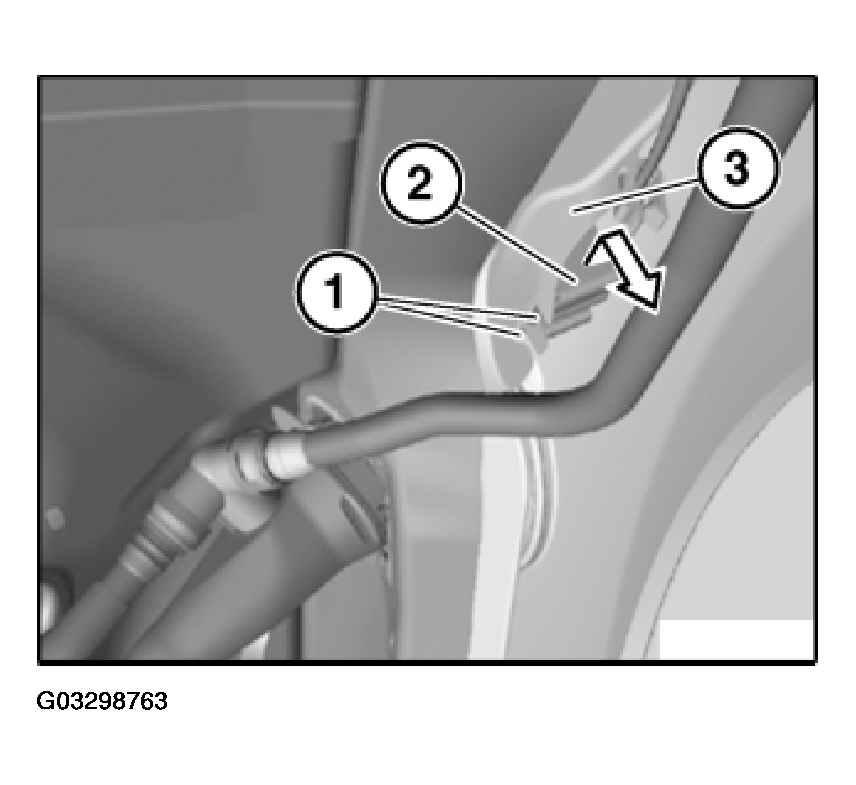

Fig 1: Removing Servodrive For Fuel Filler Flap

G03298763

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure servodrive for fuel filler flap (2) is correctly adjusted.

It must be possible to lock or unlock the fuel filler flap completely.

Feed servodrive for fuel filler flap (2) in direction of arrow out of mounting plate (3).

Installation:

To make it easier to feed in, pull out locking pin for fuel filler flap (2) completely.

Unlock plug connection behind and disconnect.

Detach emergency actuation pull strap on servodrive for fuel filler flap (2).

Remove servodrive for filler flap (2).

Turn sleeve (1) with a suitable tool (e.g.: pointed pliers) approx.

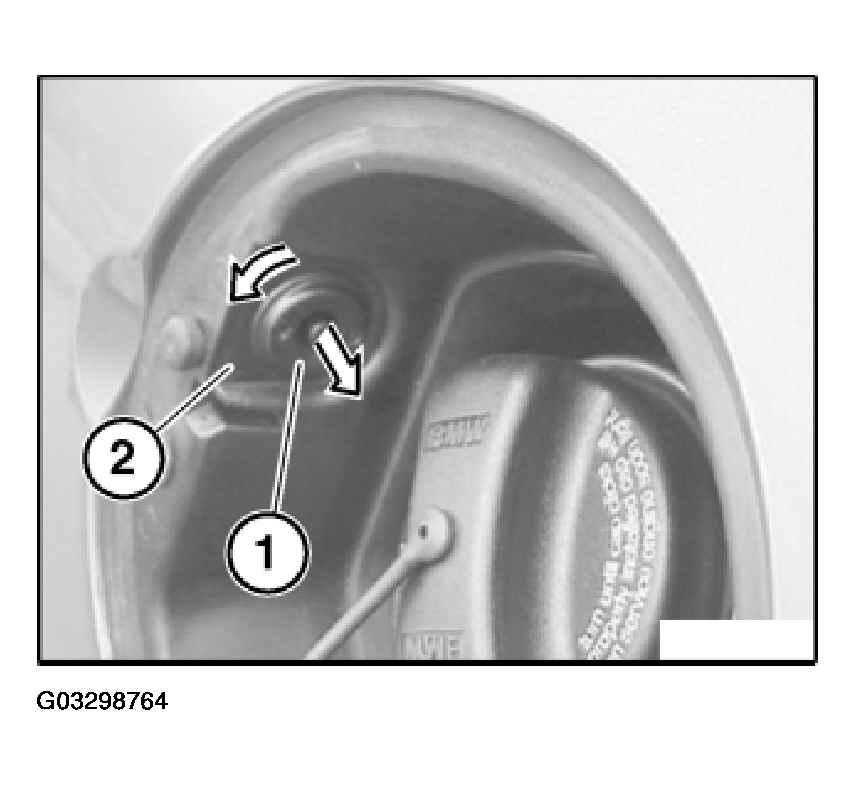

Fig 2: Removing Sleeve

G03298764

Courtesy of BMW OF NORTH AMERICA, INC.

45° in direction of arrow and pull out of cover housing (2).

Installation:

Make sure sleeve (1) is correctly seated on locking pin for tank filler flap (2).

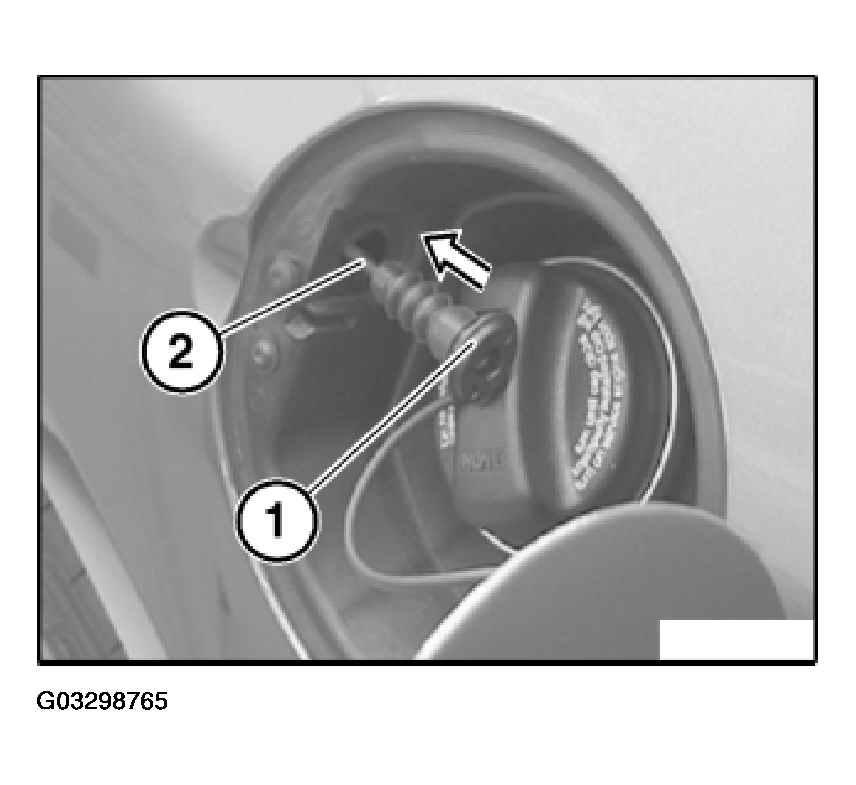

Fig 3: Installing Sleeve

G03298765

Courtesy of BMW OF NORTH AMERICA, INC.
