51 71 041 Removing and installing/replacing rear left or right wheel arch cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks: Remove rear wheel. See WHEEL AND TIRES - REPAIR INSTRUCTIONS . Remove splash guard. See 51 71... Removing And Installing/Replacing Rear Left Or Right Wheel Arch Splash Guard .

Release nut (1) and clips (2). Remove cover (3).

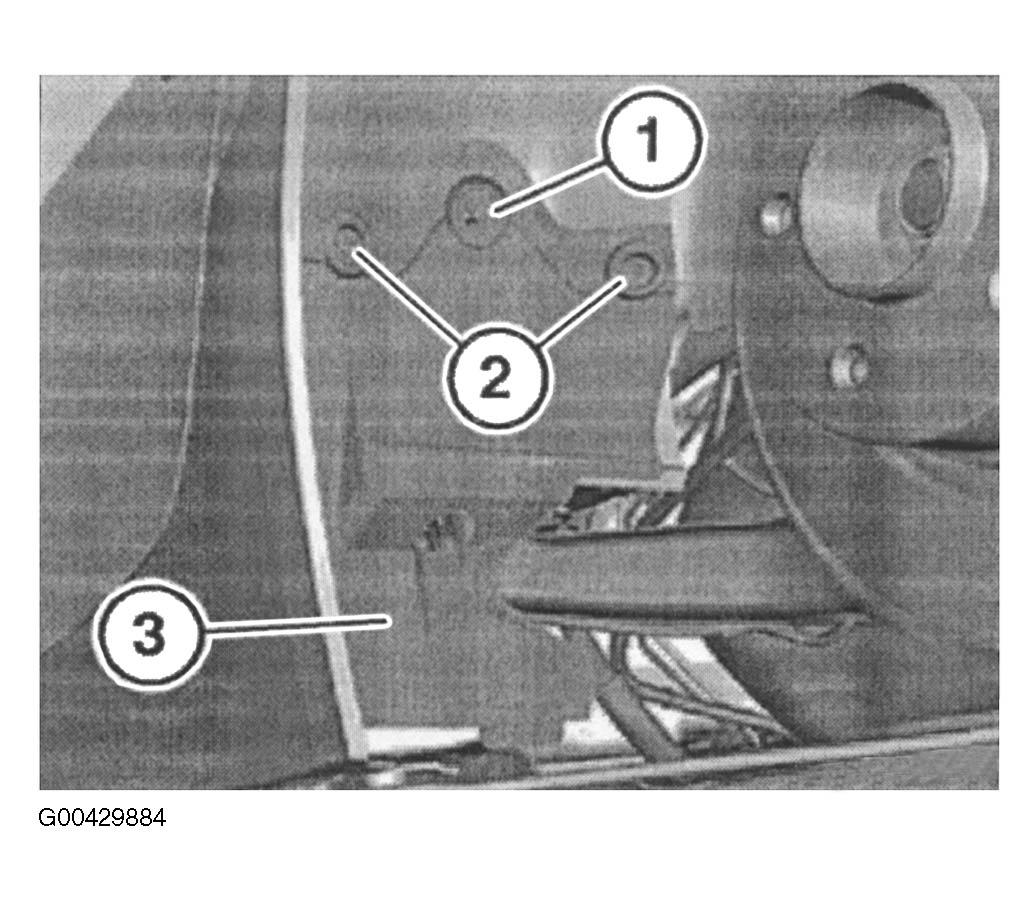

Fig 1: Releasing Nut (1) And Clips (2) And Removing Cover (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and nuts (2). Feed out wheel arch cover (3) towards bottom.

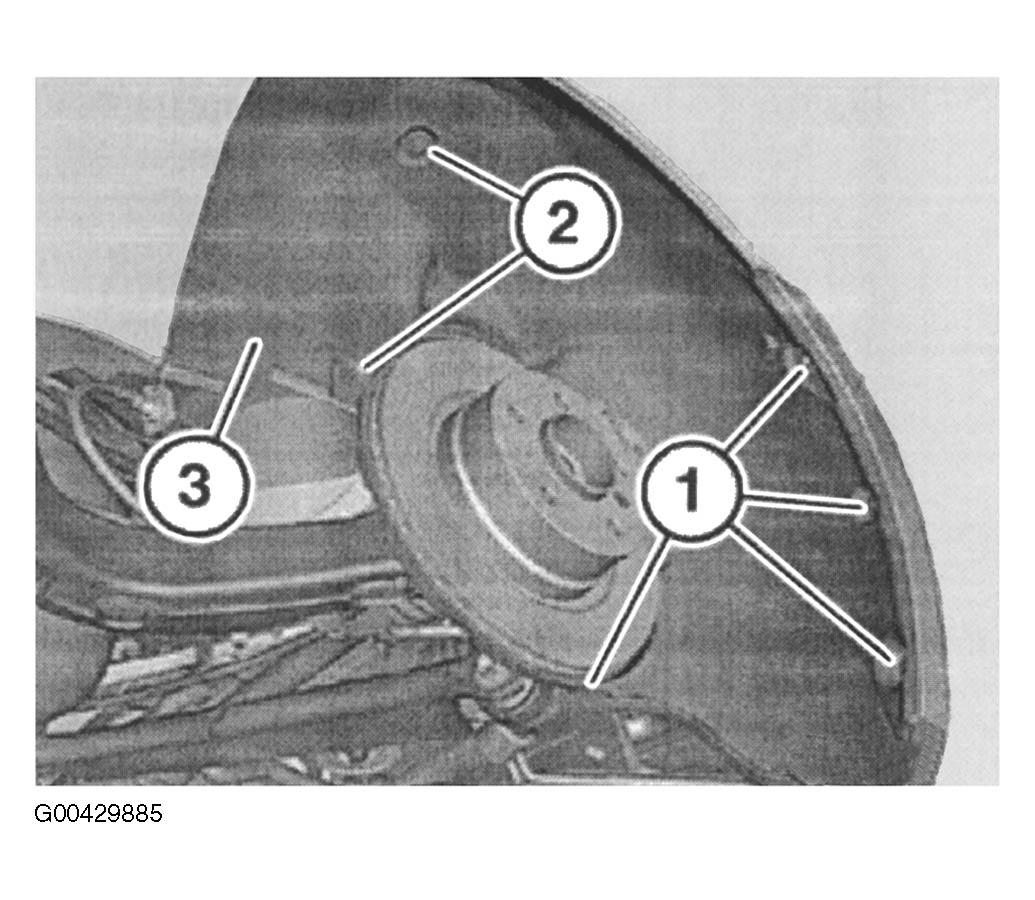

Fig 2: Feeding Out Wheel Arch Cover (3) Toward Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
