65 13 070 Removing and installing/replacing speaker (mid-range speaker in door trim panel)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

NOTE: Secure speaker against falling out.

Release nuts (1) and remove speaker (2) in direction of arrow from door trim (3).

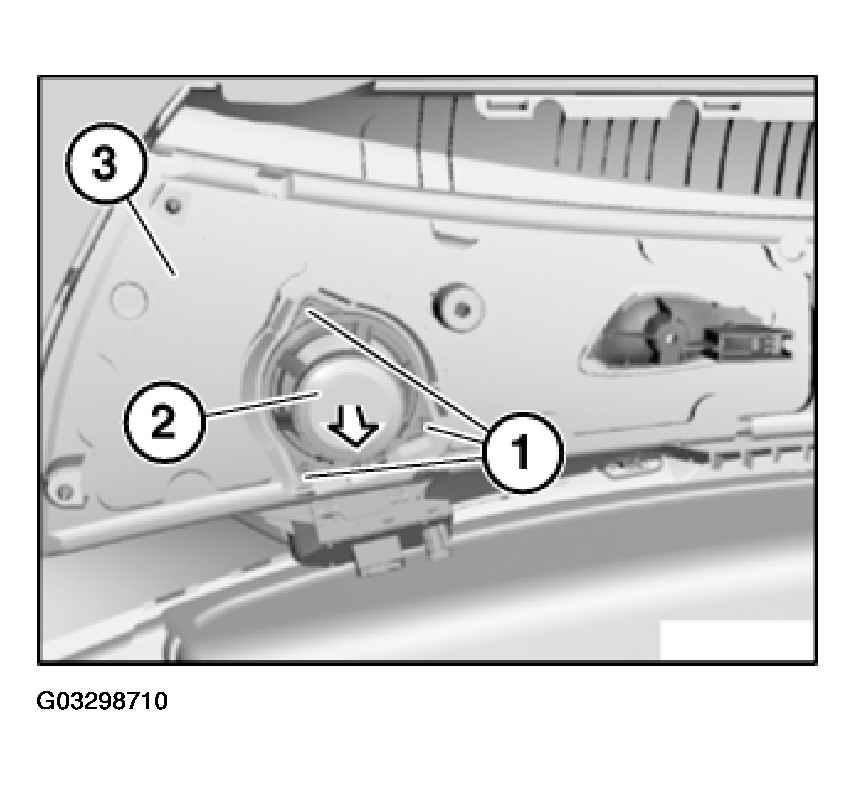

Fig 1: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
