54 34 130 Removing and installing or replacing headlining in convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .
Release trim on convertible top catch.

When replacing (EH convertible top):

Remove trim . See 54 34 125 Removing And Installing/Replacing Trim On Convertible Top Lock .

Release screws in area (1).

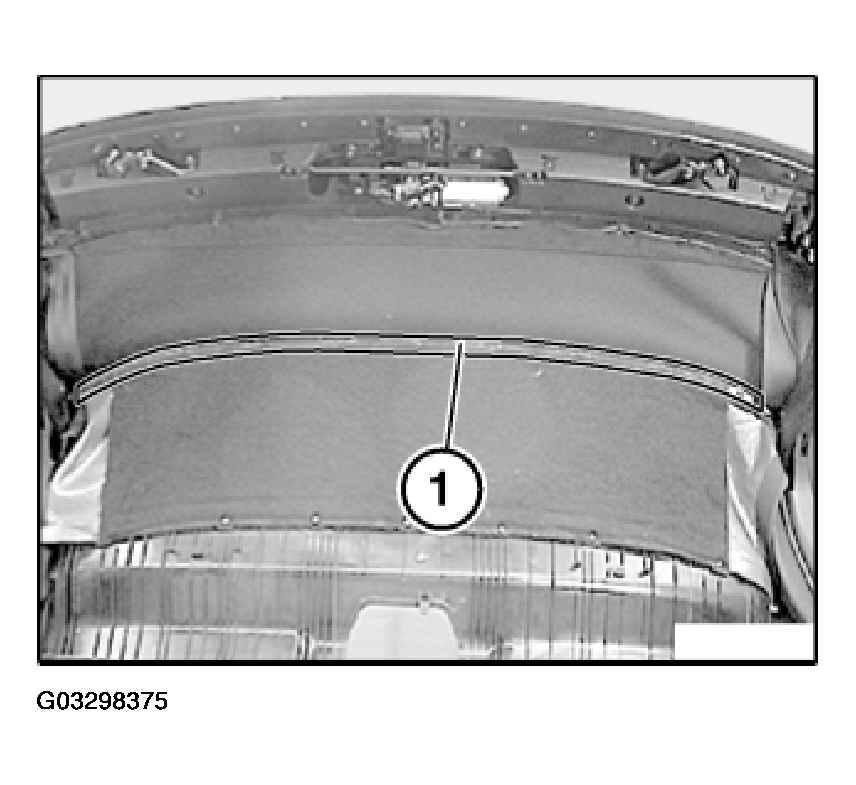

Fig 1: Releasing Screws In Area

G03298375

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) of front strap on convertible top strip on right and left.

Feed front strap (2) on right and left out of eyelet (3).

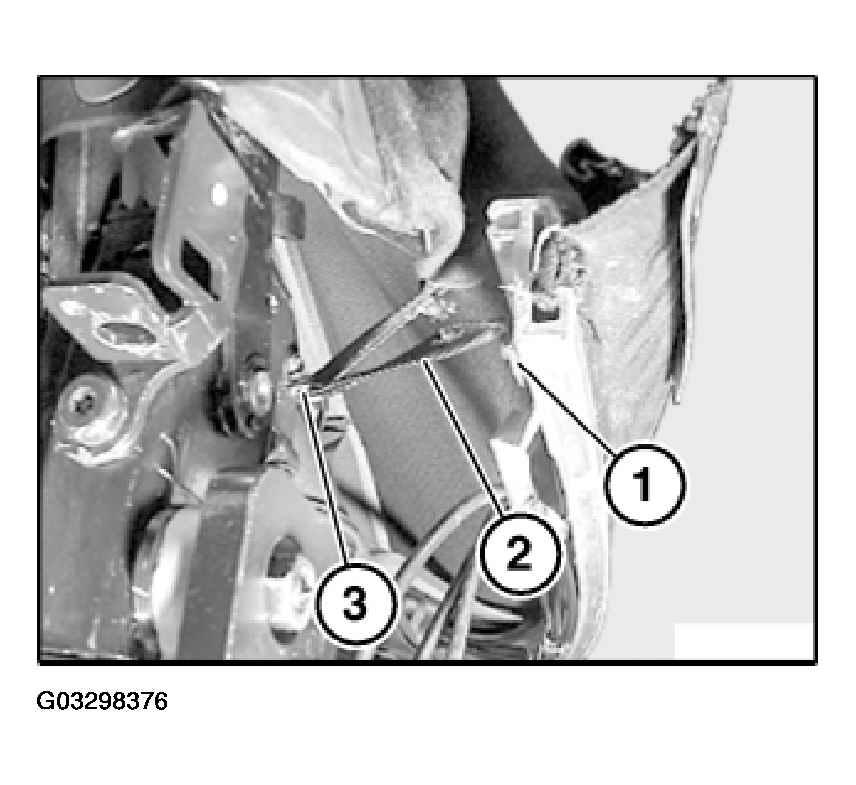

Fig 2: Feeding Front Strap On Right And Left Out Of Eyelet

G03298376

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) of front strap on convertible top strip on right and left.

Feed front strap (2) on right and left out of convertible top strip.

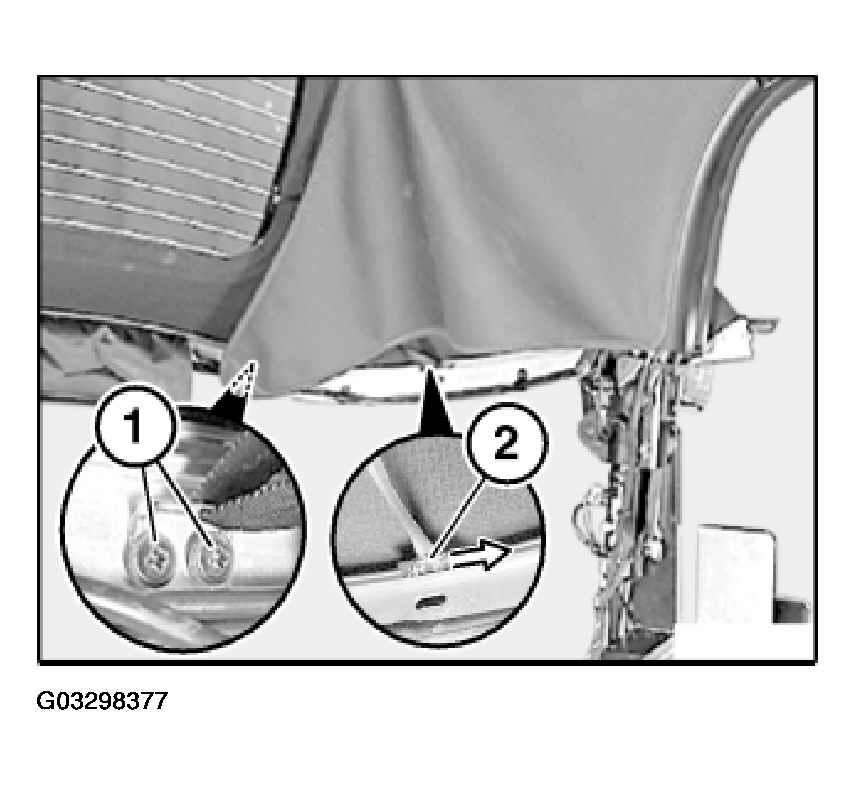

Fig 3: Releasing Screws Of Front Strap On Convertible Top Strip On Right And Left

G03298377

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in area (1) on lower bow.

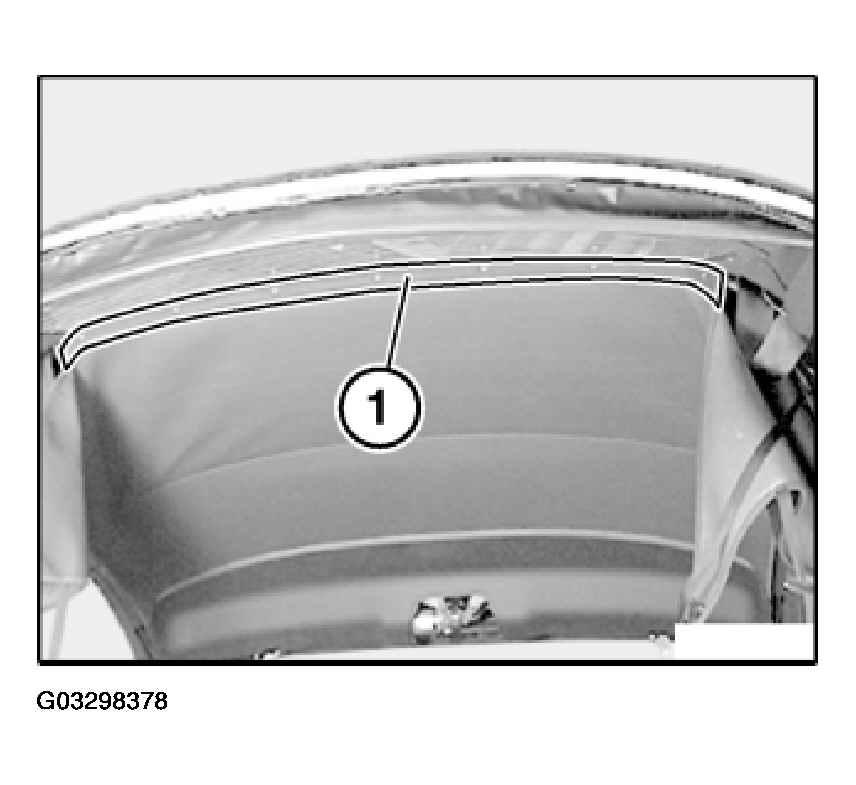

Fig 4: Releasing Screws On Lower Bow

G03298378

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws of front straps.

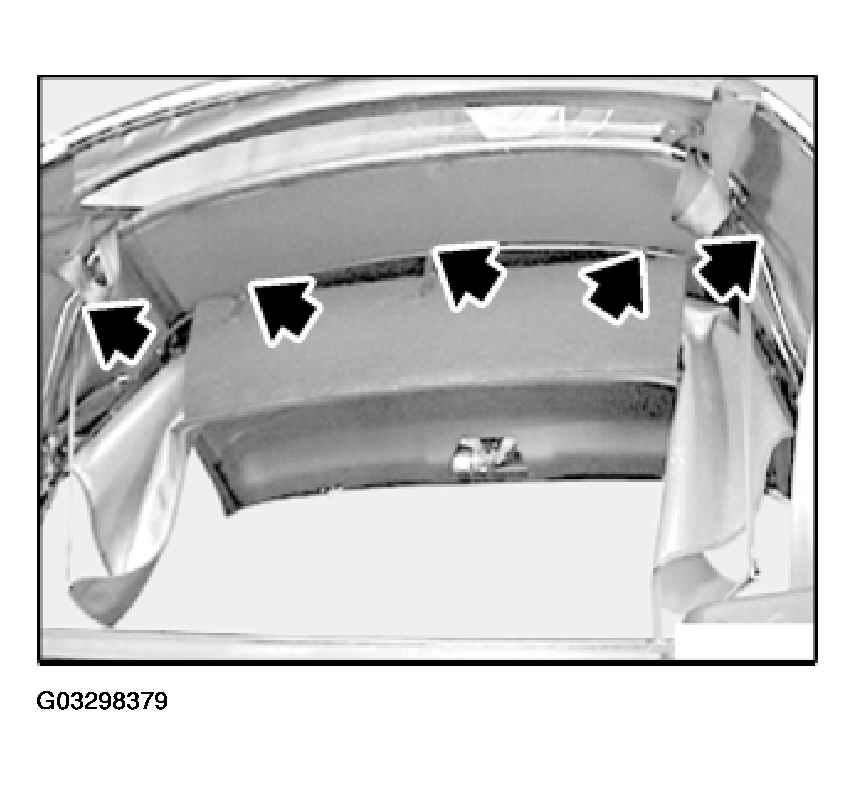

Fig 5: Releasing Screws Of Front Straps

G03298379

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet joints right and left.

Remove roofliner.

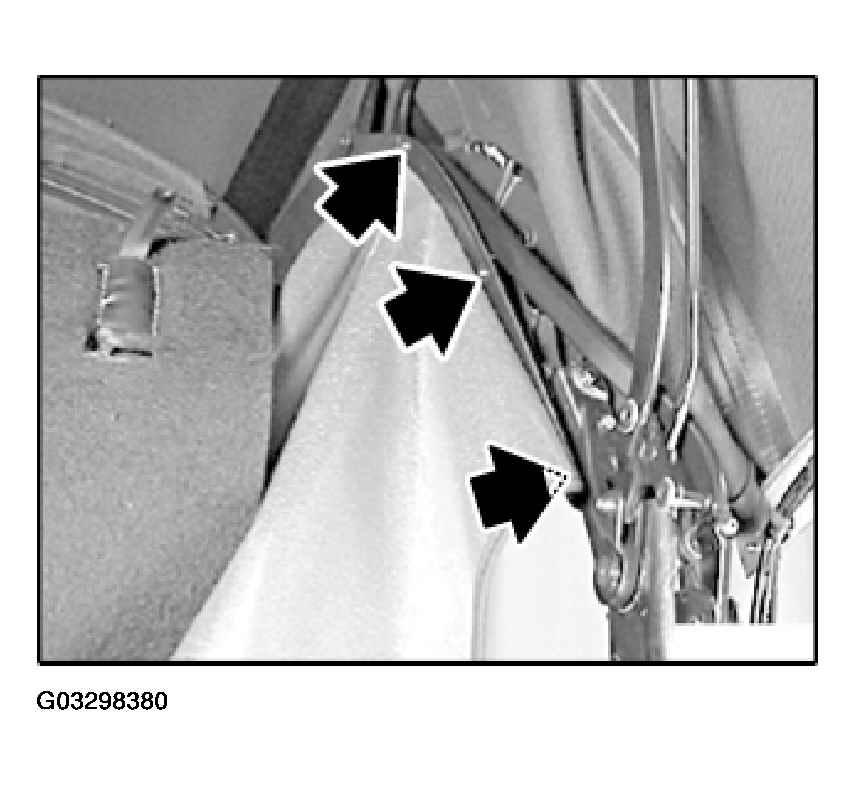

Fig 6: Removing Roofliner

G03298380

Courtesy of BMW OF NORTH AMERICA, INC.
