54 34 125 Removing and installing/replacing trim on convertible top lock

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open convertible top slightly.

Mechanical convertible top only:

Remove handle . See 54 31 024 Removing And Installing Or Replacing Handle For Convertible Top Cover Lock .

NOTE: Work is shown on the removed convertible top.

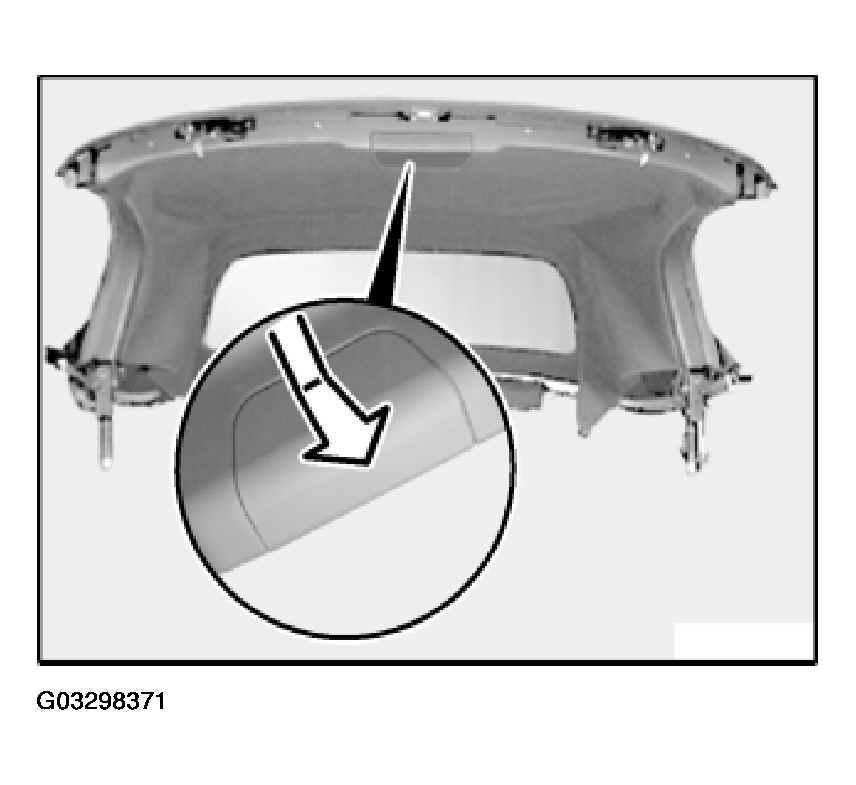

Press in cover from rear slightly and remove towards bottom.

Fig 1: Pressing In Cover From Rear Slightly And Removing Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

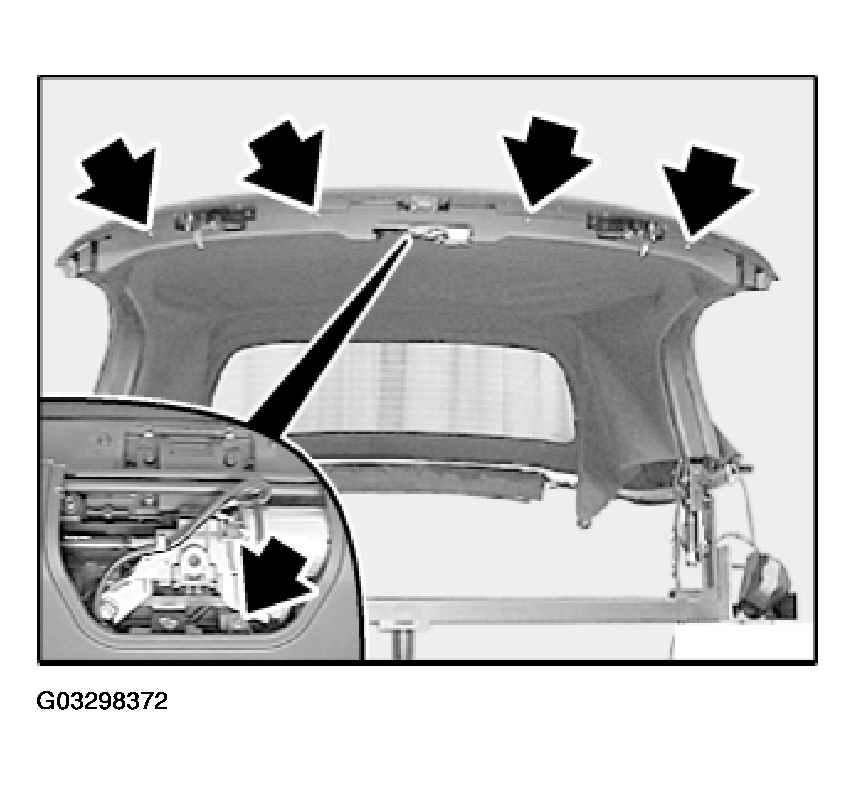

Unfasten screws.

Fig 2: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

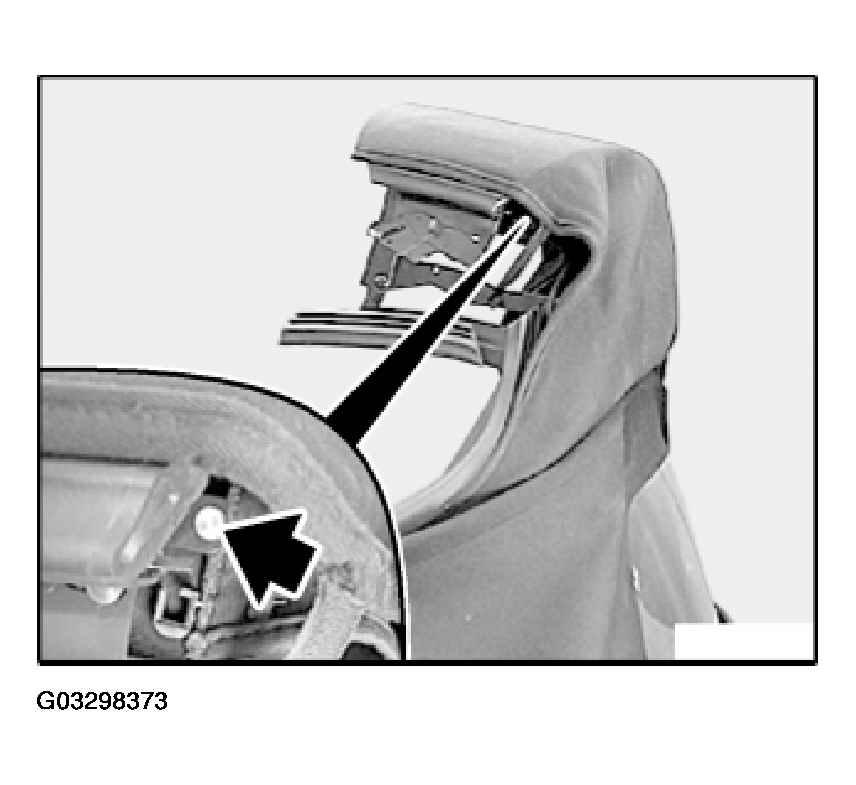

Open convertible top halfway.

Unscrew left and right bolts.

Fig 3: Opening Convertible Top Halfway

Courtesy of BMW OF NORTH AMERICA, INC.

For replacing EH convertible top only:

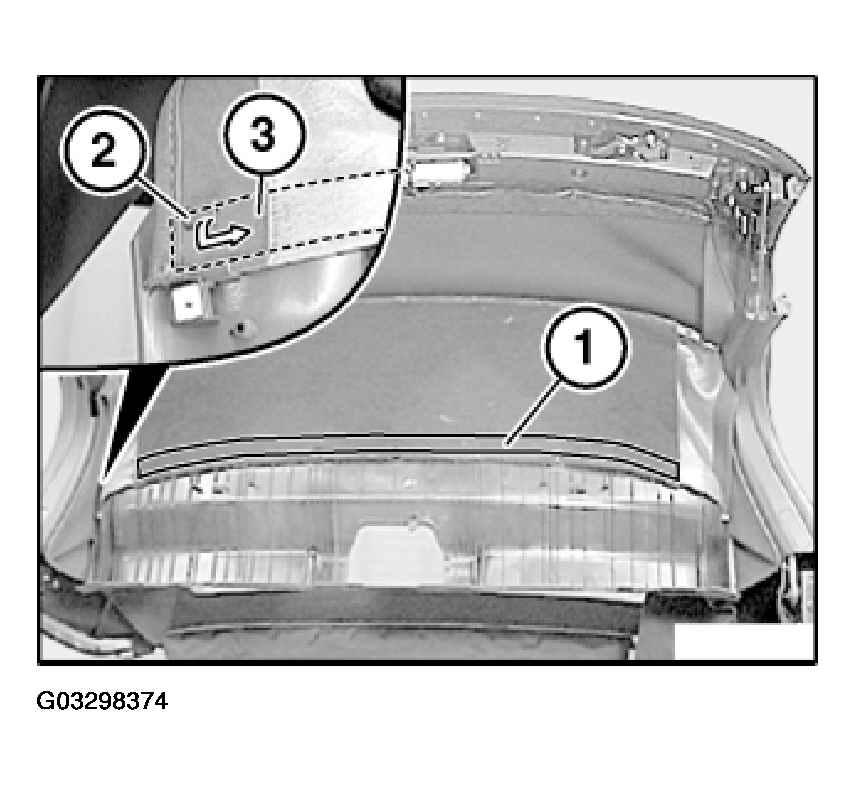

Release screws in area (1).
Unhook cover on right and left from guide (2) and pull with flat welt (3) to center from guide (2).
Remove trim.

Fig 4: Pulling Flat Welt To Center
Courtesy of BMW OF NORTH AMERICA, INC.
