54 31 024 Removing and installing or replacing handle for convertible top cover lock
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Removing handle:
- Open door windows slightly.
- Unlock convertible top and raise slightly (if necessary over dead center).

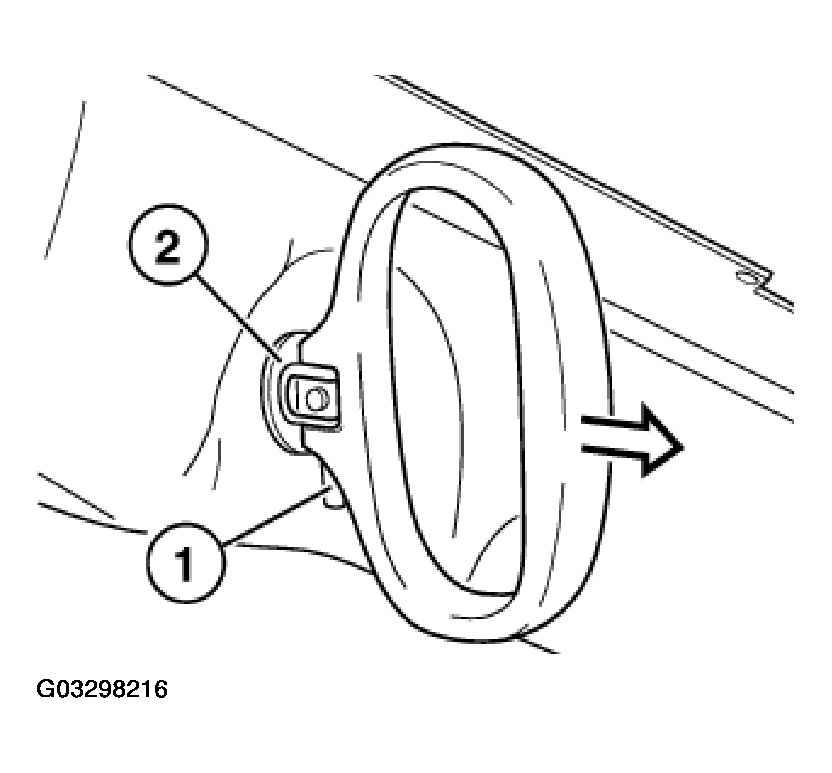

- Release screw (1).
- Remove handle.
- Detach rosette (2).
Installation:
Make sure handle is in correct folding position (towards rear). To feed in screw, forcefully press handle upwards.
