54 31 185 Removing and installing/replacing center mount for convertible top compartment floor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top compartment base . See 54 31 170 Removing And Installing/Replacing Convertible Top Compartment Floor .

Loosen screws (1).

Carefully remove center mount towards rear and disconnect plug connection.

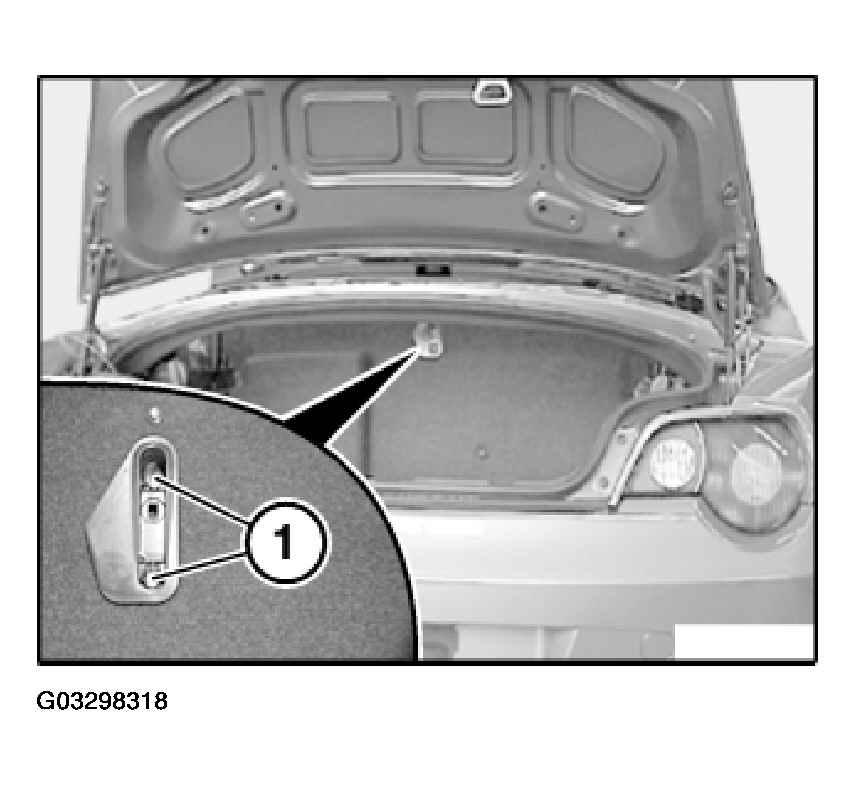

Fig 1: Removing Center Mount Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement only:

Remove microswitch . See 61 31 799 REMOVING AND INSTALLING/REPLACING MICROSWITCH .
