54 31 170 Removing and installing/replacing convertible top compartment floor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close convertible top
Open rear lid.

Move convertible top compartment floor downwards.

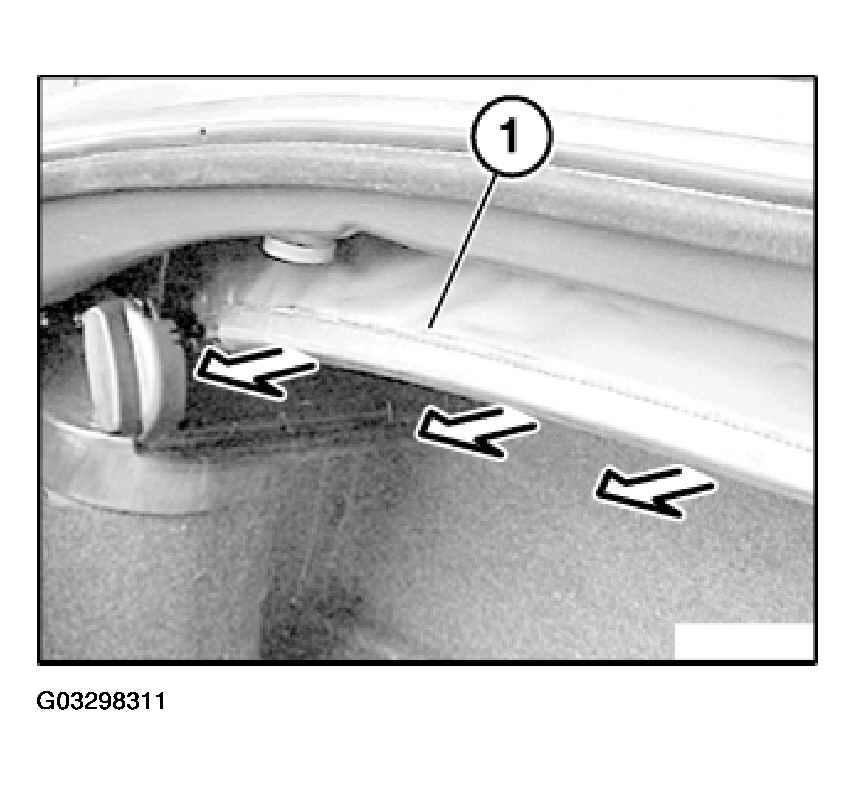

Feed cover (1) out of convertible top compartment floor towards rear

Fig 1: Feeding Cover Out Of Convertible Top Compartment Floor Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

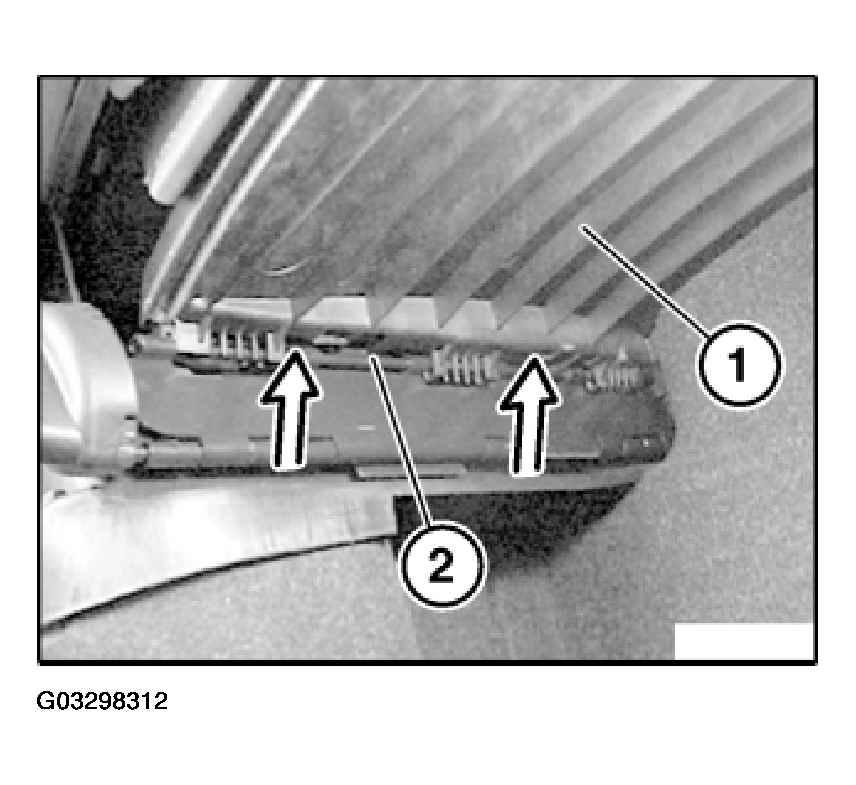

Unclip convertible top compartment floor (1) upwards out of mounting (2).

Installation:

Move mounting (2) downwards
Position convertible top compartment floor (1)
Move mounting (2) upwards
Clip in convertible top compartment floor (1) (press from passenger compartment)

Fig 2: Positioning Convertible Top Compartment Floor
Courtesy of BMW OF NORTH AMERICA, INC.

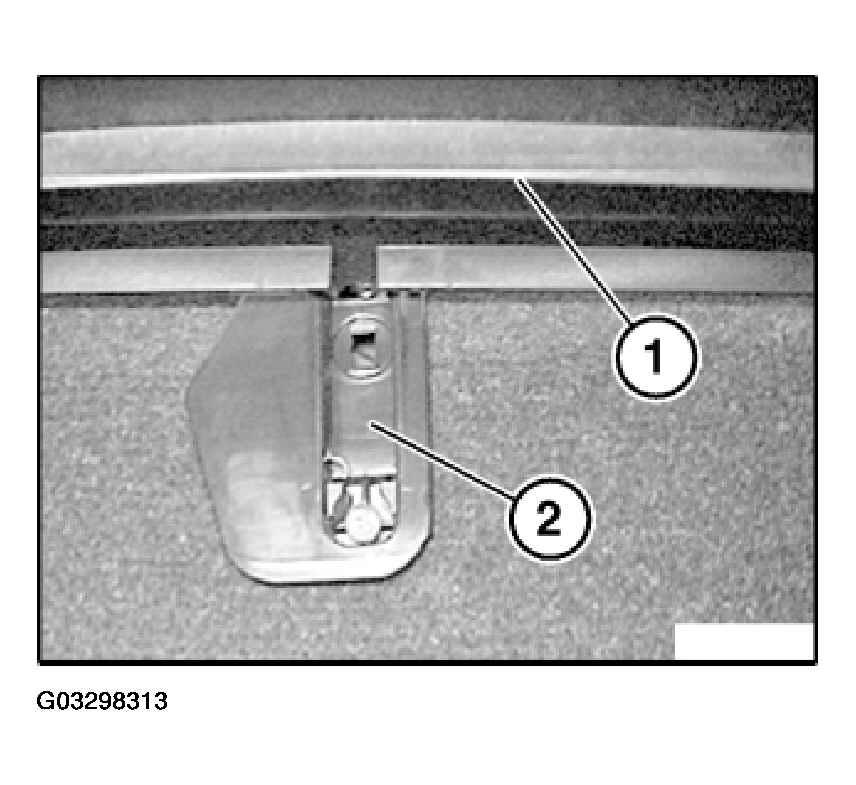

Feed convertible top compartment floor (1) out of center mount (2) towards rear and rear.

Fig 3: Feeding Convertible Top Compartment Floor Out Of Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.
