54 31 180 Removing and installing/replacing a mounting for convertible top compartment floor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open rear lid.
Remove convertible top compartment base . See 54 31 170 Removing And Installing/Replacing Convertible Top Compartment Floor .

Release screws (1 and 2) and remove expansion rivet (3).

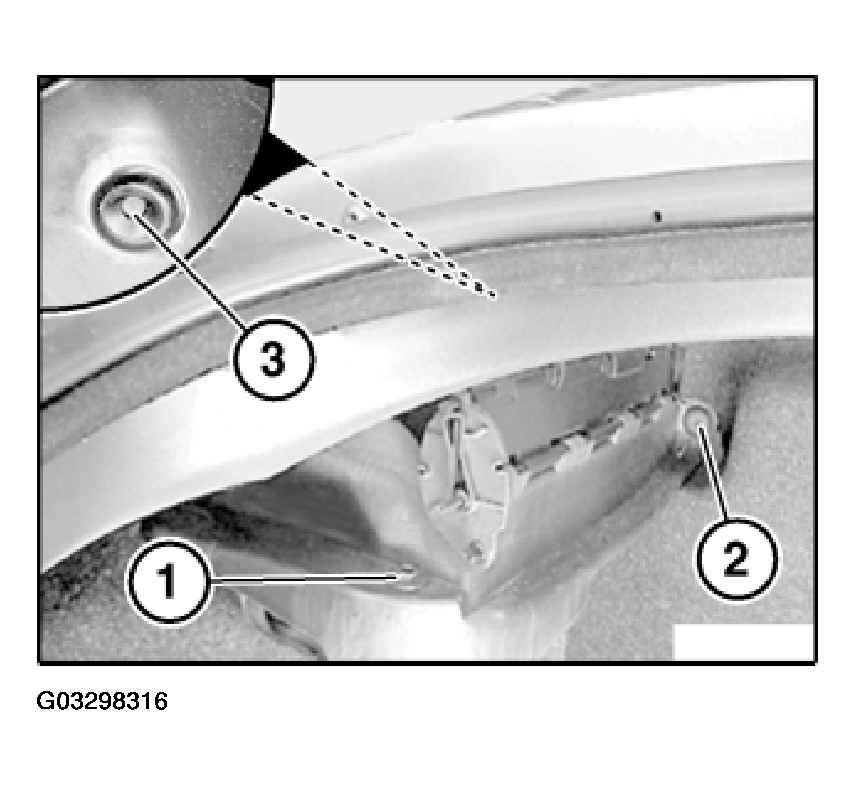

Fig 1: Releasing Screws And Removing Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out mounting towards rear top over spring strut cap.

Installation:

Feed in mounting under funnel.

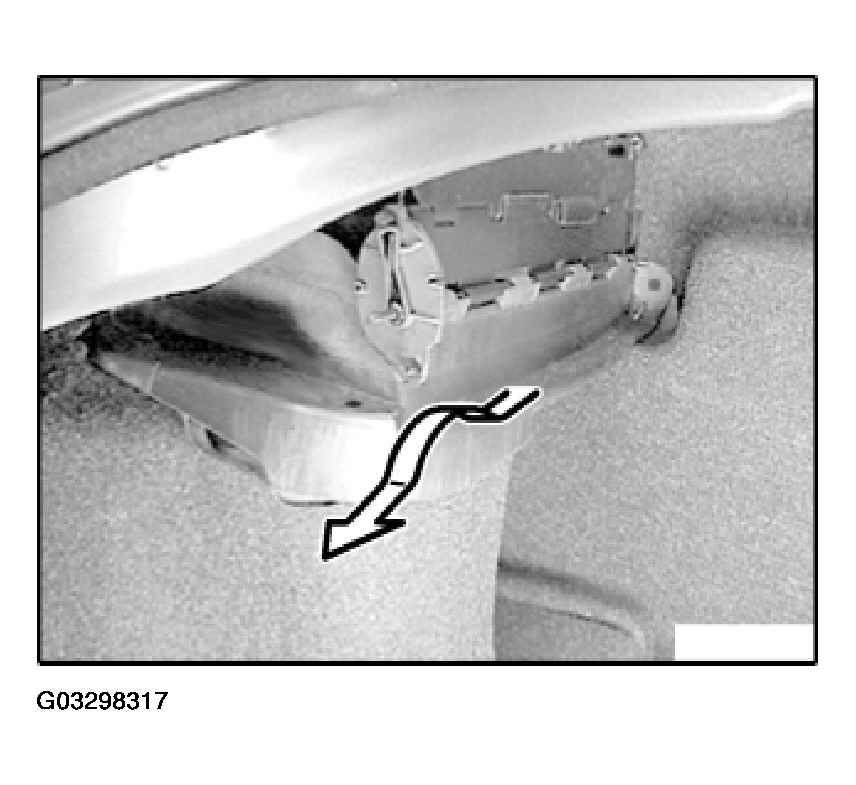

Fig 2: Feeding Out Mounting Towards Rear Top

Courtesy of BMW OF NORTH AMERICA, INC.
