54 31 190 Replacing convertible top center lock (mechanical)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim on convertible top compartment lid lock. See 54 34 125 Removing And Installing/Replacing Trim On Convertible Top Lock .

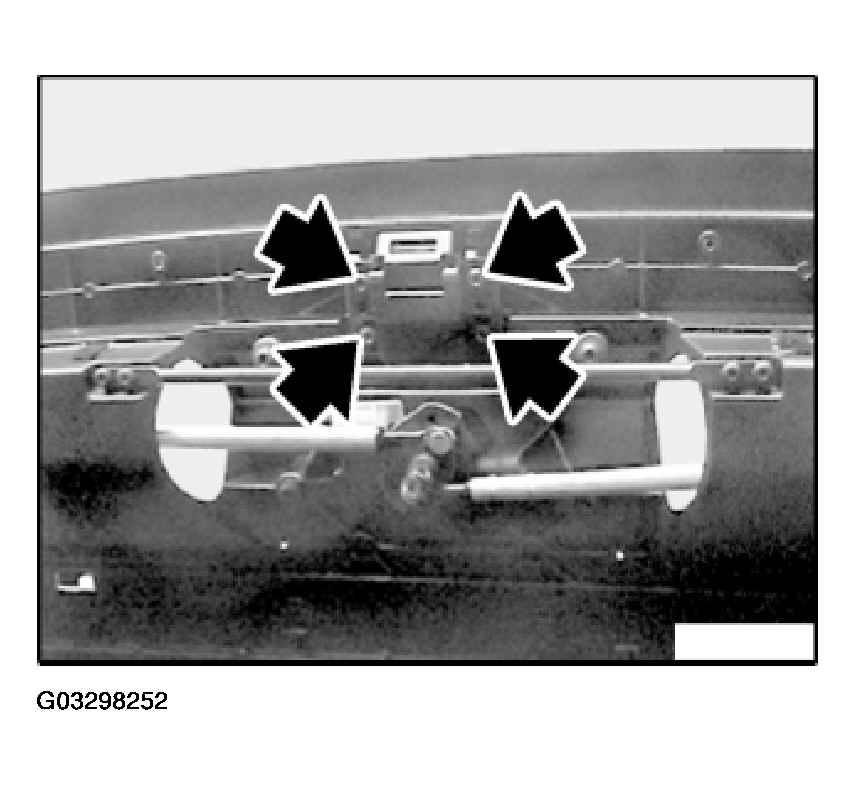

Release screws, remove holder and lock.
Tightening torque, see 54 31 17AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .
