54 31 140 Removing and installing/replacing convertible top catch turn cross

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Do not remove convertible top.
Remove actuating rods on catch (remove convertible top catch). See 54 31 060 Removing And Installing/Replacing Left Or Right Convertible Top Catch (Mechanical) .

Loosen screws (1).

Tightening torque, see 54 31 15AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Remove reinforcement brace (2).

Release screws (3) from turn cross (4).

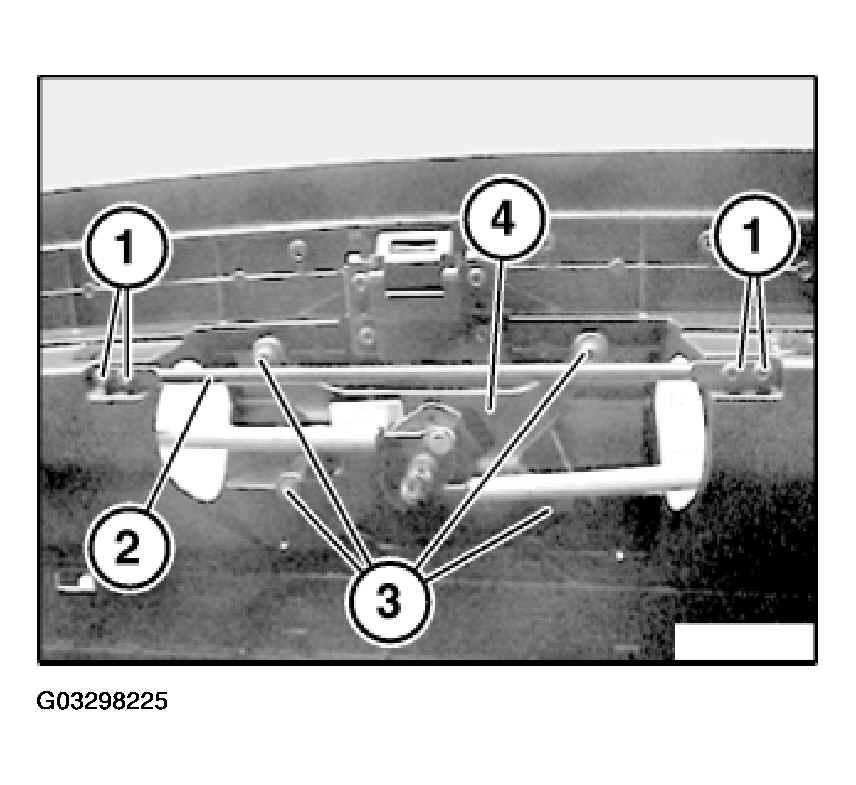

Fig 1: Releasing Screws From Turn Cross

Courtesy of BMW OF NORTH AMERICA, INC.

Remove turn cross towards bottom front.

Installation:

Basic adjustment is necessary in event of replacement.

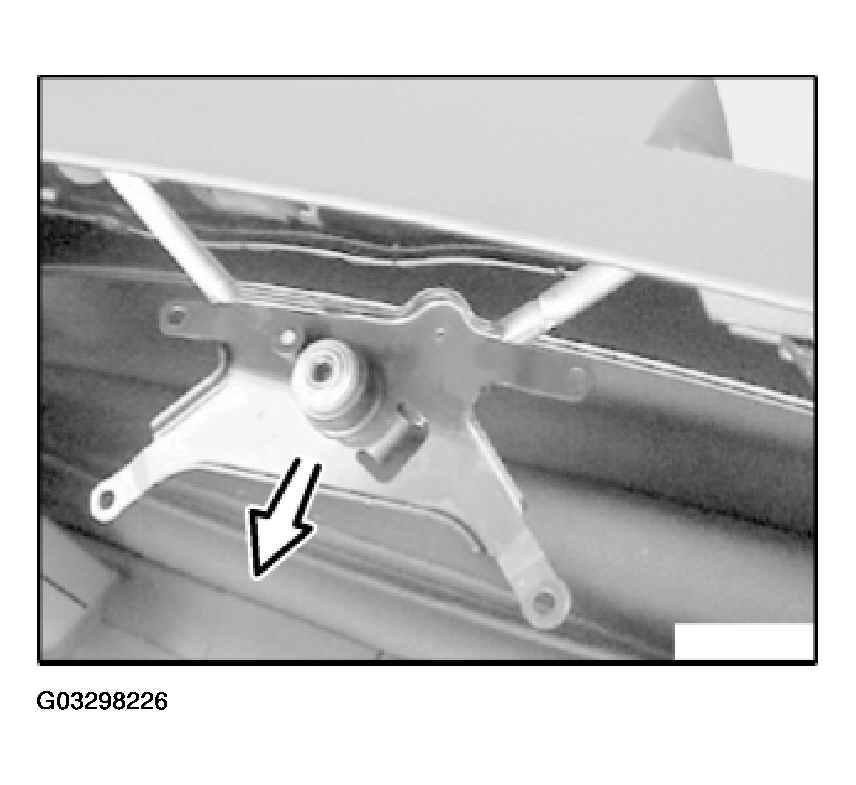

Fig 2: Removing Turn Cross Towards Bottom Front

Courtesy of BMW OF NORTH AMERICA, INC.
