54 31 060 Removing and installing/replacing left or right convertible top catch (mechanical)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top fabric from 1st bow. See 54 34 120 Replacing convertible top fabric .

Remove cover (1 or 2) upwards.

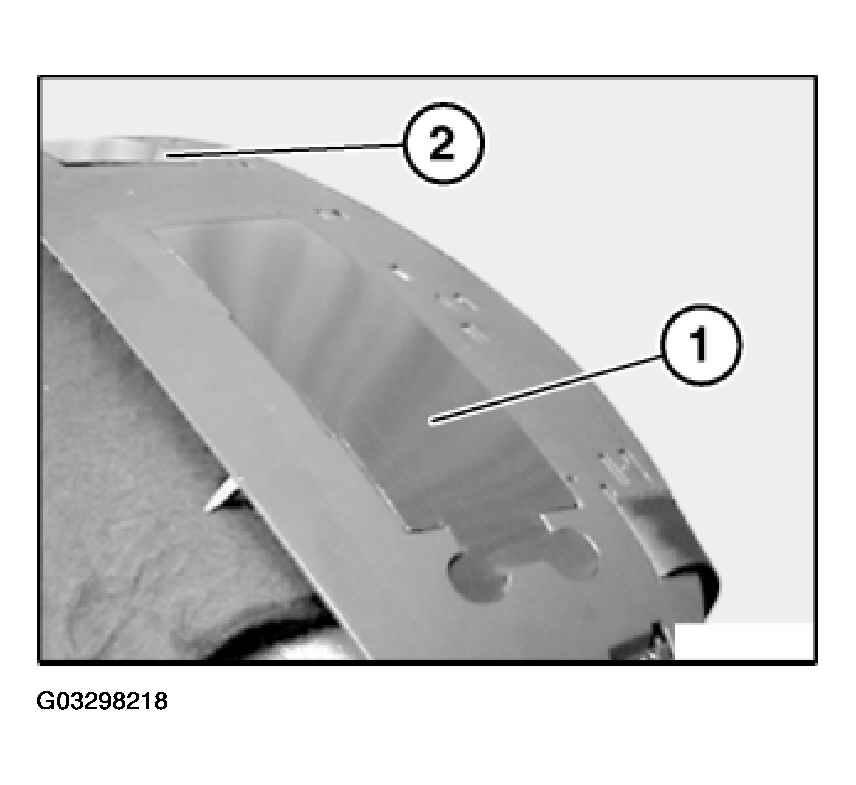

Fig 1: Removing Cover Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Tightening torque, see 54 31 15AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Releasing actuating rod (2):

Slide retainer spring (3) to end of rod.
Detach actuating rod from ball end.

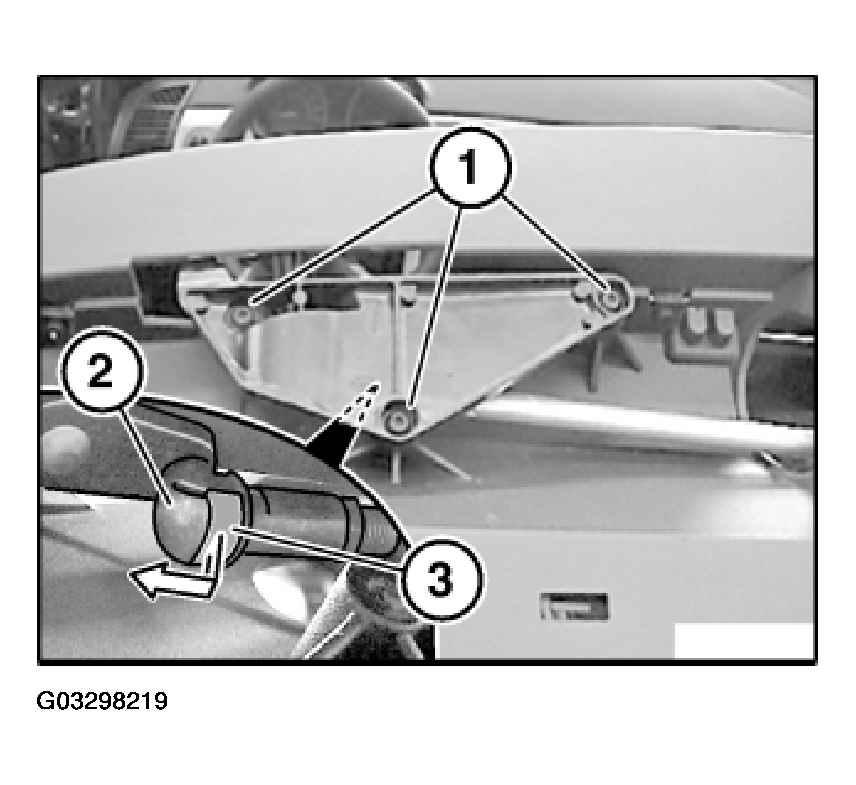

Fig 2: Releasing Actuating Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Basic adjustment is necessary in event of replacement:

Install both catches and turn cross.
Move safety catch (1) into closed position.
Check dimension A = 78.5+/-0.5 mm.
The dimension can be altered by turning the ball socket (2):
- Screw in = dimension A is reduced
- Screw out = dimension A is increased

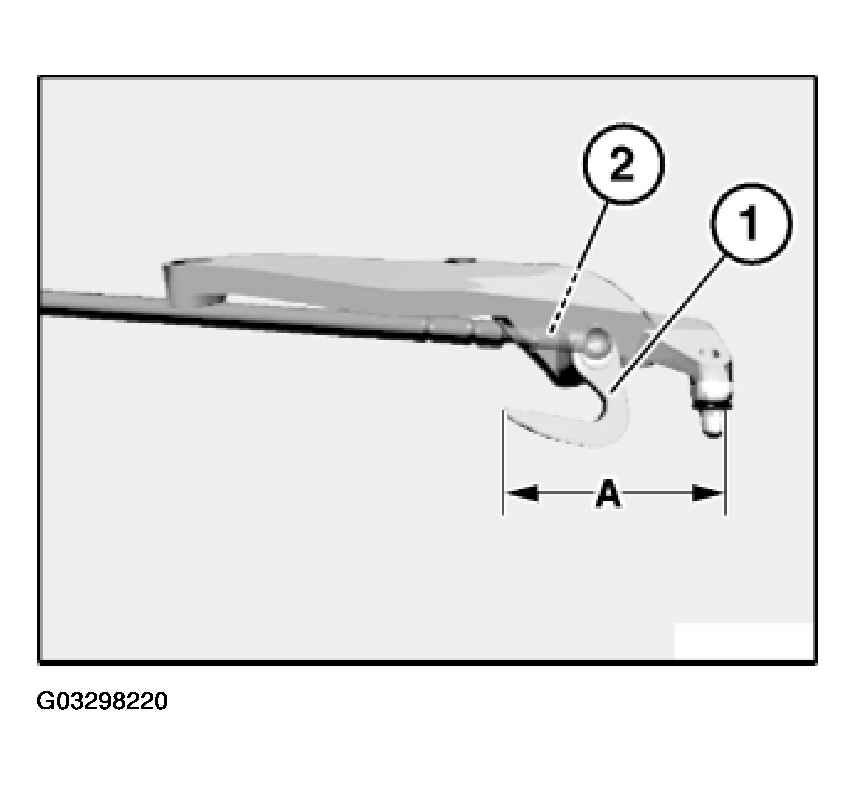

Fig 3: Checking Dimension
Courtesy of BMW OF NORTH AMERICA, INC.
