51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front entrance cover strip (inside) . See 51 47 000 Removing And Installing/Replacing Front (Inside) Left Or Right Entrance Cover Strip .
- Remove trim for instrument panel at bottom right. See 51 45 181 Removing And Installing/Replacing Trim For Instrument Panel, Bottom Right .

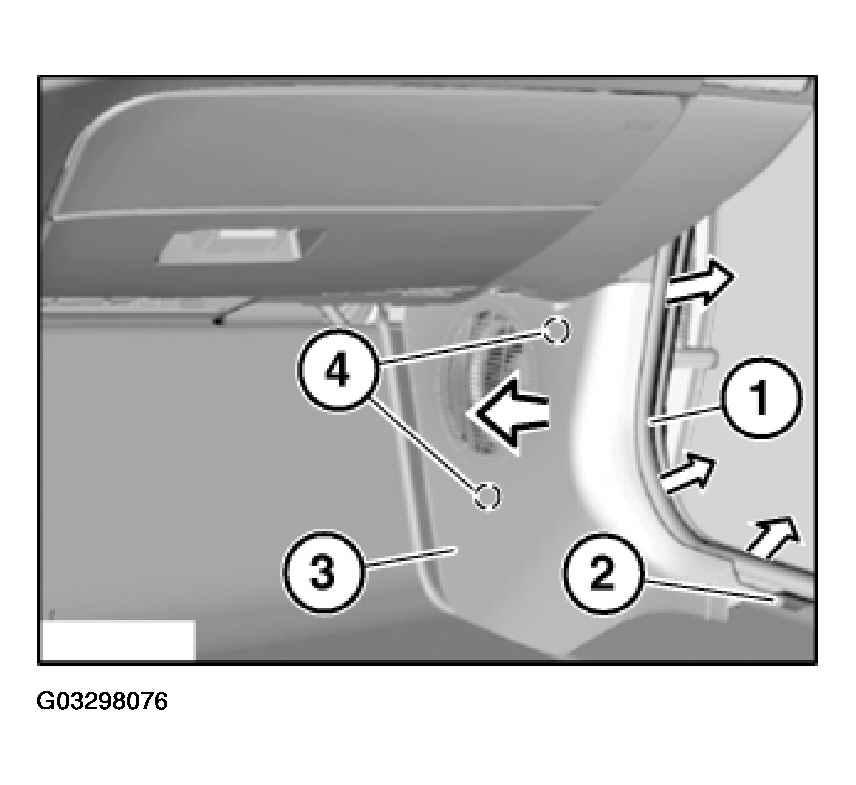

Release door mucket (1) in area of footwell side trim panel on A-pillar on right (3).
Release screw (2).
Unclip footwell side trim panel on A-pillar on right (3) in direction of arrow from retaining points (4).
Remove footwell side trim panel on A-pillar on right (3).
Installation:

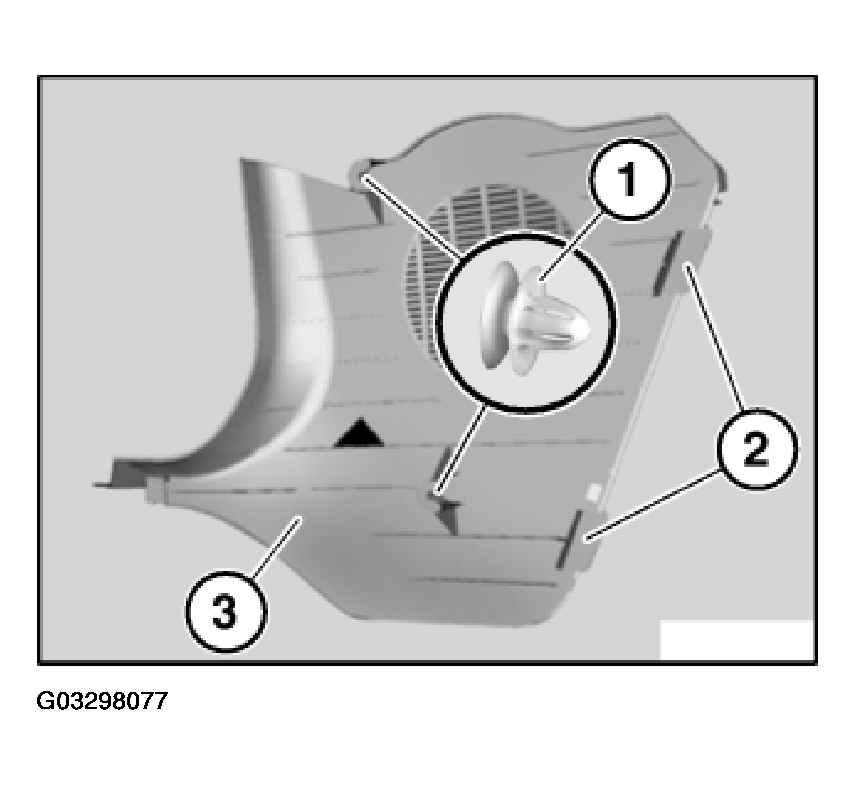

If necessary, lever out clips (1) remaining in bores.
If necessary, replace faulty clips (1).
Make sure lugs (2) are correctly seated in associated mountings.
Place footwell side trim panel on A-pillar on right (3) preinstalled with clips (1) on associated bores and clip into place.
