51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

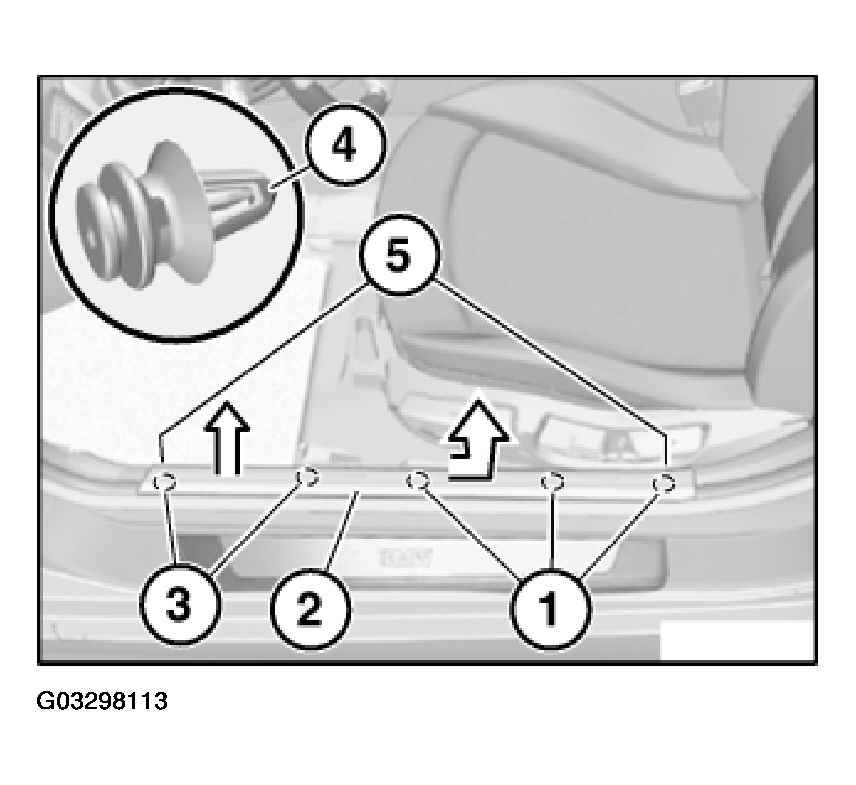

Disengage retaining lugs (5) of front entrance cover strip (2) from both adjoining panels.
IMPORTANT:
Carefully lever out front entrance cover strip (2).
Lever out front entrance cover strip (2) at front retaining points (3).
Pull back front entrance cover strip (2) and feed out of rear retaining points (1).
Installation:
Position front entrance cover strip (2) preinstalled with clips (4) on associated bores and clip into place.
Installation:

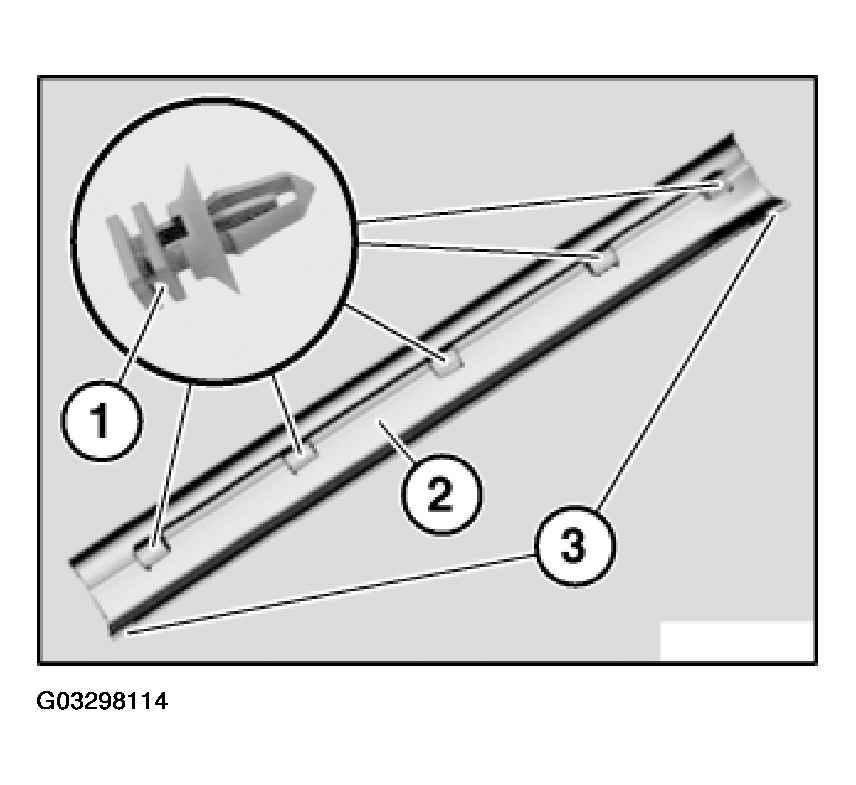

Clip mounts of front entrance cover strip (2) must not be damaged.
Retaining lugs (3) of front entrance cover strip (2) must not be damaged.
If necessary, lever out clips (1) remaining in floor pan.
If necessary, replace faulty clips (1).
Slide clips (1) into clip mounts of front entrance cover strip (2).
