51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front entrance cover strip (inner) . See 51 47 000 Removing And Installing/Replacing Front (Inside) Left Or Right Entrance Cover Strip .
Remove trim panel for pedal assembly . See 51 45 185 Removing And Installing/Replacing Trim For Pedal Assembly .

Release screw (1).

Remove engine hood actuating lever (2) in direction of arrow from footwell side trim panel on A-pillar on left (3).

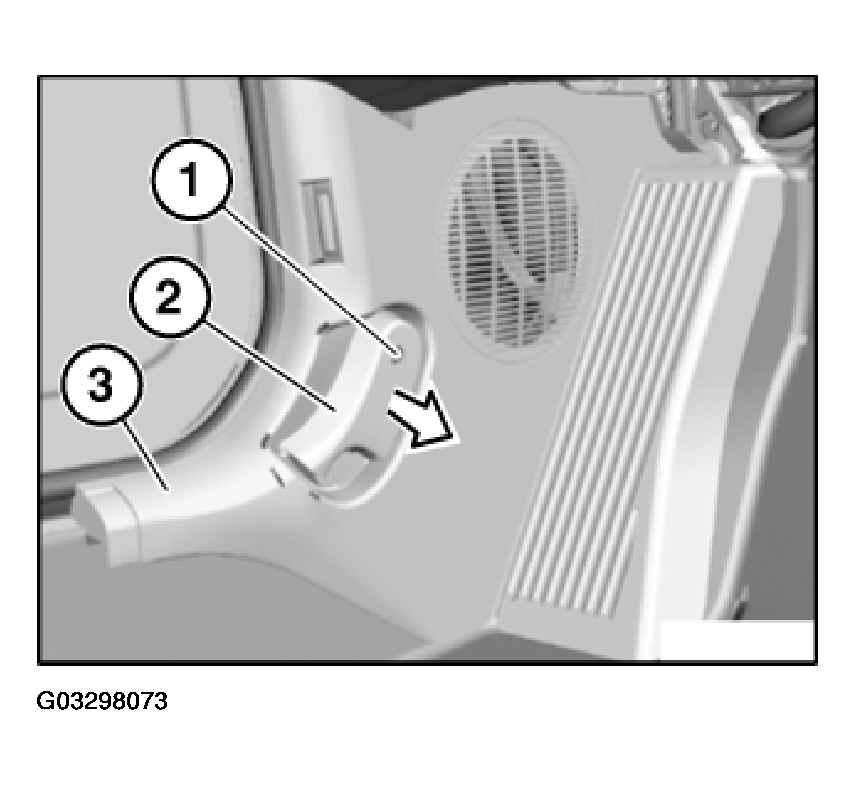

Fig 1: Removing Engine Hood Actuating Lever (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Release door mucket (2) in area of footwell side trim panel on A-pillar on left (5).

Release screws (1).

Unclip footwell side trim panel on A-pillar on left (5) in direction of arrow from retaining points (4).

Unlock plug connection from rear lid unlocking switch (3) and disconnect.

Remove footwell side trim panel on A-pillar on left (5).

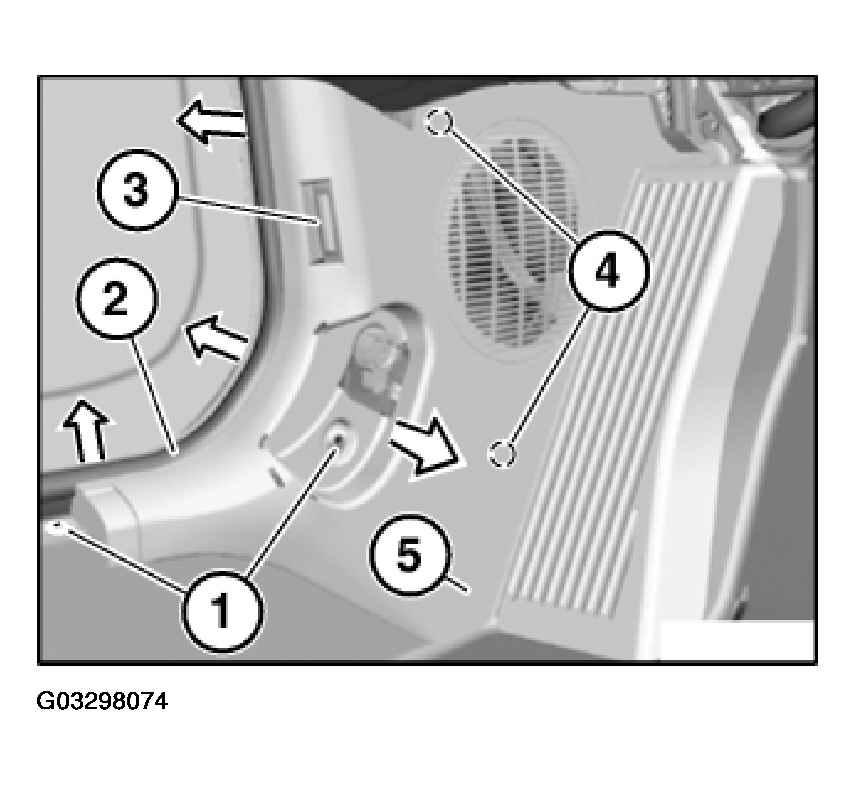

Fig 2: Removing Footwell Side Trim Panel On A-Pillar On Left (5)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (3) remaining in bores.

If necessary, replace faulty clips (3).

Make sure lug (4) is correctly seated in associated mounting.

Place footwell side trim panel on A-pillar on left (2) preinstalled with clips (3) on associated bores and clip into place.

Replacement:

Press catches and remove rear lid unlocking switch (1) and remove in direction of arrow.

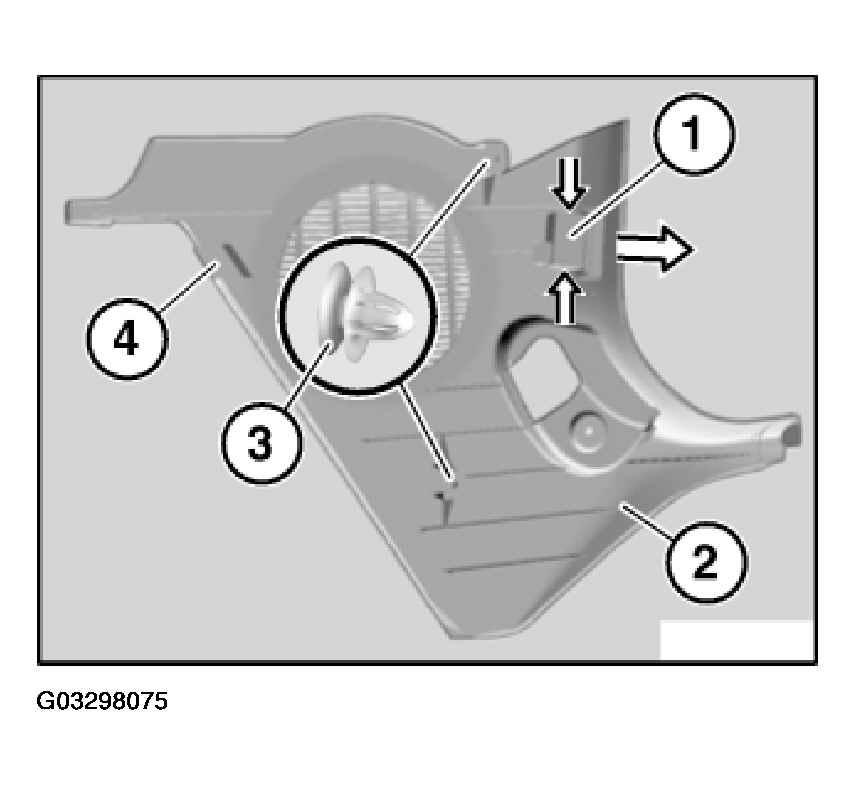

Fig 3: Identifying Location Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.
