51 43 015 Removing and installing/replacing rear left or right lower side trim section

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove entrance cover strip at front (inside). See 51 47 000 Removing And Installing/Replacing Front (Inside) Left Or Right Entrance Cover Strip .

Release seal (1).

Pull off cover (2) downwards.

Remove clips (3).

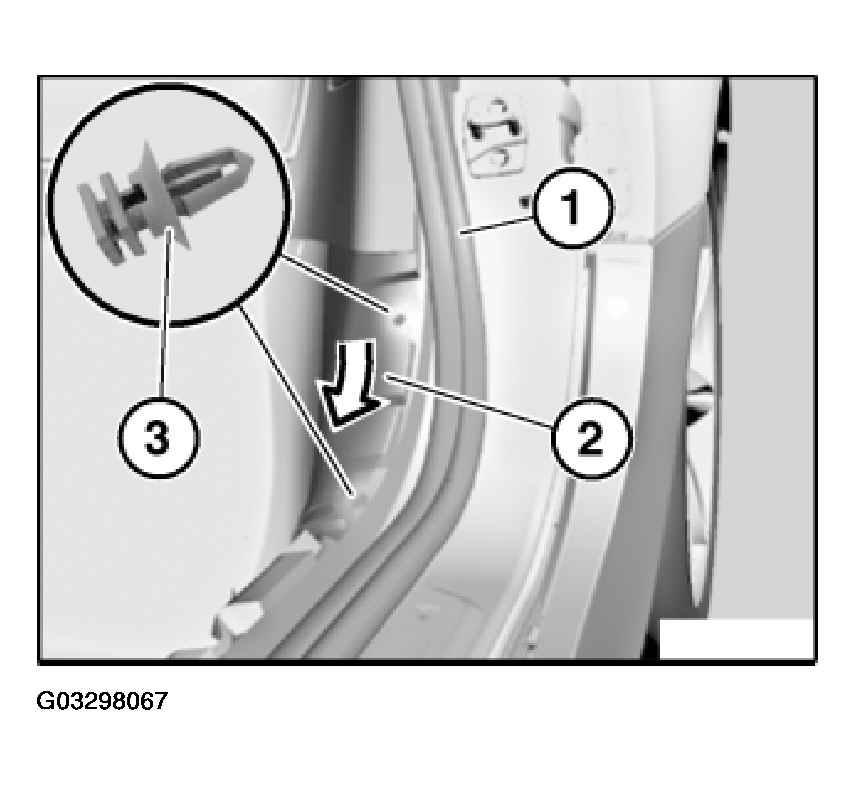

Fig 1: Releasing Seal (1), Pulling Off Cover (2) & Removing Clips (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Side trim (1) must not be damaged.

Attach clips (2) before installation.

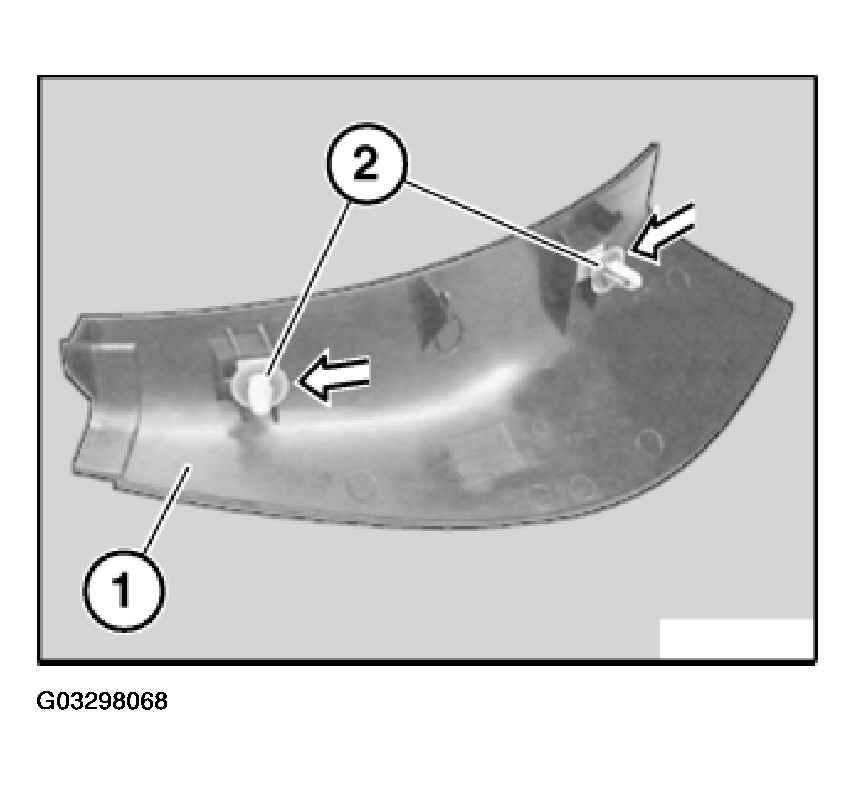

Fig 2: Attaching Clips (2) Before Installation Of Side Trim (1)

Courtesy of BMW OF NORTH AMERICA, INC.
