51 16 367 Removing and installing right glovebox with housing (with active knee protection)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317
WARNING:
Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Disconnect battery negative lead 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove right glovebox . See 51 16 360 Removing And Installing Right Glovebox (With Active Knee Protection) .

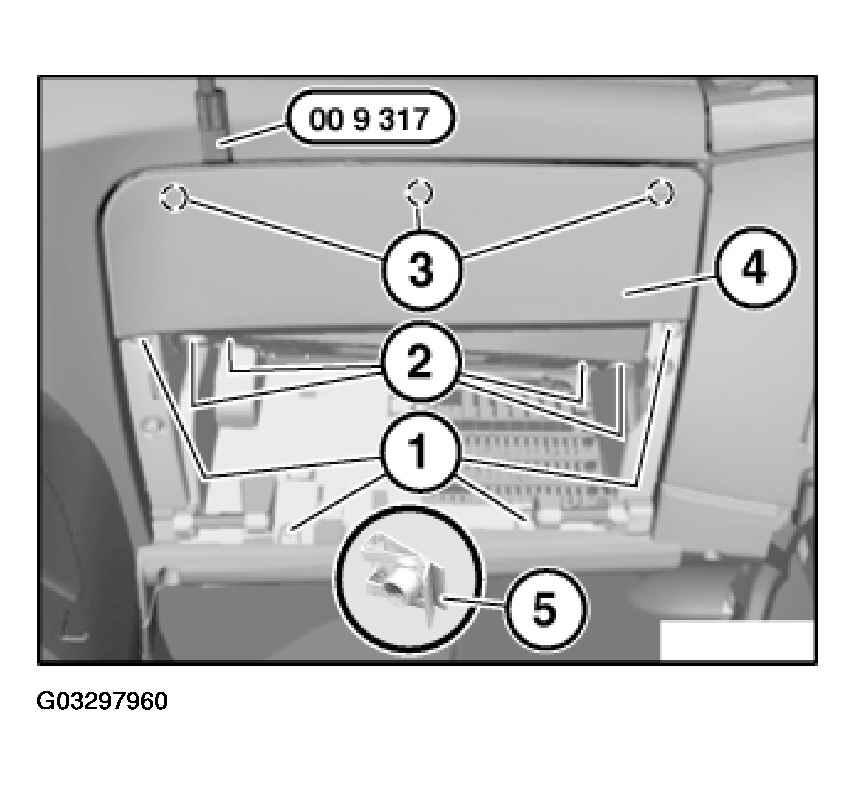

Release screws (1).
Loosen screws (2).
Installation:
Replace screws (2).
NOTE:
Secure right glovebox with housing (4) against falling out.
Lever out right glovebox with housing (4) using special tool 00 9 317 at retaining points (3) and remove.
Unlock and disconnect associated airbag module plug connection for front passenger knee protection.
NOTE:
Do not lose nuts (5) belonging to screws (2), detach if necessary.
Installation:

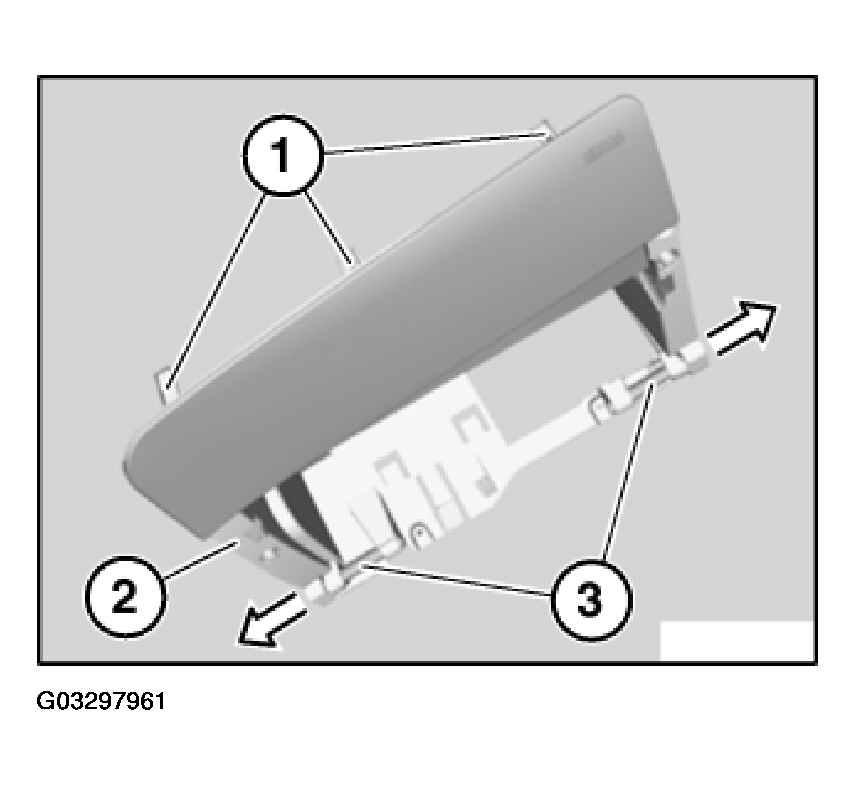

Replace retainers (1).
Make sure retainers (1) of right glovebox with housing (2) are correctly seated in associated mountings.
Replacement:
Remove airbag module for front passenger knee protection. See KNEE AIR BAG MODULES .
If necessary, press both bearing pins (3) in direction of arrow out of right glovebox with housing (2).
