51 16 360 Removing and installing right glovebox (with active knee protection)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open right glovebox (2).

Press locks (1) and continue to fold down right glovebox (2).

Unclip right glovebox (2) at both pivot bearings (3) in direction of arrow and remove.

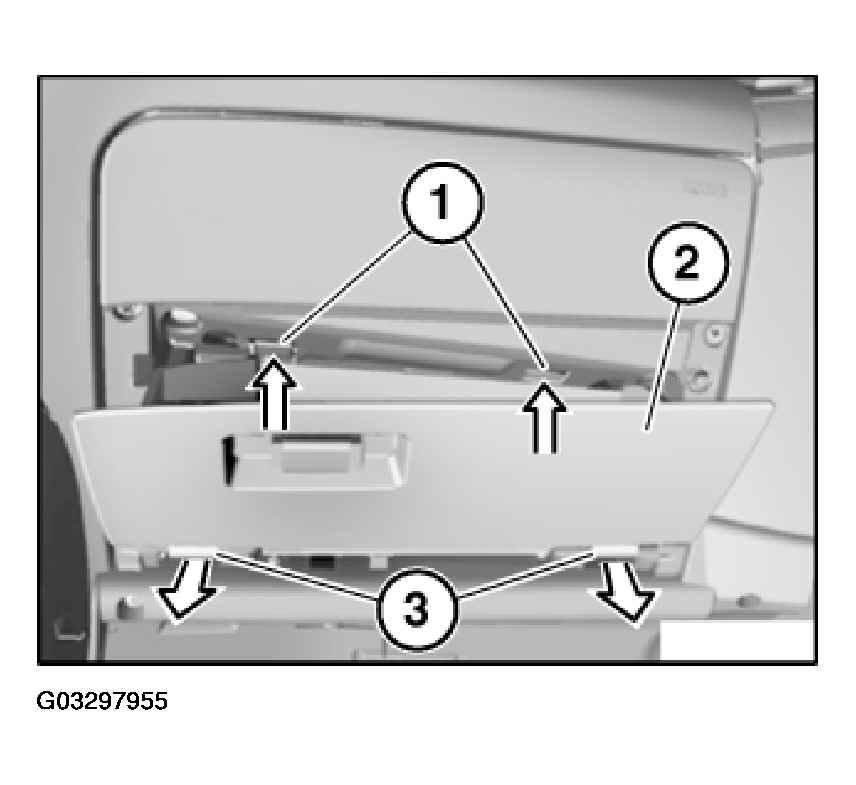

Fig 1: Pressing Locks (1) And Unclipping Right Glovebox (2) At Both Pivot Bearings (3) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
