51 16 040 Replacing left or right outside mirror housing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove 67 13 001 REPLACING DRIVE UNIT FOR ELECTRICALLY OPERATED LEFT OR RIGHT DOOR MIRROR .

Open door window.

Turn door mirror (1) upwards and release screw (2).

Unclip cover (3) and remove.

Installation:

Tightening torque, see 51 16 9AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

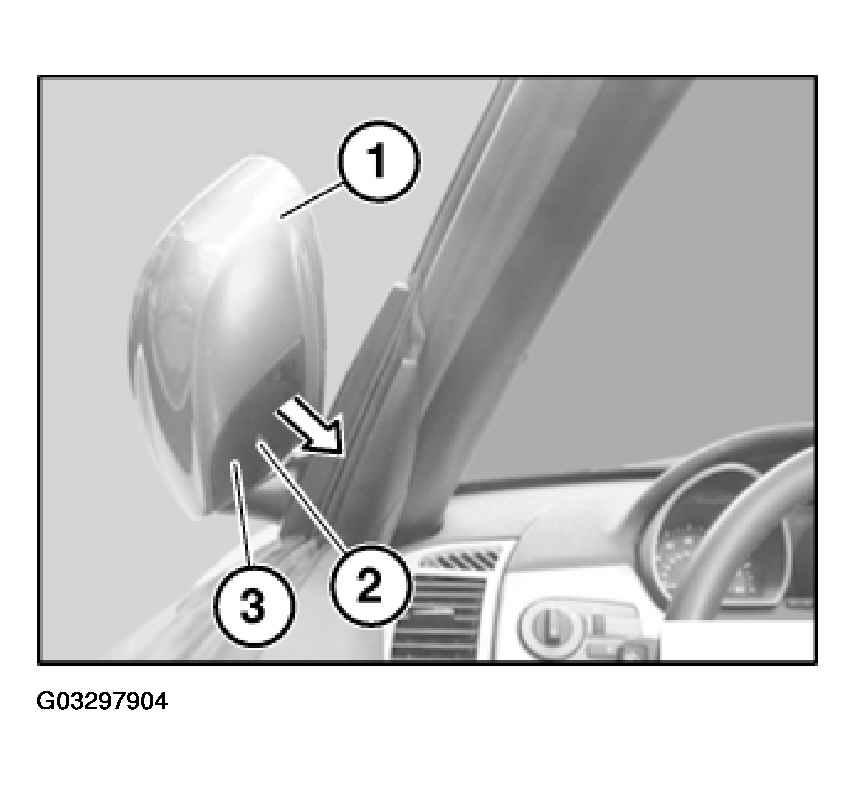

Fig 1: Turning Door Mirror Upwards And Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of cover (2) must not be damaged.

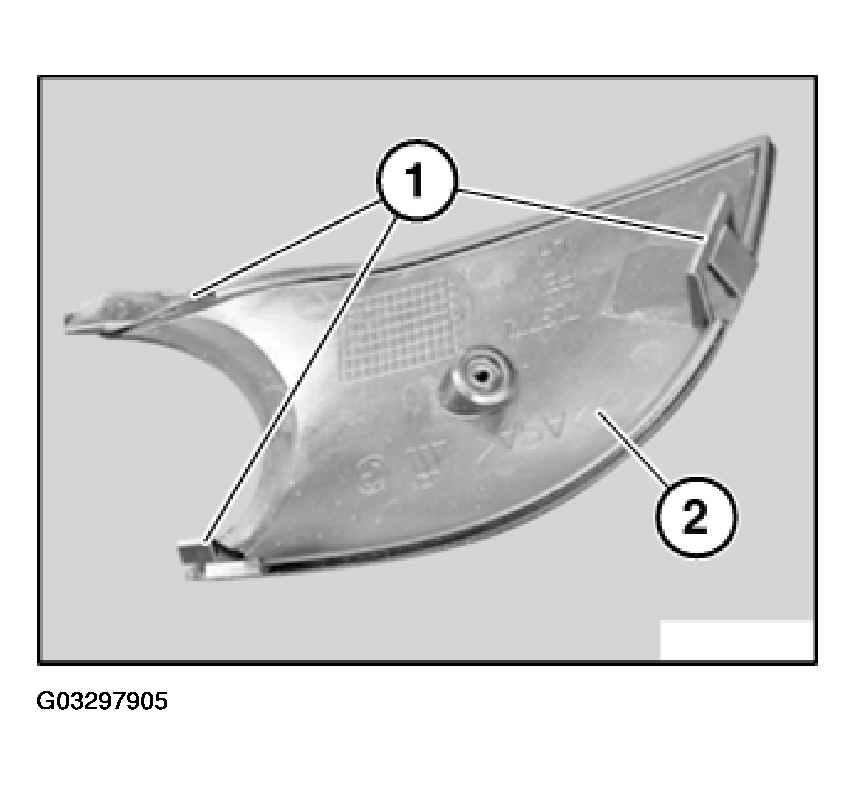

Fig 2: Installing Catches Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Tightening torque, see 51 16 9AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

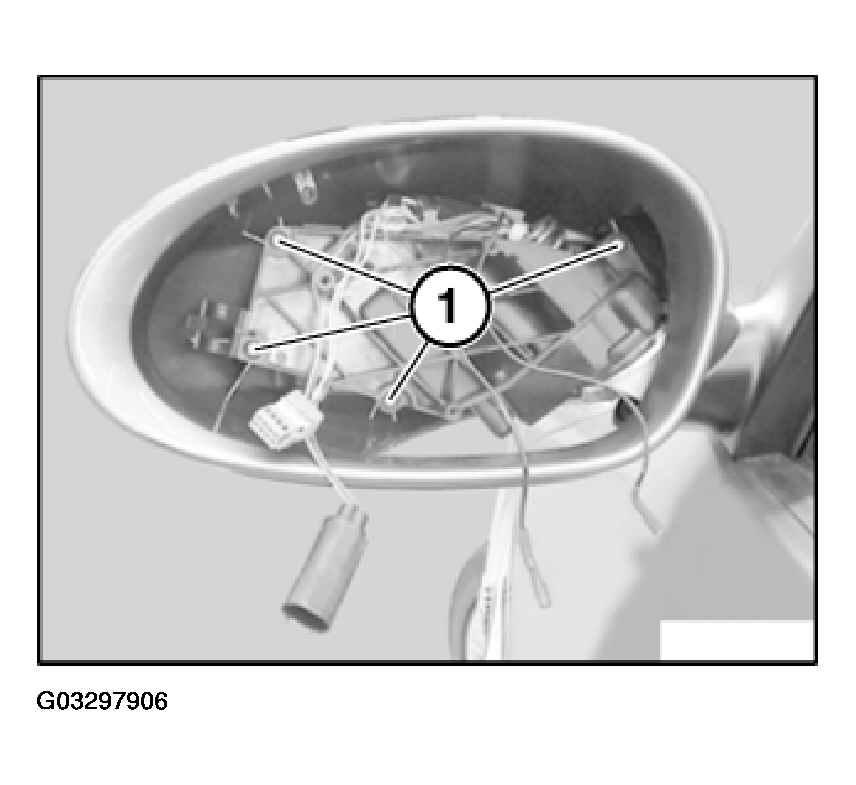

Fig 3: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Removing housing:

Lever out catches (1).
Lever out from mirror base (2).
Feed out from carrier plate (3) and remove.

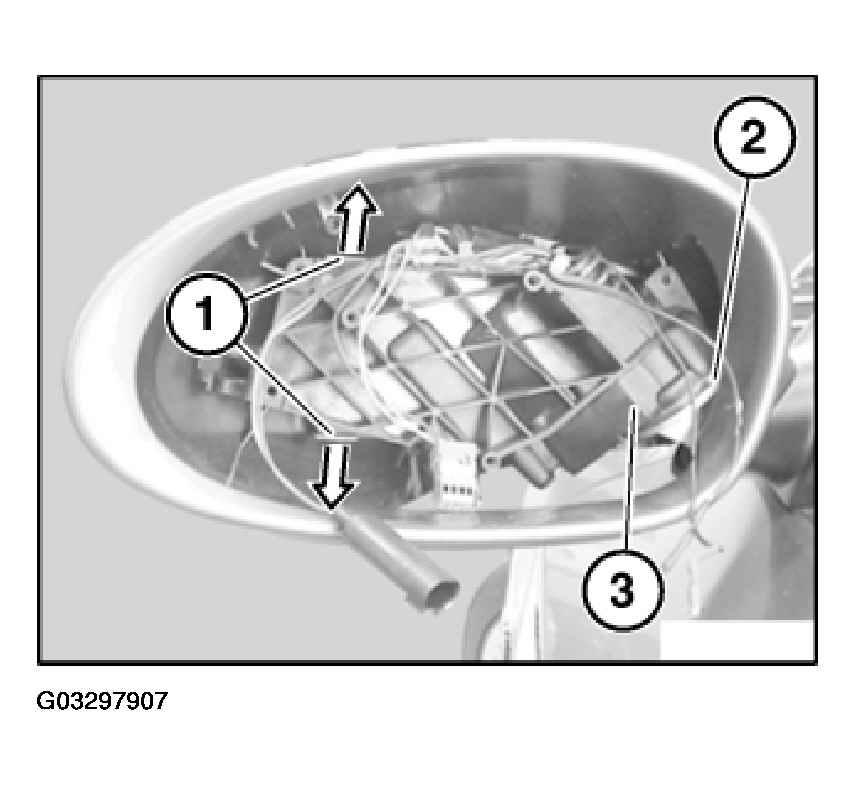

Fig 4: Levering Out Catches
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on housing (4) must not be damaged or missing:

Thread
Catches
Guide

Carry out function check.

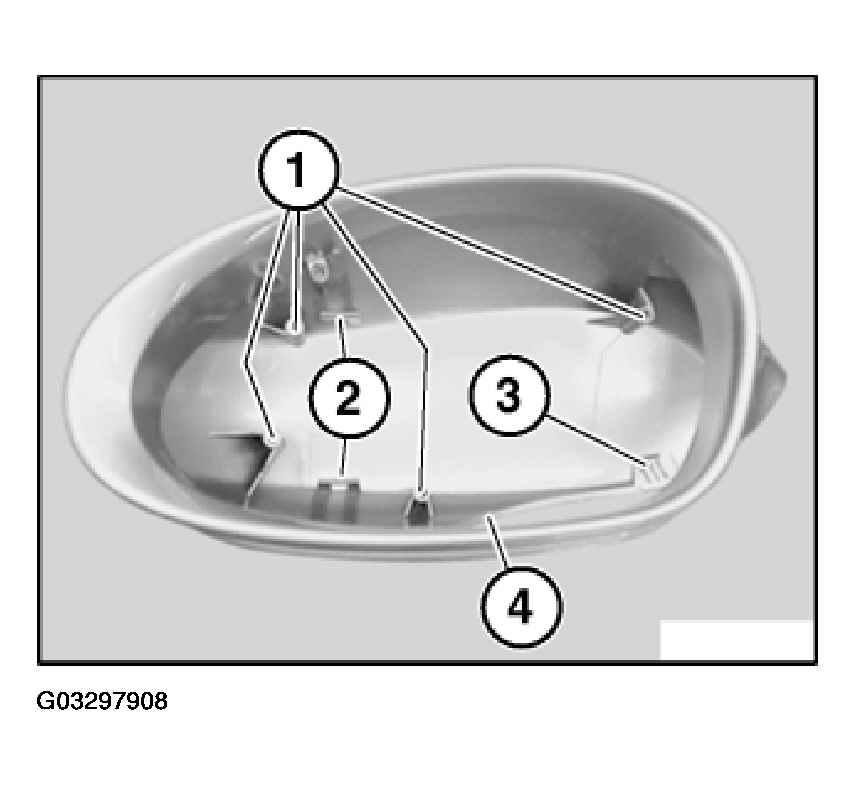

Fig 5: Locating Thread (1) , Catches (2) And Guide (3) On Housing (4)

Courtesy of BMW OF NORTH AMERICA, INC.
