67 13 001 Replacing drive unit for electrically operated left or right door mirror
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove mirror glass for rearview mirror. Refer to 51 16 026 REPLACING MIRROR GLASS .

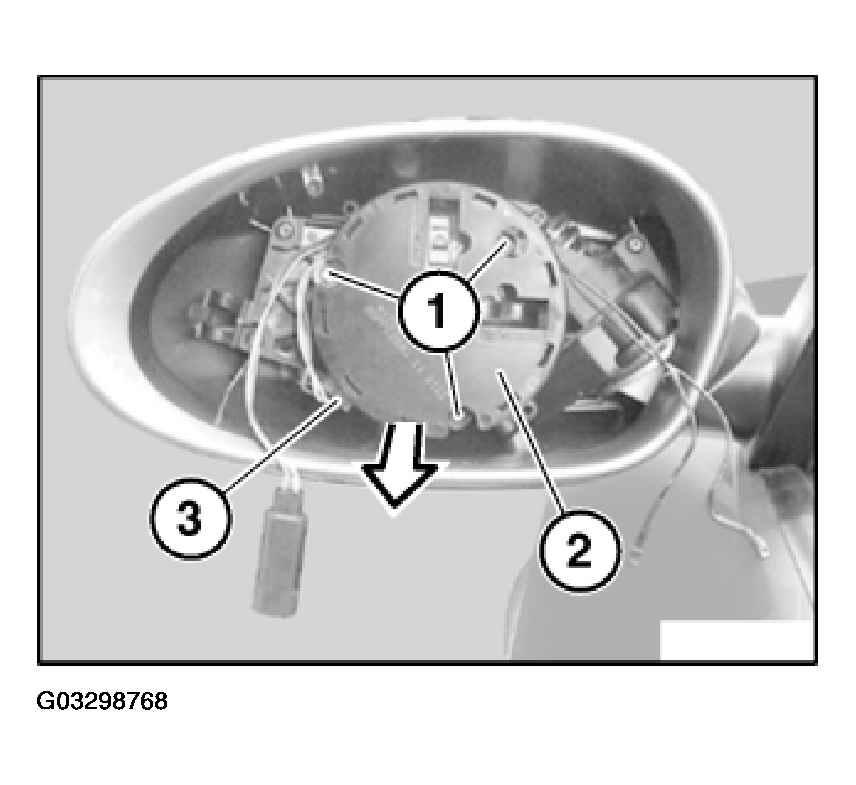

Release screws (1).
Installation:
Tightening torque 1.1 Nm.
Remove drive unit for electrically operated door mirror (2) slightly in direction of arrow.
Unfasten plug connection (3) and disconnect.
Remove drive for electrically adjustable door mirror (2).
