51 21 310 Removing and installing/replacing window cavity cover strip on front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open complete door window glass.
Remove Front Door Trim Panel .

NOTE: Window cavity cover strip comes in one part for outside (4) and inside (2).

Detach cover (1) from front door.

Detach inner window cavity cover strip (2) from retainers (3) towards top.

Detach outer window cavity cover strip (4) from outer door panel towards inside/top.

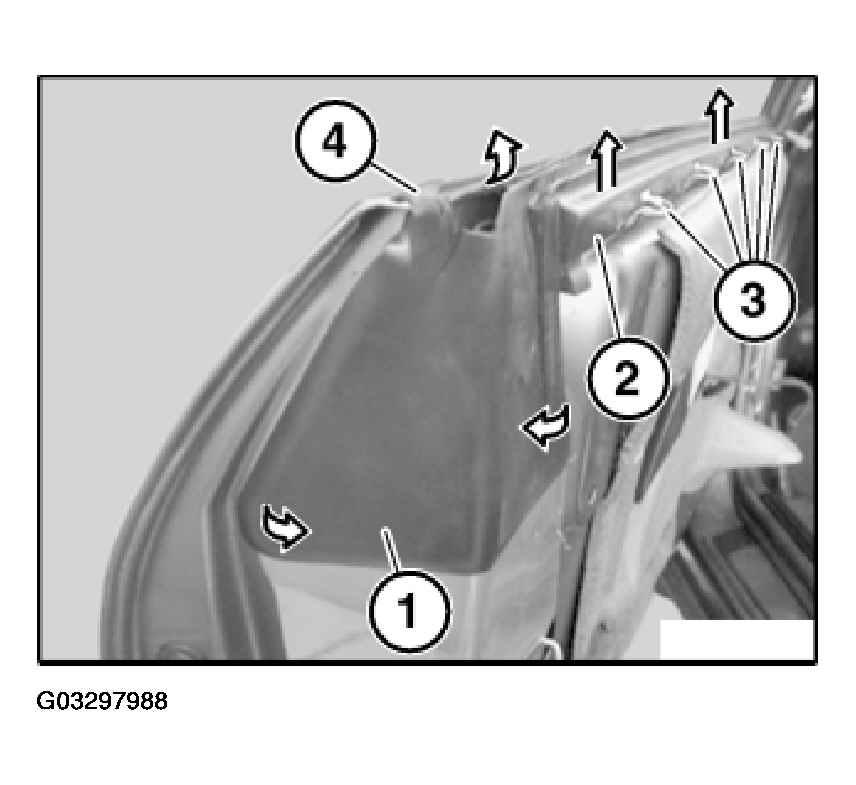

Fig 1: Detaching Outer Window Cavity Cover Strip From Outer Door Panel Toward Inside/Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

NOTE: When removing door window glass, close the glass to dimension (A).

A = approx. 110 mm

Installation:

If necessary, detach faulty retainers (1) from inner door panel and replace.

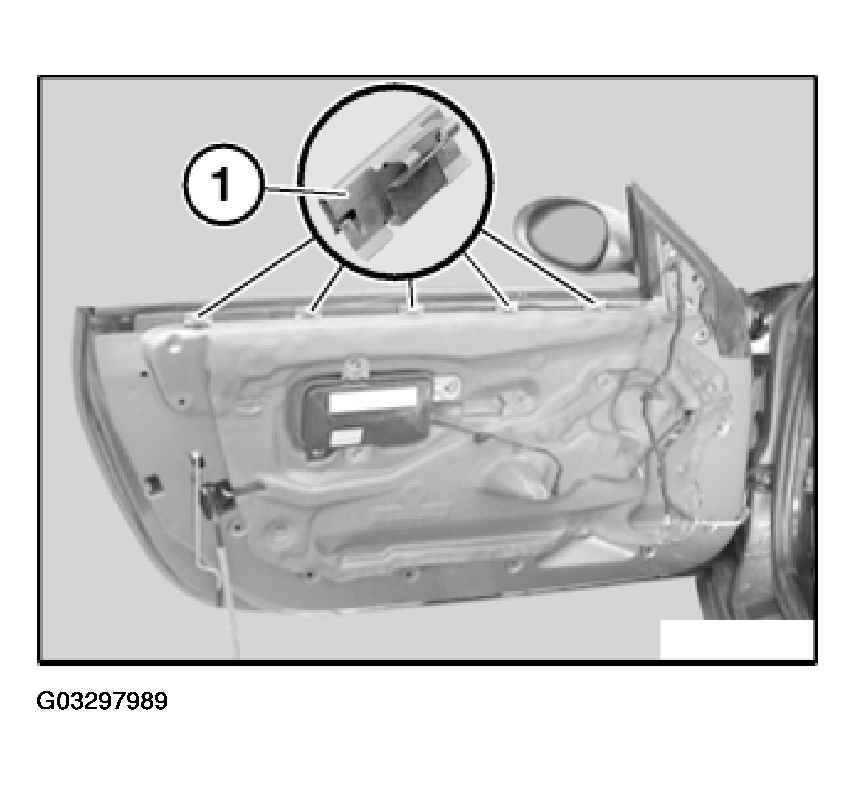

Fig 2: Detaching Faulty Retainers From Inner Door Panel
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of window cavity cover strip (6) must not be damaged or missing:

Catches
Inner window cavity cover strip
Sealing lips
Outer window cavity cover strip
Aluminum strip

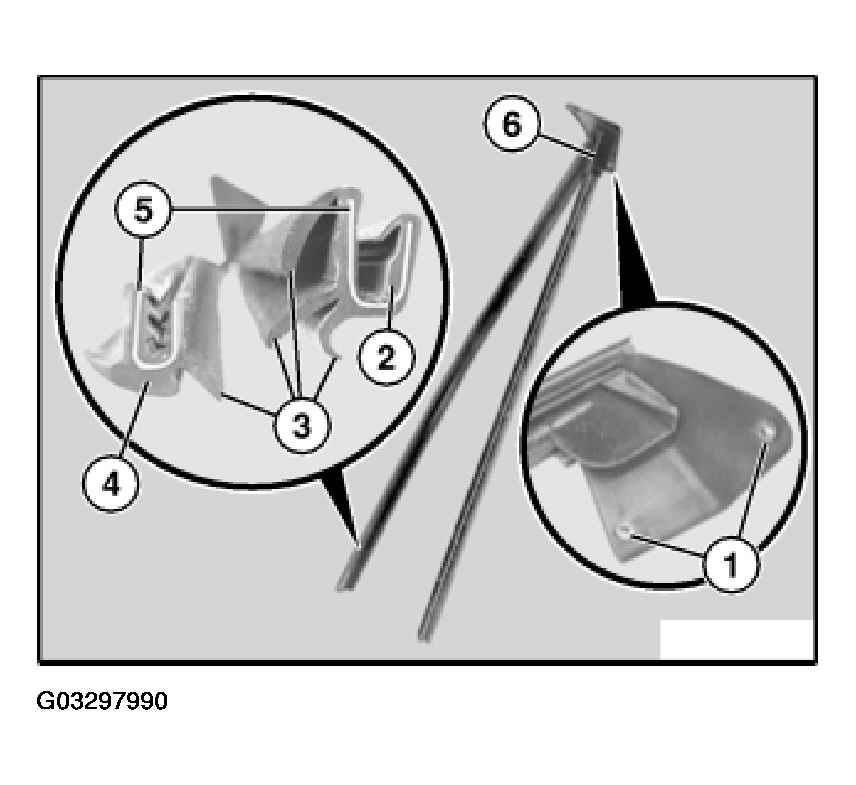

Fig 3: Identifying Parts Of Window Cavity Cover Strip
Courtesy of BMW OF NORTH AMERICA, INC.
